Developer Guide UML diagram

[AdarshChugani]

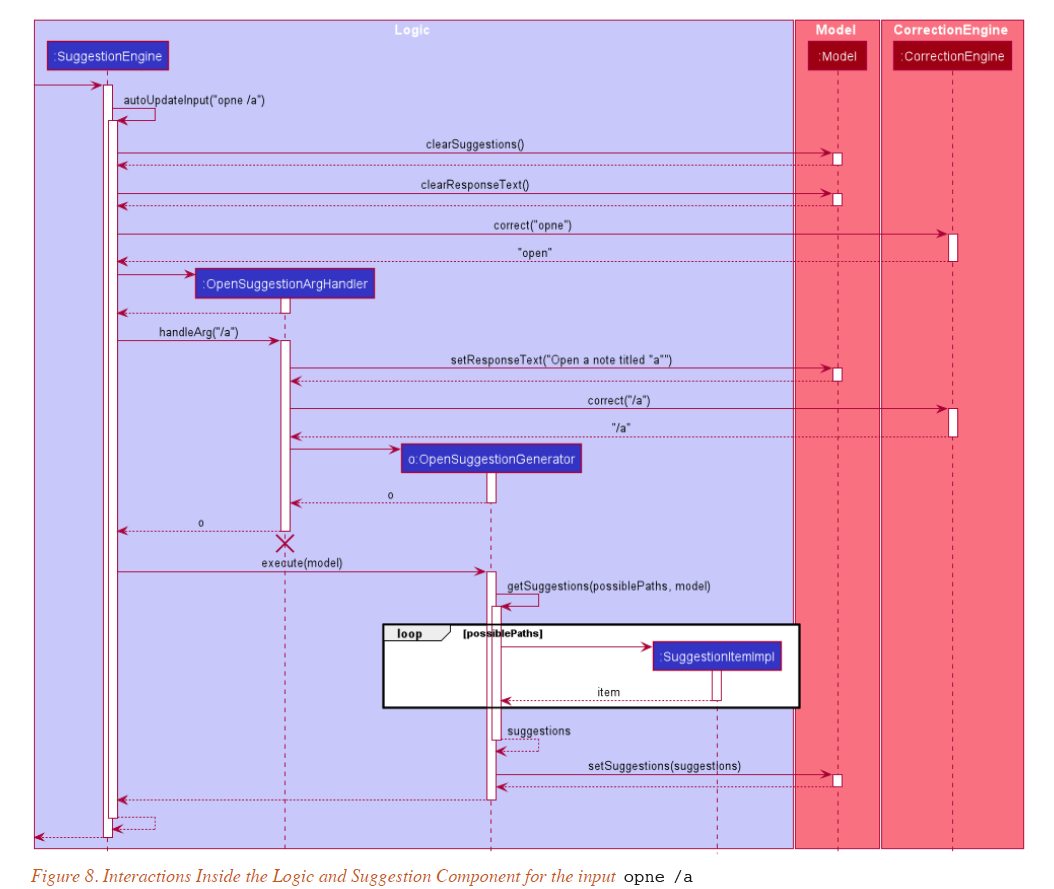

In Figure 8 of the Developer Guide, 2 sections that are next to each other are coloured the same (Model and CorrectionEngine), making reading the diagram slightly confusing.

It would be easier to read if they were coloured differently.

For example,

It would be easier if CorrectionEngine was green or yellow in colour.

[nus-pe-bot]

Team's Response

I did not have a specific reason as to why I used the same colour, but I have labelled the corresponding block correctly and the PUML has formatted it with a padding such that there is no confusion between the Model and CorrectionEngine block. I have also checked with the Prof about this issue in case I was being subjective, and he has given me the approval to reject this bug.

Items for the Tester to Verify

❓ Issue response

Team chose [response.Rejected]

• I disagree

Reason for disagreement: [replace this with your explanation]

---
