Improve noise channel audio #66
Description
Noise channel audio sounds mostly correct but something is a bit off

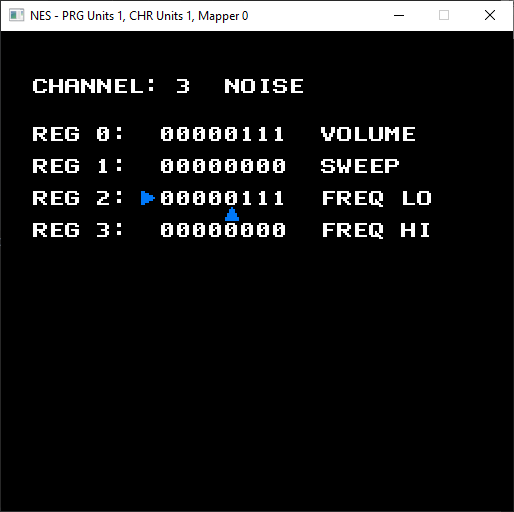

Configured SNDTEST2.NES as follows:
That maps to the lookup table of time period 160 which maps to:
| $87 | 11186.1 Hz | 120.3 Hz | 46.55 | a#, + 55¢ |
|---|
(probably, not sure on the notation used)

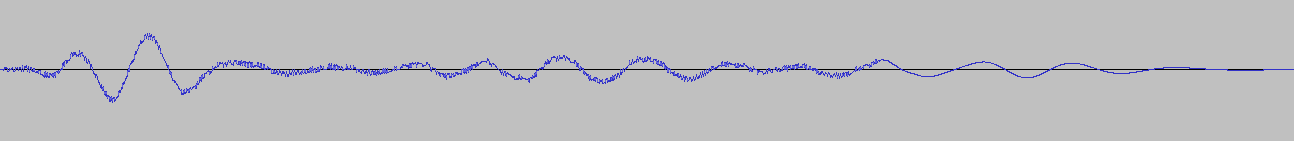

The waveform I generate is
with spectrum
Peaks at 138Hz which is quite far from 120Hz but I'm not sure I understood that pitch table anyway.

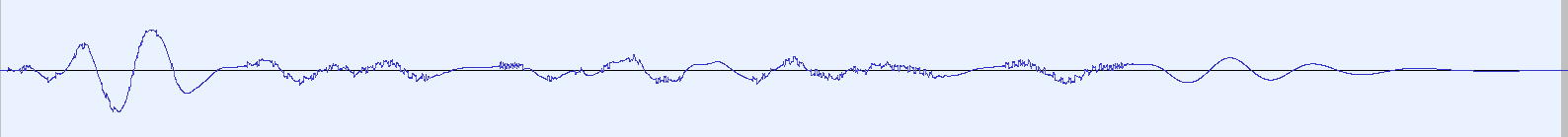

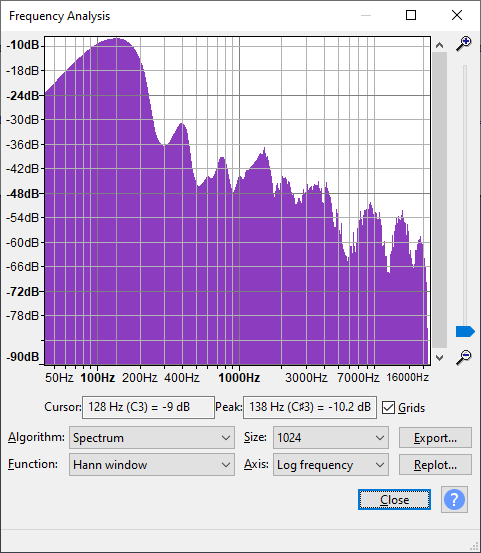

Equivalent in Mesen generates waveform and spectrum as below
which peaks at 138Hz as well so I think I'm happy with that portion
