1+
What's Pyverilog?
2+
==============================
3+
4+
Pyverilog is open-source hardware design processing toolkit for Verilog HDL.
5+
All source codes are written in Python.
6+
7+
Pyverilog includes **(1) code parser, (2) dataflow analyzer, (3) control-flow analyzer and (4) code generator**.
8+
You can create your own design analyzer, code translator and code generator of Verilog HDL based on this toolkit.
9+
10+
11+
Software Requirements
12+
==============================
13+
14+
* Python (2.7, 3.3 or later)
15+
* Icarus Verilog (0.9.6 or later)
16+
- vparser.preprocessor.py uses 'iverilog -E' command instead of the preprocessor.
17+
- 'apt-get install iverilog'
18+
* Graphviz and Pygraphviz (Python3 does not support Pygraphviz)
19+
- graphgen.py in dataflow and controlflow.py in controlflow (without --nograph option) use Pygraphviz with Python 2.7.
20+
- If you do not use graphgen.py and controlflow.py (without --nograph) option, Python 3 is OK.
21+
* Jinja2 (2.7 or later)
22+
- ast\_code\_generator requires jinja2 module.
23+
- 'pip3 install jinja2'
24+
25+
26+
Tools
27+
==============================
28+
29+
This software includes various tools for Verilog HDL design.
30+
31+
* vparser: Code parser to generate AST (Abstract Syntax Tree) from source codes of Verilog HDL.
32+
* dataflow: Dataflow analyzer with an optimizer to remove redundant expressions and some dataflow handling tools.
33+
* controlflow: Control-flow analyzer with condition analyzer that identify when a signal is activated.
34+
* ast\_code\_generator: Verilog HDL code generator from AST.
35+
36+
37+
Getting Started
38+
==============================
39+
40+
First, please prepare a Verilog HDL source file as below. The file name is 'test.v'.
41+
This sample design adds the input value internally whtn the enable signal is asserted. Then is outputs its partial value to the LED.
42+
43+
```verilog
44+
module top
45+
(
46+
input CLK,
47+
input RST,
48+
input enable,
49+
input [31:0] value,
50+
output [7:0] led
51+
);
52+
reg [31:0] count;
53+
reg [7:0] state;
54+
assign led = count[23:16];
55+
always @(posedge CLK) begin
56+
if(RST) begin
57+
count <= 0;
58+
state <= 0;
59+
end else begin
60+
if(state == 0) begin
61+
if(enable) state <= 1;
62+
end else if(state == 1) begin
63+
state <= 2;
64+
end else if(state == 2) begin
65+
count <= count + value;
66+
state <= 0;
67+
end
68+
end
69+
end
70+
endmodule
71+
```
72+
73+
Code parser
74+
------------------------------
75+
76+
Let's try syntax analysis. Please type the command as below.
77+
78+
```
79+
python3 pyverilog/vparser/parser.py test.v
80+
```
81+
82+
Then you got the result as below. The result of syntax analysis is displayed.
83+
84+
```
85+
Source:
86+
Description:
87+
ModuleDef: top
88+
Paramlist:
89+
Portlist:
90+
Ioport:
91+
Input: CLK, False
92+
Width:
93+
IntConst: 0
94+
IntConst: 0
95+
Ioport:
96+
Input: RST, False
97+
Width:
98+
IntConst: 0
99+
IntConst: 0
100+
Ioport:
101+
Input: enable, False
102+
Width:
103+
IntConst: 0
104+
IntConst: 0
105+
Ioport:
106+
Input: value, False
107+
Width:
108+
IntConst: 31
109+
IntConst: 0
110+
Ioport:
111+
Output: led, False
112+
Width:
113+
IntConst: 7
114+
IntConst: 0
115+
Decl:
116+
Reg: count, False
117+
Width:
118+
IntConst: 31
119+
IntConst: 0
120+
Decl:
121+
Reg: state, False
122+
Width:
123+
IntConst: 7
124+
IntConst: 0
125+
Assign:
126+
Lvalue:
127+
Identifier: led
128+
Rvalue:
129+
Partselect:
130+
Identifier: count
131+
IntConst: 23
132+
IntConst: 16
133+
Always:
134+
SensList:
135+
Sens: posedge
136+
Identifier: CLK
137+
Block: None
138+
IfStatement:
139+
Identifier: RST
140+
Block: None
141+
NonblockingSubstitution:
142+
Lvalue:
143+
Identifier: count
144+
Rvalue:
145+
IntConst: 0
146+
NonblockingSubstitution:
147+
Lvalue:
148+
Identifier: state
149+
Rvalue:
150+
IntConst: 0
151+
Block: None
152+
IfStatement:
153+
Eq:
154+
Identifier: state
155+
IntConst: 0
156+
Block: None
157+
IfStatement:
158+
Identifier: enable
159+
NonblockingSubstitution:
160+
Lvalue:
161+
Identifier: state
162+
Rvalue:
163+
IntConst: 1
164+
IfStatement:
165+
Eq:
166+
Identifier: state
167+
IntConst: 1
168+
Block: None
169+
NonblockingSubstitution:
170+
Lvalue:
171+
Identifier: state
172+
Rvalue:
173+
IntConst: 2
174+
IfStatement:
175+
Eq:
176+
Identifier: state
177+
IntConst: 2
178+
Block: None
179+
NonblockingSubstitution:
180+
Lvalue:
181+
Identifier: count
182+
Rvalue:
183+
Plus:
184+
Identifier: count
185+
Identifier: value
186+
NonblockingSubstitution:
187+
Lvalue:
188+
Identifier: state
189+
Rvalue:
190+
IntConst: 0
191+
```
192+
193+
Dataflow analyzer
194+
------------------------------
195+
196+
Let's try dataflow analysis. Please type the command as below.
197+
198+
```
199+
python3 pyverilog/dataflow/dataflow_analyzer.py -t top test.v
200+
```
201+
202+
Then you got the result as below. The result of each signal definition and each signal assignment are displayed.
203+
204+
```
205+
Directive:
206+
Instance:
207+
(top, 'top')
208+
Term:
209+
(Term name:top.led type:{'Output'} msb:(IntConst 7) lsb:(IntConst 0))
210+
(Term name:top.enable type:{'Input'} msb:(IntConst 0) lsb:(IntConst 0))
211+
(Term name:top.CLK type:{'Input'} msb:(IntConst 0) lsb:(IntConst 0))
212+
(Term name:top.count type:{'Reg'} msb:(IntConst 31) lsb:(IntConst 0))
213+
(Term name:top.state type:{'Reg'} msb:(IntConst 7) lsb:(IntConst 0))
214+
(Term name:top.RST type:{'Input'} msb:(IntConst 0) lsb:(IntConst 0))
215+
(Term name:top.value type:{'Input'} msb:(IntConst 31) lsb:(IntConst 0))
216+
Bind:
217+
(Bind dest:top.count tree:(Branch Cond:(Terminal top.RST) True:(IntConst 0) False:(Branch Cond:(Operator Eq Next:(Terminal top.state),(IntConst 0)) False:(Branch Cond:(Operator Eq Next:(Terminal top.state),(IntConst 1)) False:(Branch Cond:(Operator Eq Next:(Terminal top.state),(IntConst 2)) True:(Operator Plus Next:(Terminal top.count),(Terminal top.value)))))))
218+
(Bind dest:top.state tree:(Branch Cond:(Terminal top.RST) True:(IntConst 0) False:(Branch Cond:(Operator Eq Next:(Terminal top.state),(IntConst 0)) True:(Branch Cond:(Terminal top.enable) True:(IntConst 1)) False:(Branch Cond:(Operator Eq Next:(Terminal top.state),(IntConst 1)) True:(IntConst 2) False:(Branch Cond:(Operator Eq Next:(Terminal top.state),(IntConst 2)) True:(IntConst 0))))))
219+
(Bind dest:top.led tree:(Partselect Var:(Terminal top.count) MSB:(IntConst 23) LSB:(IntConst 16)))
220+
```
221+
222+
Let's view the result of dataflow analysis as a picture file. Now we select 'led' as the target. Please type the command as below.
223+
224+
```
225+
python3 pyverilog/dataflow/graphgen.py -t top -s top.led test.v
226+
```
227+
228+

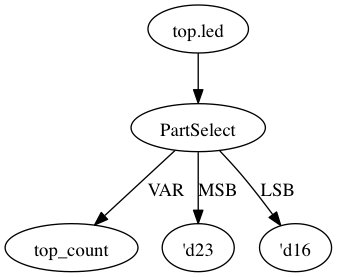

Then you got a png file (out.png). The picture shows that the definition of 'led' is a part-selection of 'count' from 23-bit to 16-bit.
229+
230+
![out.png](http://cdn-ak.f.st-hatena.com/images/fotolife/s/sxhxtxa/20140101/20140101045641.png)
231+
232+
Control-flow analyzer
233+
------------------------------
234+
235+
Let's try control-flow analysis. Please type the command as below.
236+
237+
```
238+
python2.7 pyverilog/controlflow/controlflow_analyzer.py -t top test.v
239+
```
240+
241+
Then you got the result as below. The result shows that the state machine structure and transition conditions to the next state in the state machine.
242+
243+
```
244+
FSM signal: top.count, Condition list length: 4
245+
FSM signal: top.state, Condition list length: 5
246+
Condition: (Ulnot, Eq), Inferring transition condition
247+
Condition: (Eq, top.enable), Inferring transition condition
248+
Condition: (Ulnot, Ulnot, Eq), Inferring transition condition
249+
# SIGNAL NAME: top.state
250+
# DELAY CNT: 0
251+
0 --(top_enable>'d0)--> 1
252+
1 --None--> 2
253+
2 --None--> 0
254+
Loop
255+
(0, 1, 2)
256+
```
257+
258+
You got also a png file (top_state.png). The picture shows that the graphical structure of the state machine.
259+
260+
![top_state.png](http://cdn-ak.f.st-hatena.com/images/fotolife/s/sxhxtxa/20140101/20140101045835.png)
261+
262+
Code generator
263+
------------------------------
264+
265+
Finally, let's try code generation. Please prepare a Python script as below. The file name is 'test.py'.
266+
A Verilog HDL code is represented by using the AST classes defined in 'vparser.ast'.
267+
268+
```python
269+
import pyverilog.vparser.ast as vast
270+
from pyverilog.ast_code_generator.codegen import ASTCodeGenerator
271+
272+
params = vast.Paramlist(())
273+
clk = vast.Ioport( vast.Input('CLK') )
274+
rst = vast.Ioport( vast.Input('RST') )
275+
width = vast.Width( vast.IntConst('7'), vast.IntConst('0') )
276+
led = vast.Ioport( vast.Output('led', width=width) )
277+
ports = vast.Portlist( (clk, rst, led) )
278+
items = ( vast.Assign( vast.Identifier('led'), vast.IntConst('8') ) ,)
279+
ast = vast.ModuleDef("top", params, ports, items)
280+
281+
codegen = ASTCodeGenerator()
282+
rslt = codegen.visit(ast)
283+
print(rslt)
284+
```
285+
286+
Please type the command as below at the same directory with Pyverilog.
287+
288+
```
289+
python3 test.py
290+
```
291+
292+
Then Verilog HDL code generated from the AST instances is displayed.
293+
294+
```verilog
295+
296+
module top
297+
(
298+
input [0:0] CLK,
299+
input [0:0] RST,
300+
output [7:0] led
301+
302+
);
303+
assign led = 8;
304+
endmodule
305+
306+
```
307+
308+
309+
Related Project and Site
310+
==============================
311+
312+
[PyCoRAM](http://shtaxxx.github.io/PyCoRAM/)
313+
- Python-based Implementation of CoRAM Memory Architecture for AXI4 Interconnection on FPGAs
314+
315+
[shtaxxx.hatenablog.com](http://shtaxxx.hatenablog.com/entry/2014/01/01/045856)
316+
- Blog entry for introduction and examples of Pyverilog (in Japansese)
317+
318+
319+
License
320+
==============================
321+
322+
Apache License 2.0
323+
(http://www.apache.org/licenses/LICENSE-2.0)
324+
325+
This software package includes PLY-3.4.
326+
The license of PLY is BSD.
327+
328+
329+
Copyright and Contact
330+
==============================
331+
332+
Copyright (C) 2013, Shinya Takamaeda-Yamazaki
333+
334+
E-mail: takamaeda\_at\_arch.cs.titech.ac.jp
335+

‎vparser/Makefile

Lines changed: 1 addition & 1 deletion
Original file line numberDiff line numberDiff line change
@@ -1,4 +1,4 @@
1-
PYTHON = python3.3
1+
PYTHON = python3
22
#OPT=-m pdb
33

44
PREPROCESS=preprocessor.py

0 commit comments

Comments
 (0)
