INMP441 not working

[icedifferent]

hello, Thank you for your open source.

board : esp32 wroom
microphone: INMP441

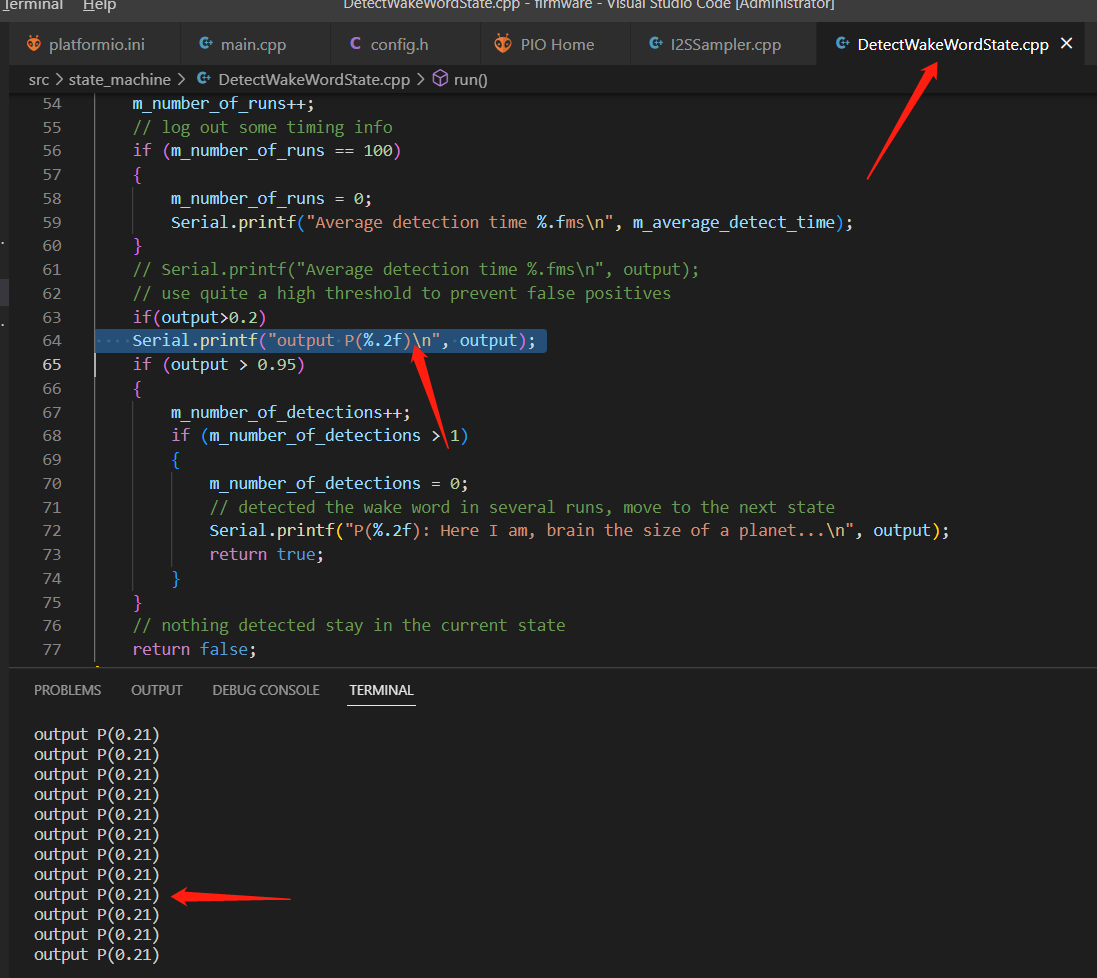

I complie this code to my esp32, but i find the predict output alway is 0.21 when i say Marvin.

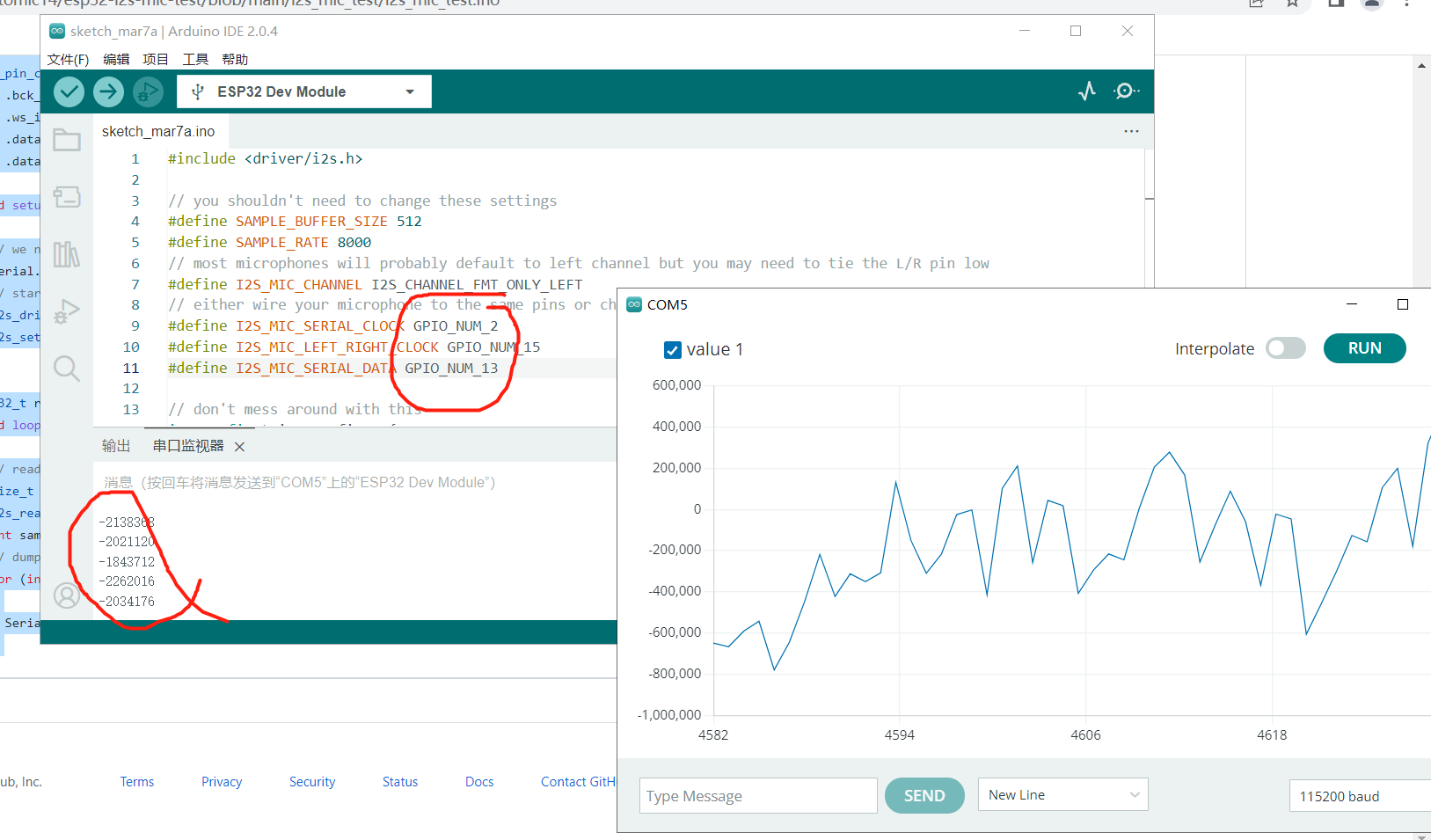

so i try to test my microphone using your i2s_mic_test code , i think this microphone is working.

https://github.com/atomic14/esp32-i2s-mic-test/blob/main/i2s_mic_test/i2s_mic_test.ino

so how can i find where is go wrong?

[sarasqz]

Hello, I've been facing the exact same issue. Did you happen to find a solution for this?

[Domnide]

I am having the same issue can anyone please help me? Except i used the given pin config in the vs code.

[sarasqz]

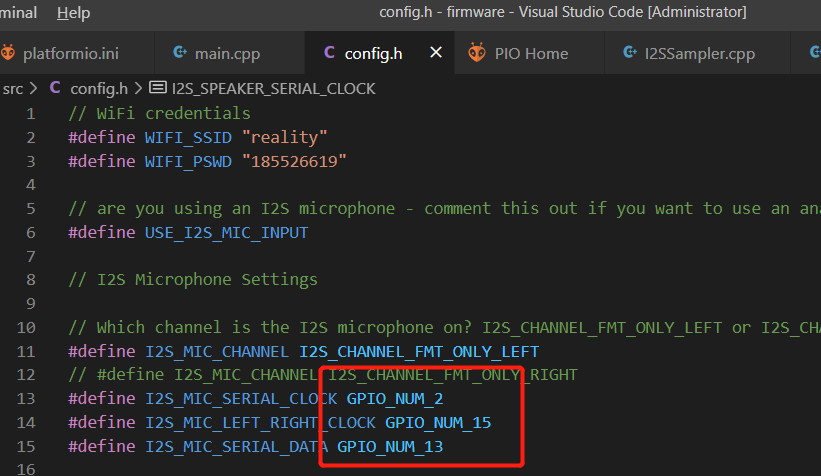

Keep everything the same but try changing the channel the mic is using in the config.h file. so it should be "#define I2S_MIC_CHANNEL I2S_CHANNEL_FMT_ONLY_RIGHT". Hopefully it works

[Domnide]

Keep everything the same but try changing the channel the mic is using in the config.h file. so it should be "#define I2S_MIC_CHANNEL I2S_CHANNEL_FMT_ONLY_RIGHT". Hopefully it works
It's still the same. thanks for the help though, Appreciate your efforts Sir

[Domnide]

@sarasqz Thank you very much for the help
It is working but the thing is if we keep the access-token same it works fine but if we try to change the access-token for wit.ai with ours then it starts to give the trouble. I'll let you know if I find something new.
