Benchmark: MLX on analytical (non-ML) workloads - 6 TPC-H queries on M4

[sadopc]

Hi MLX Team,

I wanted to share results from a research project benchmarking MLX on analytical database workloads - a use case outside the typical ML/deep learning focus.

The project, Unified-DB-2, runs 6 TPC-H queries across three execution paths on Apple M4: DuckDB SQL, NumPy CPU kernels, and MLX GPU kernels. The goal was to quantify the unified memory advantage for GPU-accelerated analytics.

Key findings

• MLX achieved 1.3x-3.1x speedups over NumPy CPU kernels using identical algorithms (Q1: 3.06x, Q6: 1.89x at SF1; Q1: 3.03x, Q6: 2.17x at SF10), confirming the GPU advantage scales with data size.
• A custom GPU-optimized query (QX) showed MLX beating DuckDB by 1.59x at SF1 and NumPy by 16x - demonstrating strong potential when the workload is pure parallel arithmetic with scatter-add aggregation.
• mx.array() from NumPy operates at ~120 GB/s unified memory bandwidth (a copy, not zero-copy), which still vastly outperforms the 25-50 GB/s PCIe path on discrete GPU systems.
• DuckDB's optimized C++ engine beat MLX on all 6 standard TPC-H queries - but this comparison is deliberately unfair (production SQL optimizer vs hand-written Python-orchestrated kernels). The NumPy-vs-MLX comparison is the fair one.

MLX limitations encountered and workarounds

During development I hit several MLX constraints and documented workarounds that may be useful to others:

Limitation	Workaround
No boolean fancy indexing (array[bool_mask])	mx.where(mask, value, zero) + overflow bin pattern
No argwhere / nonzero	Convert to NumPy: np.where(np_array > 0)[0]
mx.array(numpy) is a copy, not zero-copy	Per-column loading + eager del to minimize peak memory
Float32 only (no float64)	0.1% tolerance for aggregate validation; ~0.03-0.08% error at SF1
No lexsort for multi-key sorting	Fallback to NumPy for Q3 (revenue DESC, orderdate ASC)

The overflow bin pattern was particularly effective: masked-out rows are routed to a discard group at index N during scatter-add, then sliced off with [:N]. This avoids boolean indexing entirely while keeping the computation fully on GPU.

Charts

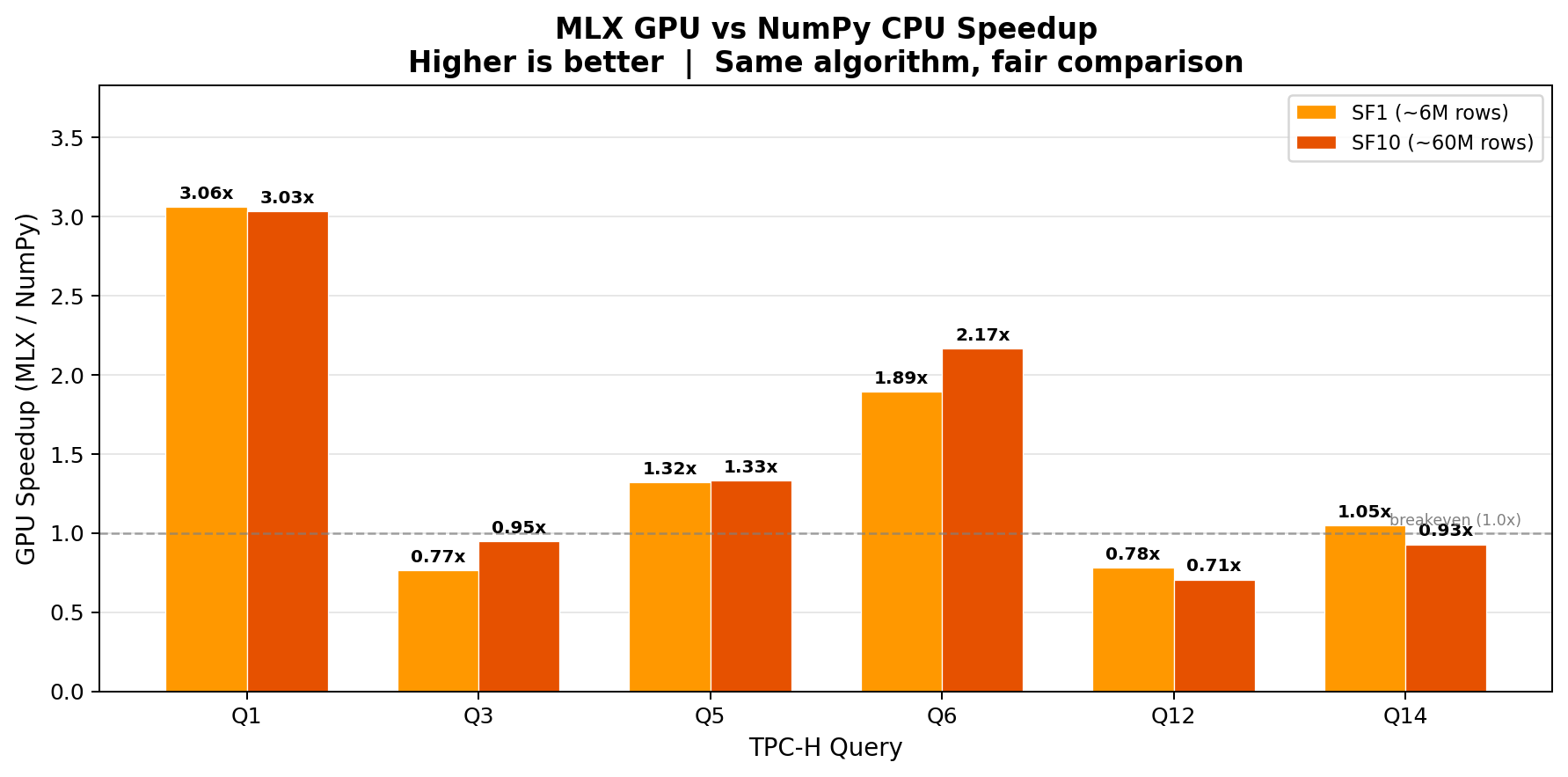

MLX GPU vs NumPy CPU speedup (higher is better):

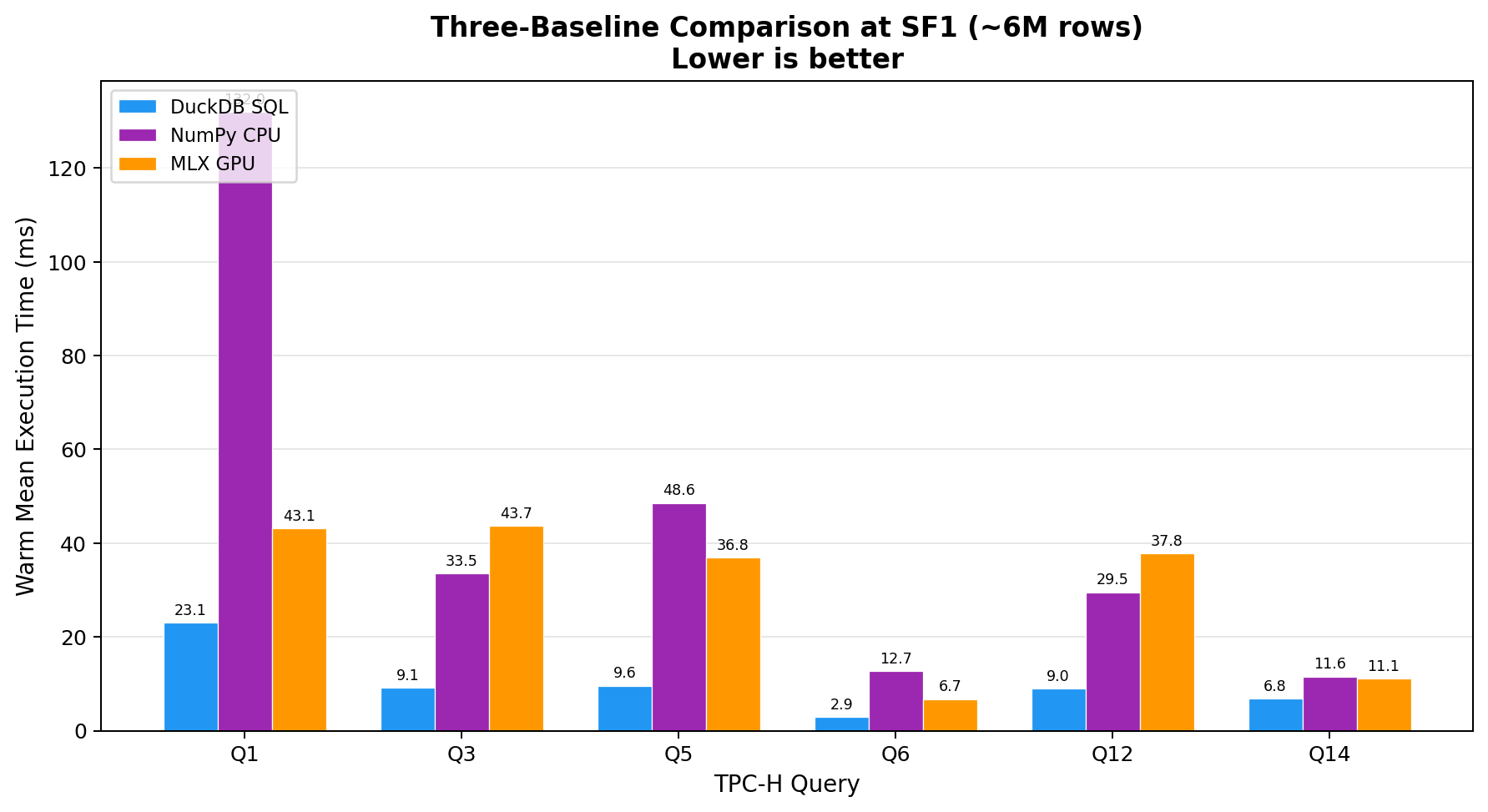

Three-baseline comparison at SF1 (lower is better):

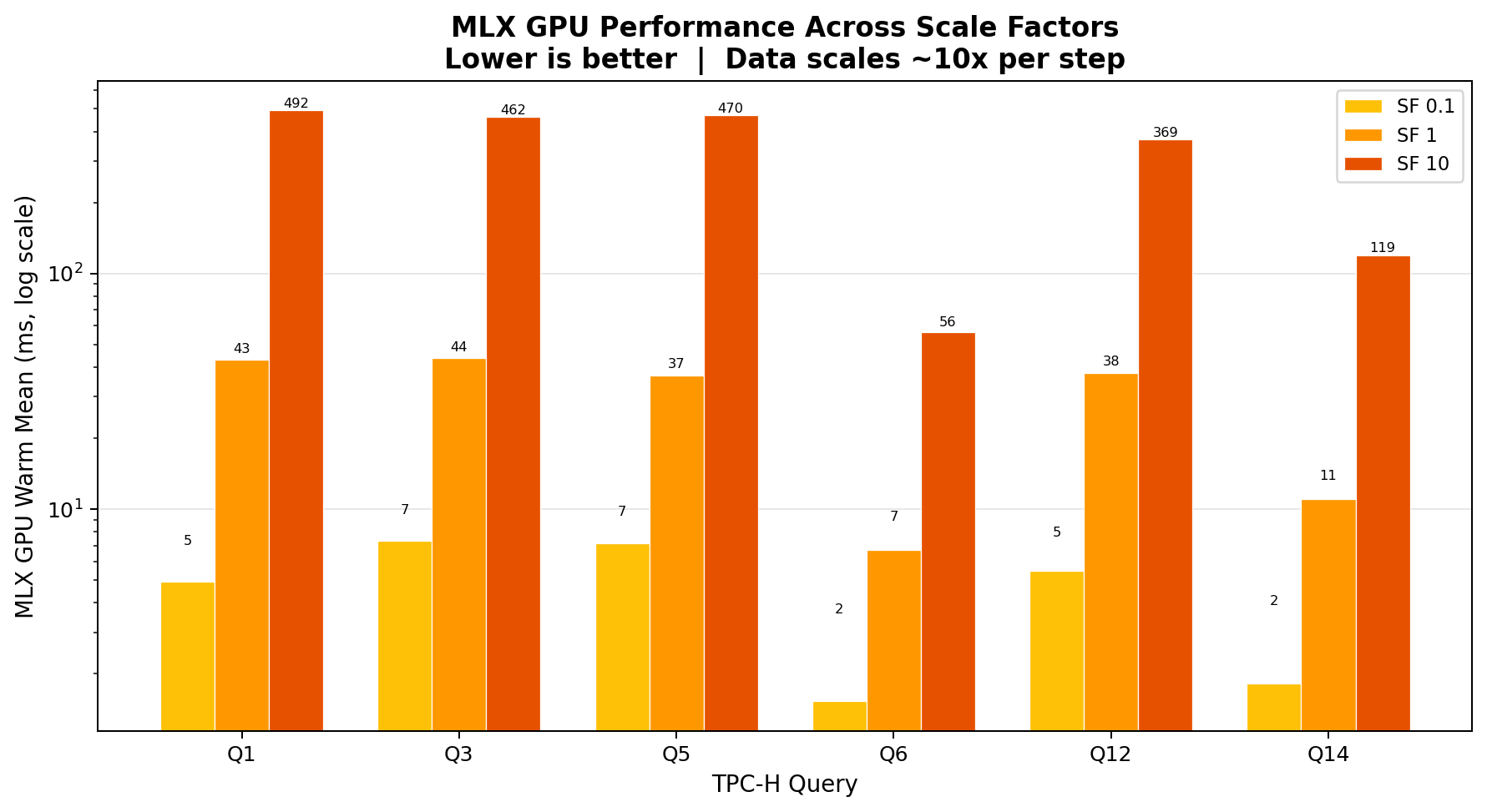

MLX scaling across data sizes (lower is better):

Links

• Repository: https://github.com/sadopc/unified-db-2
• Full paper: https://github.com/sadopc/unified-db-2/blob/main/PAPER.md
• All code is open source (MIT). The benchmark suite runs end-to-end with uv run python scripts/run_all.py.

Happy to discuss any of the findings, methodology, or MLX workarounds.
