Mulei Message Service

A high-performance, highly available multi-channel message service built with Go. Supports SMS (Aliyun, Tencent Cloud, Zrwinfo), Email, WeChatWork, DingTalk and more. Features an intelligent rule engine for automatic retry and provider switching on failures, combined with provider callback processing to ensure reliable message delivery. Includes enterprise-grade features such as async queue processing, circuit breaker, rate limiting, quota management, and a comprehensive admin dashboard.

中文文档

Features

• Multi-Channel Support - SMS, Email, WeChatWork, DingTalk, Webhook
• Multiple SMS Providers - Aliyun, Tencent Cloud, Zrwinfo with automatic failover
• Async Processing - Redis Stream based message queue with worker pool
• High Availability - Circuit breaker pattern, smooth weighted round-robin load balancing
• Rule Engine - Flexible failure handling rules with customizable actions
• Provider Auto-Switching - Automatically switch to alternative providers on failure
• Callback Processing - Handle provider status callbacks with webhook notifications
• Enterprise Ready - Rate limiting, quota management, retry with exponential backoff
• Flexible Delivery - Single, batch, and scheduled message sending
• Secure API - HMAC-SHA256 signature authentication
• Admin Dashboard - Vue.js + Ant Design based management UI
• Template Engine - Reusable message templates with variable substitution

Supported Providers

Channel	Provider	Features
SMS	Aliyun SMS	Domestic & International
SMS	Tencent Cloud SMS	Domestic & International
SMS	Zrwinfo	Domestic
Email	SMTP	Standard SMTP protocol
IM	WeChatWork	Application messages
IM	DingTalk	Robot messages

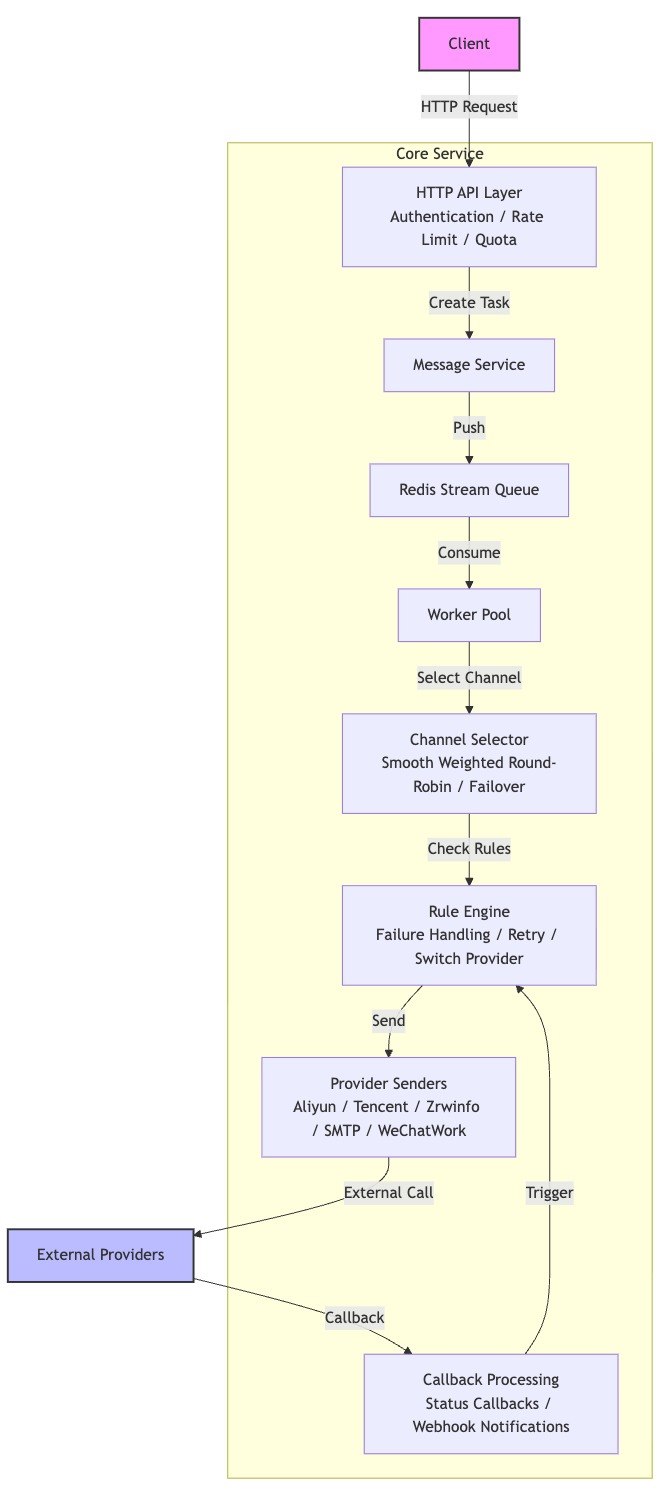

Architecture

┌─────────────────────────────────────────────────────────────────┐
│                        HTTP API Layer                           │
│              (Authentication / Rate Limit / Quota)              │
├─────────────────────────────────────────────────────────────────┤
│                      Message Service                            │
│                (Create Task → Push to Queue)                    │
├─────────────────────────────────────────────────────────────────┤
│                      Redis Stream Queue                         │
├─────────────────────────────────────────────────────────────────┤
│                       Worker Pool (N)                           │
│              (Consume → Process → Send → Update)                │
├─────────────────────────────────────────────────────────────────┤
│                     Channel Selector                            │
│            (Smooth Weighted Round-Robin / Failover)             │
├─────────────────────────────────────────────────────────────────┤
│                        Rule Engine                              │
│         (Failure Handling / Retry / Switch Provider)            │
├─────────────────────────────────────────────────────────────────┤
│                    Provider Senders                             │
│        (Aliyun / Tencent / Zrwinfo / SMTP / WeChatWork)         │
├─────────────────────────────────────────────────────────────────┤
│                   Callback Processing                           │
│          (Status Callbacks / Webhook Notifications)             │
├─────────────────────────────────────────────────────────────────┤
│                        Rule Engine                              │
│         (Failure Handling / Retry / Switch Provider)            │
└─────────────────────────────────────────────────────────────────┘

Quick Start

Prerequisites

• Go 1.21+
• MySQL 5.7+ or PostgreSQL
• Redis 5.0+

1. Clone and Configure

git clone https://cnb.cool/mliev/push/message-push
cd message-push

# Copy and edit configuration
cp config.yaml.example config.yaml

2. Configure Database

Edit config.yaml:

database:
  host: localhost
  port: 3306
  username: root
  password: your_password
  database: push_service

redis:
  host: localhost
  port: 6379

3. Start Service

# Development
go run main.go

# Or build and run
make build
./bin/push-service

The service will start on http://localhost:8080

4. Verify Installation

# Health check
curl http://localhost:8080/health

# Expected response
{
  "code": 0,
  "message": "success",
  "data": {
    "status": "UP",
    "services": {
      "database": {"status": "UP"},
      "redis": {"status": "UP"}
    }
  }
}

API Usage

Authentication

All API requests require HMAC-SHA256 signature:

Signature = HMAC-SHA256(app_secret, "app_key={app_key}&timestamp={timestamp}")

Headers:

• X-App-Key: Your application key
• X-Timestamp: Unix timestamp
• X-Signature: Generated signature

Send Single Message

curl -X POST http://localhost:8080/api/v1/messages \
  -H "Content-Type: application/json" \
  -H "X-App-Key: your_app_key" \
  -H "X-Timestamp: 1700000000" \
  -H "X-Signature: your_signature" \
  -d '{
    "channel_type": "sms",
    "receiver": "13800138000",
    "template_code": "verify_code",
    "template_params": {
      "code": "123456"
    }
  }'

Send Batch Messages

curl -X POST http://localhost:8080/api/v1/messages/batch \
  -H "Content-Type: application/json" \
  -H "X-App-Key: your_app_key" \
  -H "X-Timestamp: 1700000000" \
  -H "X-Signature: your_signature" \
  -d '{
    "channel_type": "sms",
    "receivers": ["13800138000", "13800138001"],
    "template_code": "promotion",
    "template_params": {
      "activity": "Black Friday"
    }
  }'

Query Task Status

curl http://localhost:8080/api/v1/messages/{task_id} \
  -H "X-App-Key: your_app_key" \
  -H "X-Timestamp: 1700000000" \
  -H "X-Signature: your_signature"

For complete API documentation, see API Guide.

Rule Engine

The Rule Engine provides intelligent failure handling with customizable rules:

Supported Scenes

Scene	Description
send_failure	Triggered when message sending fails
callback_failure	Triggered when provider callback reports failure

Supported Actions

Action	Description
retry	Retry with configurable delay and exponential backoff
switch_provider	Switch to an alternative provider and retry
fail	Mark the task as failed immediately
alert	Send alert notification via webhook

Matching Conditions

Rules can be configured with multiple matching conditions:

• Provider Code - Match specific provider (e.g., aliyun, tencent)
• Message Type - Match message type (e.g., sms, email)
• Error Code - Match specific error codes (supports comma-separated list)
• Error Keyword - Fuzzy match on error message content

Example Rule Configuration

{
  "name": "Retry on network timeout",
  "scene": "send_failure",
  "provider_code": "",
  "message_type": "sms",
  "error_keyword": "timeout,network",
  "action": "retry",
  "action_config": {
    "max_retry": 3,
    "delay_seconds": 5,
    "backoff_rate": 2
  },
  "priority": 100
}

Configuration

Key Configuration Options

# Server settings
server:
  mode: release          # debug, release, test
  addr: ":8080"

# Database
database:
  host: localhost
  port: 3306
  username: root
  password: password
  database: push_service
  max_open_conns: 100
  max_idle_conns: 10

# Redis (message queue)
redis:
  host: localhost
  port: 6379
  password: ""
  db: 0
  pool_size: 10

# JWT (admin authentication)
jwt:
  secret: your-secret-key
  expire_hours: 24

# Rate limiting
rate_limit:
  requests_per_minute: 100
  burst: 10

Project Structure

message-push/
├── main.go                 # Entry point
├── cmd/
│   ├── migrate/           # Database migration tool
│   └── run.go             # Server bootstrap
├── config/
│   ├── config.go          # Configuration loader
│   ├── assembly.go        # Dependency injection
│   └── autoload/          # Auto-loaded configs
├── app/
│   ├── controller/        # HTTP handlers
│   │   └── admin/         # Admin API handlers
│   ├── service/           # Business logic
│   ├── dao/               # Data access layer
│   ├── model/             # Database models
│   ├── dto/               # Data transfer objects
│   ├── middleware/        # HTTP middlewares
│   ├── sender/            # Message senders
│   ├── queue/             # Redis queue (producer/consumer)
│   ├── worker/            # Worker pool
│   ├── selector/          # Channel selector
│   ├── circuit/           # Circuit breaker
│   └── helper/            # Utilities
├── admin-webui/           # Vue.js admin dashboard
├── docs/                  # Documentation
└── deploy/                # Deployment configs

Deployment

Docker Compose

# docker-compose.yml
services:
  mliev-push:
    container_name: mliev-push
    image: docker.cnb.cool/mliev/open/mliev-push:develop
    restart: always
    ports:
      - "8080:8080"
    volumes:
      - "./config/:/app/config/"

docker compose up -d

Kubernetes

kubectl apply -f deploy/kubernetes/

For production deployment guide, see Production Deployment.

Documentation

• Quick Start Guide
• API Guide
• API Integration
• Installation Guide
• Production Deployment
• Project Specification

SDKs

Language	Repository	Description
Go	push-go	Go SDK with context support and comprehensive error handling
PHP	push-php	PHP SDK with PSR-18 HTTP client support

Tech Stack

Component	Technology
Language	Go 1.21+
Web Framework	Gin v1.10
ORM	GORM v1.25
Database	MySQL / PostgreSQL
Cache & Queue	Redis
Configuration	Viper
Logging	Zap
Admin UI	Vue.js + Ant Design Vue

Contributing

1. Fork the repository
2. Create your feature branch (git checkout -b feature/amazing-feature)
3. Commit your changes (git commit -m 'Add amazing feature')
4. Push to the branch (git push origin feature/amazing-feature)
5. Open a Pull Request

Community

QQ Group	WeChat
Group: 1021660914	Scan to join

License

Copyright © 2025 Hefei Muleiwu(Mliev) Information Technology Co., Ltd. All Rights Reserved.

This software is provided under a proprietary license. Free for commercial and non-commercial use with restrictions. You must retain copyright notices and "Powered by" marks. Redistribution of derivative works is prohibited.

See the LICENSE file for complete terms.
