DODO wb does not work in linkstage3

[snelweg]

Drawing a couple of wires and using "insert a branch " as per documentation gives different results in 0.21 and latest Linkstage3.
Same problems with "PipeLineManager ".
It functions in 021

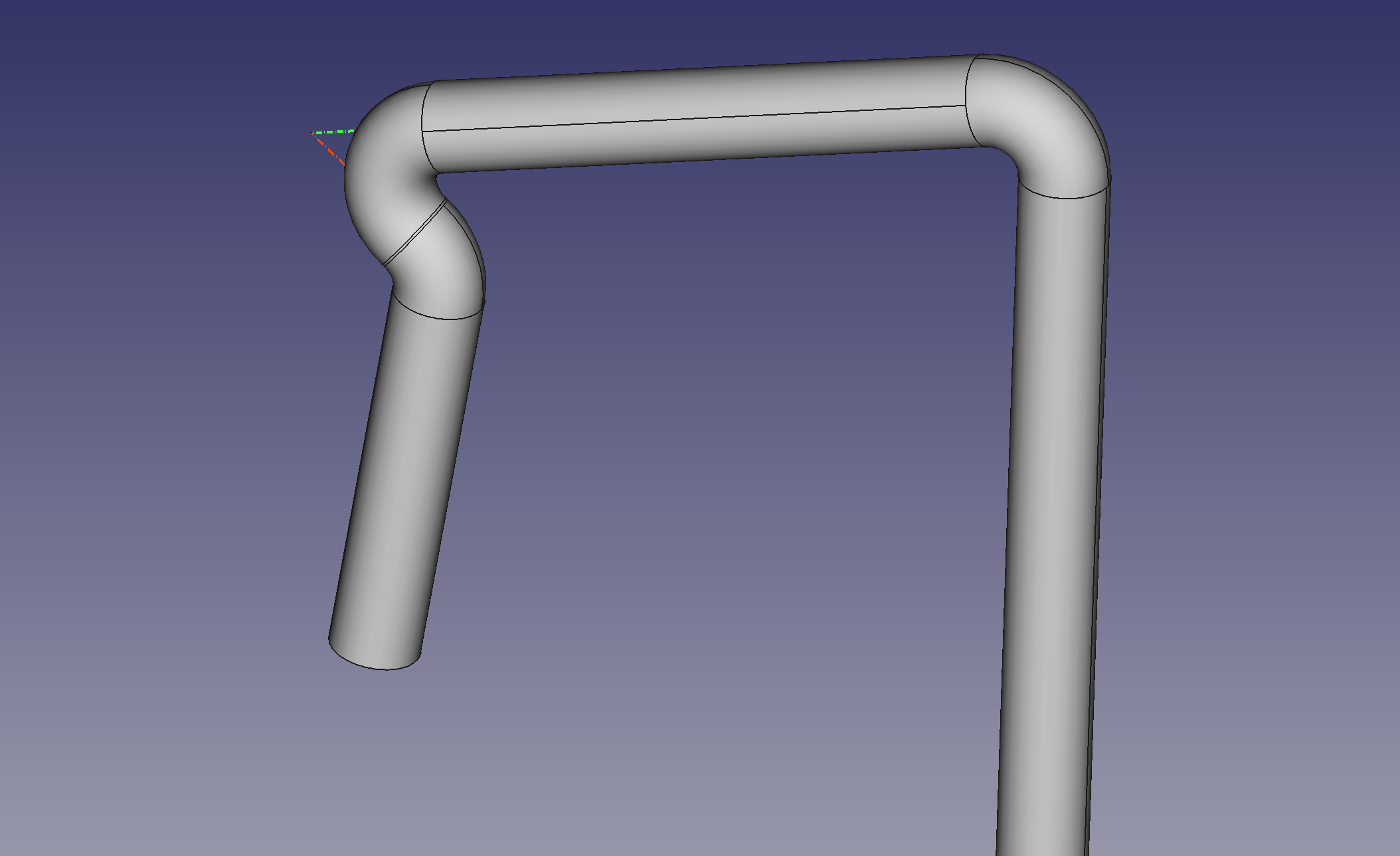

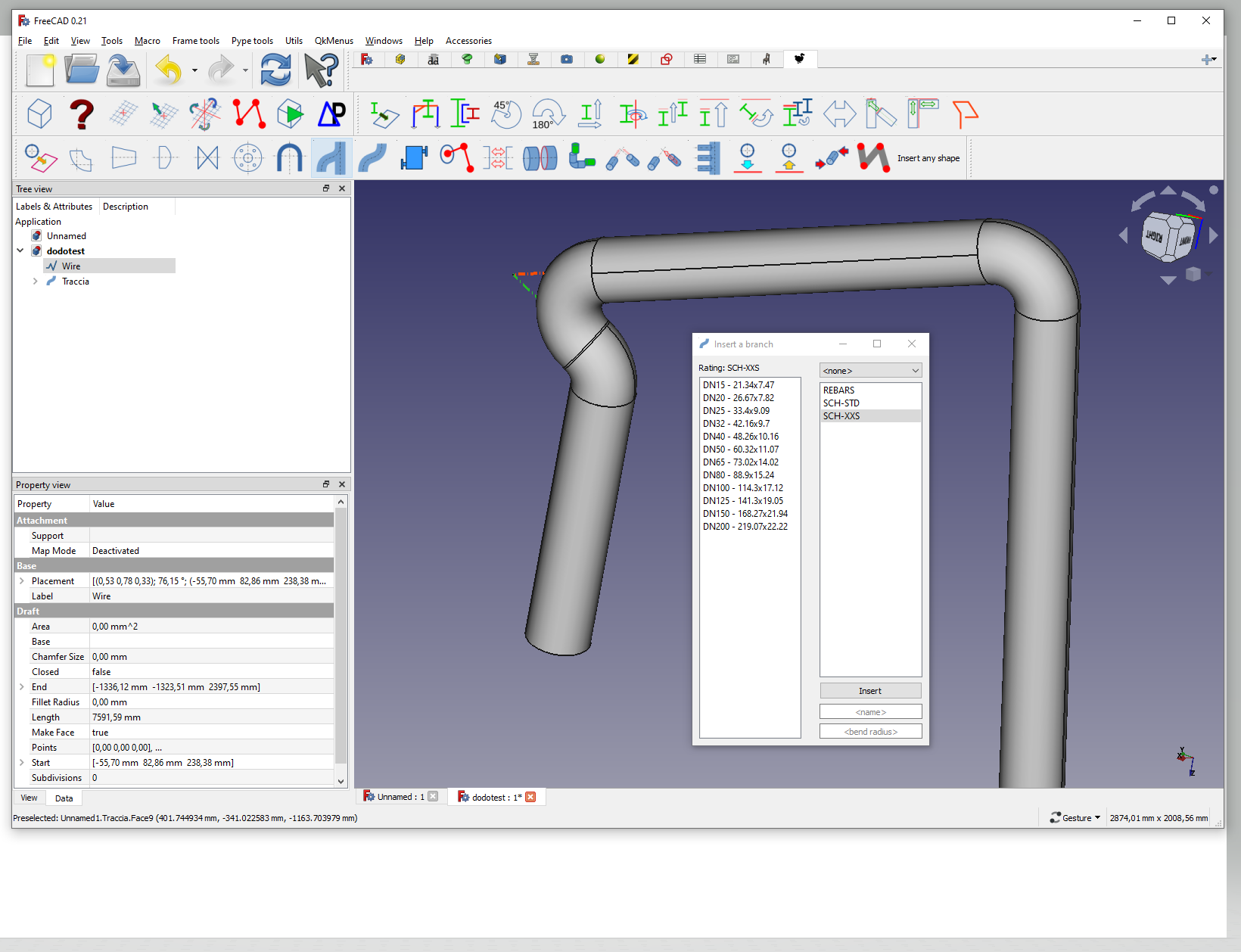

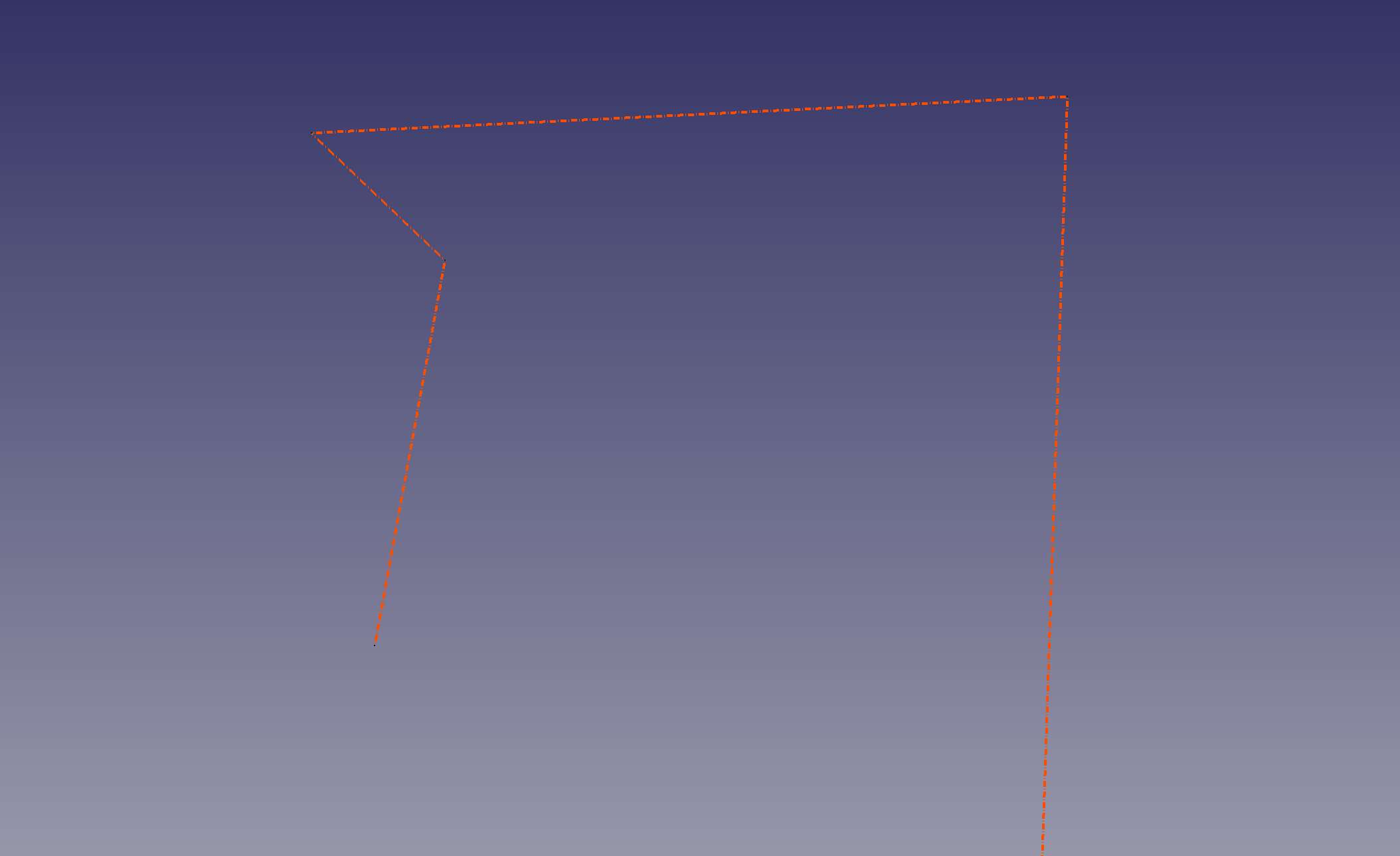

0.21:

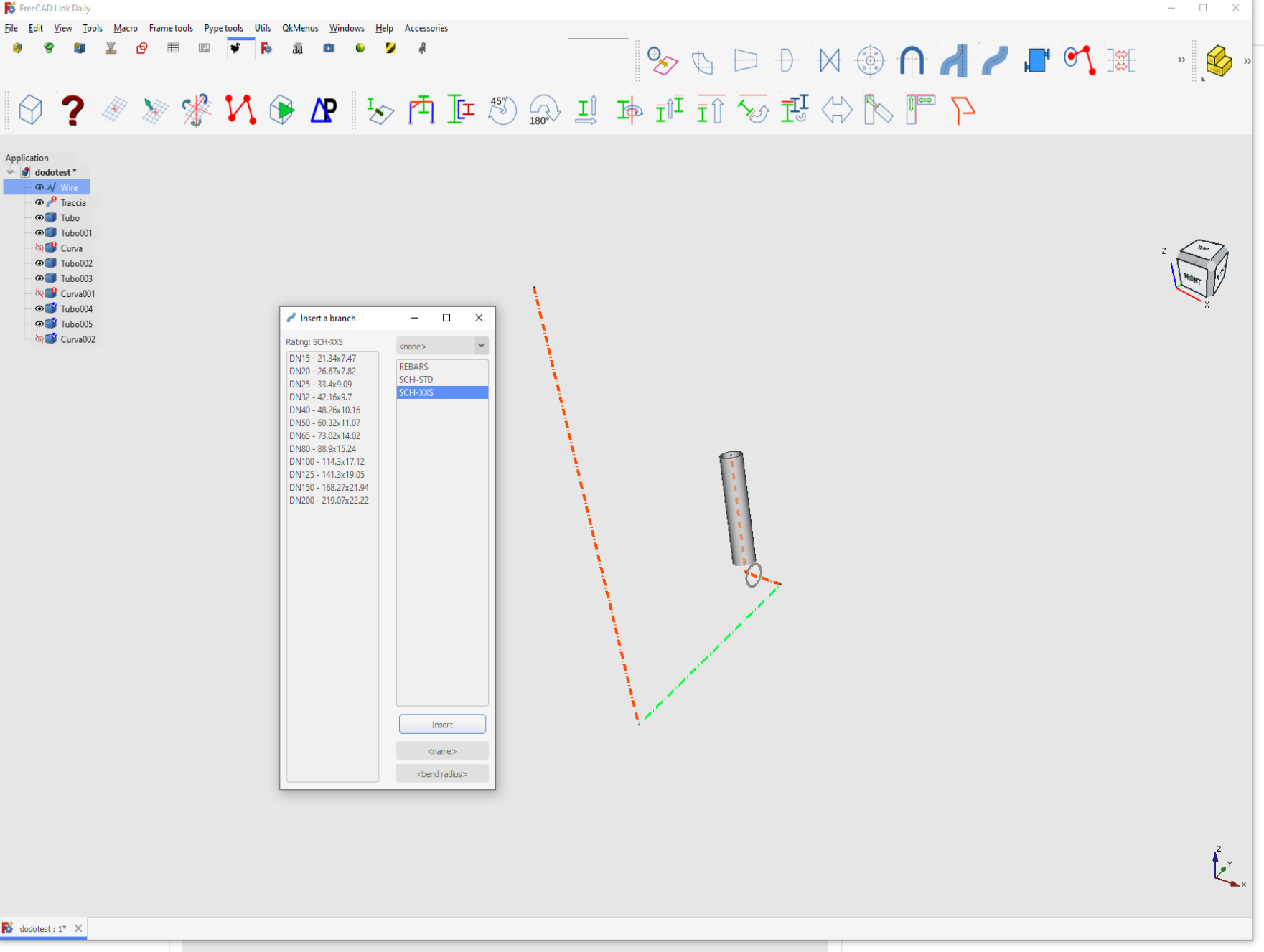

LinkStage3

The test file I used.
dodotest.FCStd.txt

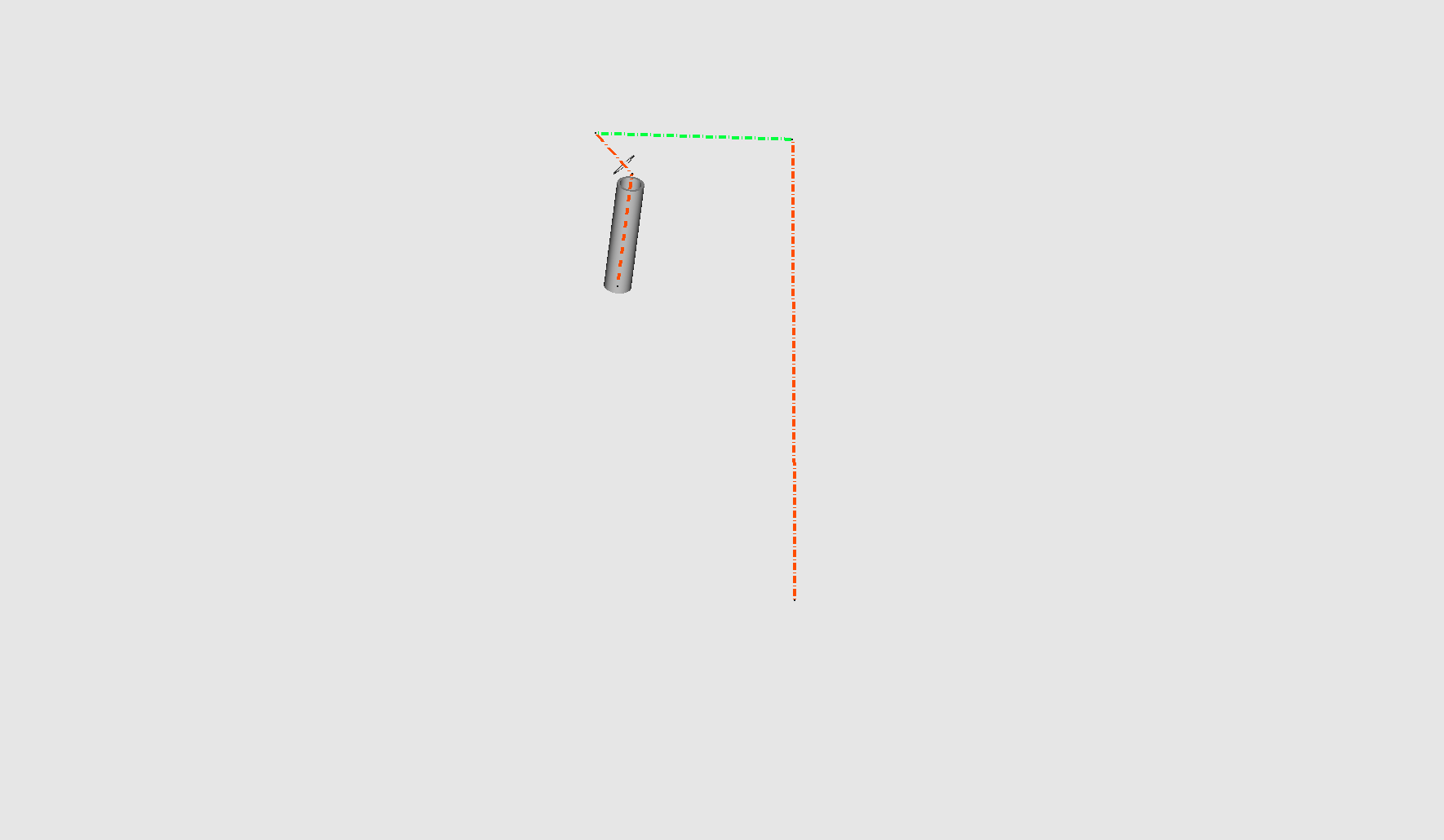

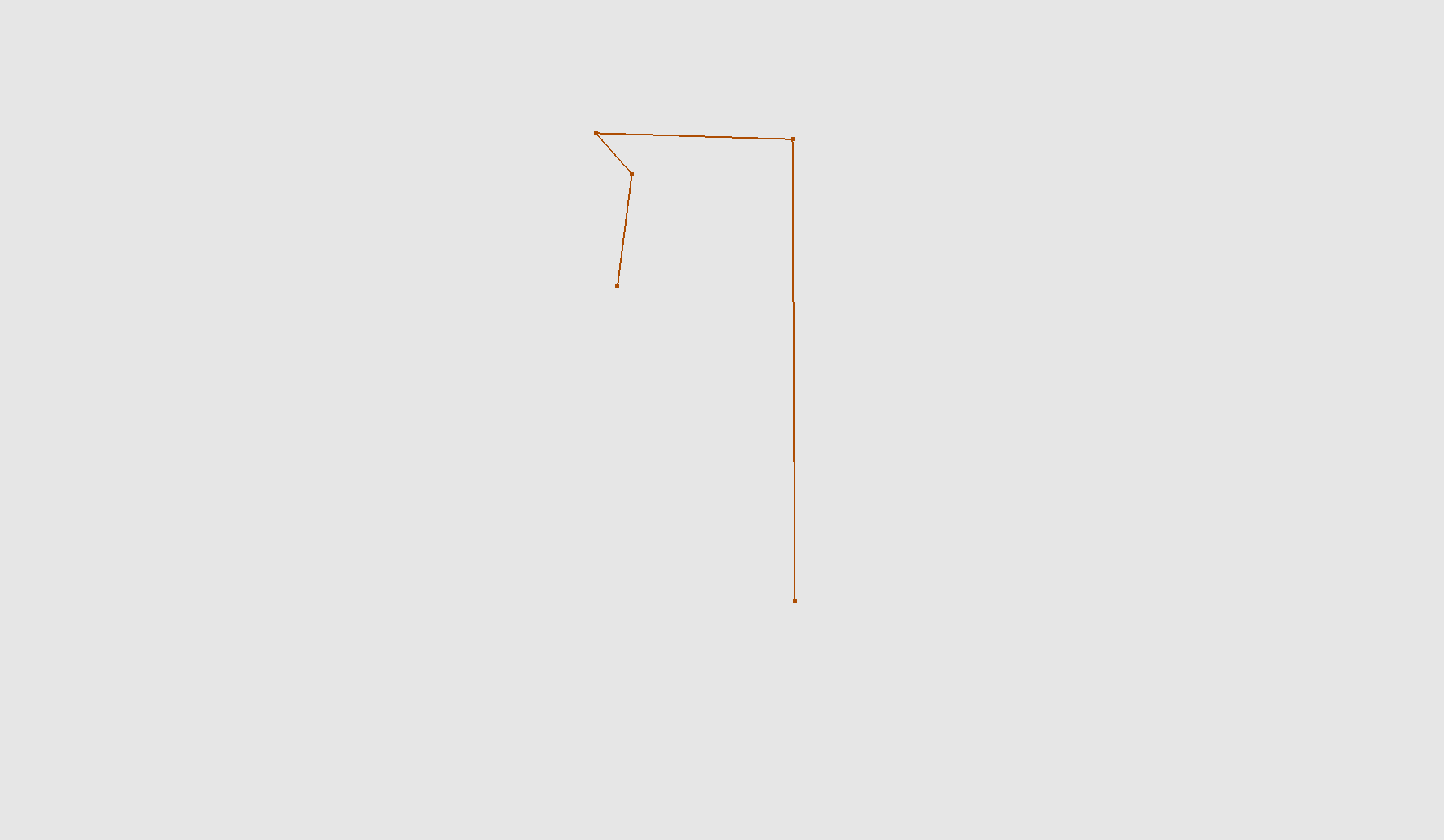

Linkstage3:

[code]
OS: Windows 10 Version 2009
Word size of FreeCAD: 64-bit
Version: 2022.1128.26244 +5318 (Git)
Build type: Release
Branch: LinkDaily
Hash: d45d221
Python version: 3.10.8
Qt version: 5.15.4
Coin version: 4.0.1
OCC version: 7.6.3
Locale: Dutch/Netherlands (nl_NL)
[/code]

FreeCAD 0.21:

[code]
OS: Windows 10 Version 2009
Word size of FreeCAD: 64-bit
Version: 0.21.31155 (Git)
Build type: Release
Branch: master
Hash: 6f1b297
Python 3.10.8, Qt 5.15.4, Coin 4.0.0, Vtk 9.1.0, OCC 7.6.3
Locale: Dutch/Netherlands (nl_NL)
Installed mods:

• AnimationFreeCAD 1.0.0
• Assembly4 0.12.5
• dodo 1.0.0
• DynamicData 2.46.0
• fasteners 0.4.27
• FeedsAndSpeeds 0.5.0
• IconThemes
• POV-Ray-Rendering
• Render 2022.3.0
• sheetmetal 0.2.59
• ShortCuts
• TabBar
• Woodworking 0.21.30486
  [/code]

[snelweg]

Nobody interested?
Seems to me that a fundamental internal part of FC linkstage is not in sync with 0.21
Might explain too why Assembly 4 misses so much of it functionality in linkstage.

[realthunder]

Just happen to have missed your post. Been busy lately. I'll check soon. Also, feel free to report problem of Assembly 4, too.

[snelweg]

Sorry, I didn't mean to be impatient.
Take your time. I will make another issue for the Assembly 4 problems.

[realthunder]

I've also submitted a PR to dodo workbench to fix the object still touched problem after recompute.
