SmartDashboard.js

Unofficial FRC SmartDashboard in nw.js with ntcore_node.

Requires nw.js 0.14.1.

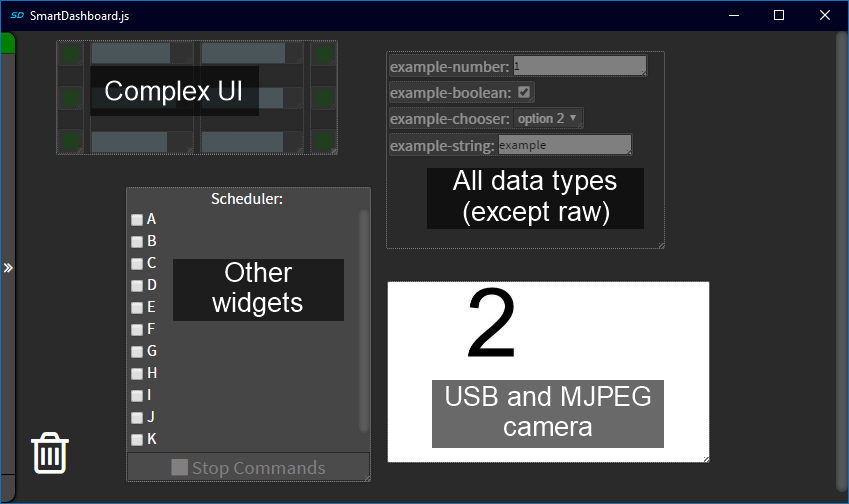

Features

Takes the best features from SmartDashboard and SFX Dashboard

Supports integer, double, string, boolean, and array data types (raw isn't supported yet)
Other complex widgets - graphs, dials, dropdown choosers...
Layout containers for organization
Supports USB and MJPEG camera streams
Themes and plugins
Driver Station integration (like the LV dashboard)

Screenshots

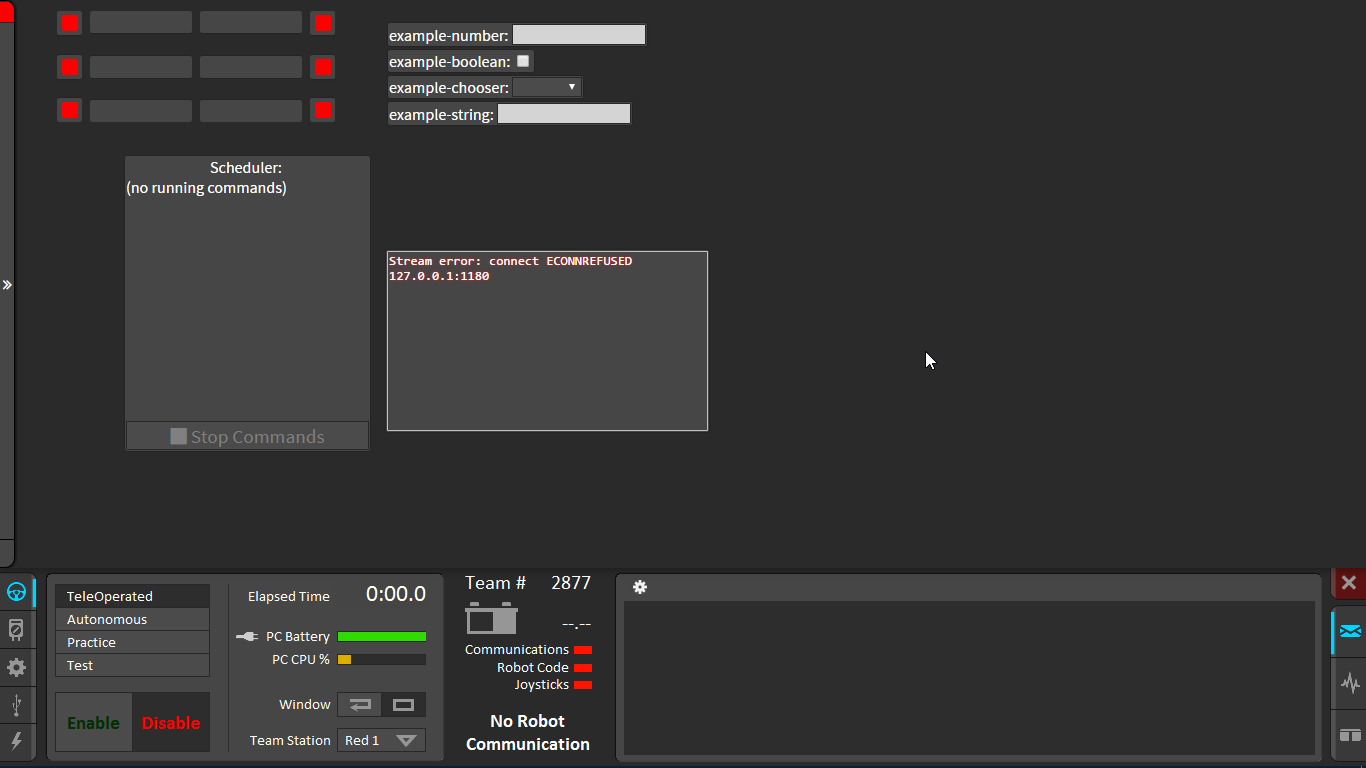

Main screen:

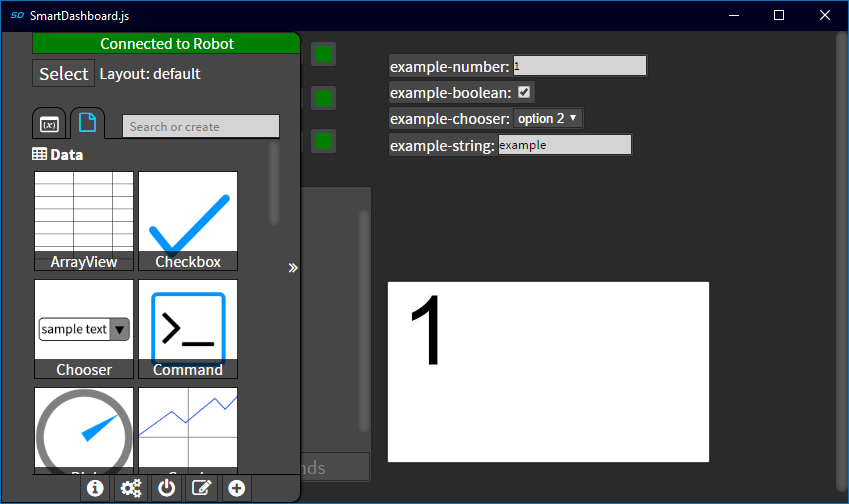

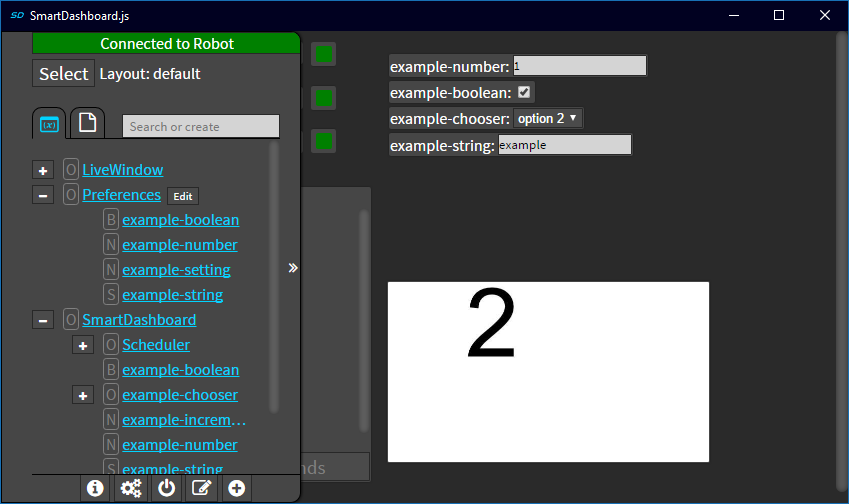

Side panel:

With Driver Station:

Building

Currently the only release builds are for Windows. To build it yourself for Windows or another target, follow these steps:

Build ntcore_node for nw.js (--target-version=0.14.1)
Clone this repo and place ntcore_node.node in the root. (Replace the one that already exists for Windows x64)
Edit line 5 build.xml for your target OS and architecture (linux-ia32, osx-x64, etc)
ant sd.package
Locate built SmartDashboard.js in dist/app. Note: The nw executable is the entry point, and it can't be renamed due to an nw.js issue with native modules.
