Git-Ape

Warning

EXPERIMENTAL PROJECT: Git-Ape is in active development and is not production-ready. Use it for local development, demos, sandbox subscriptions, and learning only.

Git-Ape is a platform engineering framework built on GitHub Copilot. It provides a structured, multi-agent system for planning, validating, and deploying Azure infrastructure — with security gates, cost analysis, and CI/CD pipeline integration built in.

What It Is

Git-Ape packages a set of Copilot agents and skills focused on Azure infrastructure work.

• It helps you gather deployment requirements.
• It generates ARM templates and supporting deployment artifacts.
• It runs security, preflight, and cost checks before deployment.
• It supports onboarding and post-deployment validation.

What It Does

Git-Ape is designed around a simple deployment flow:

1. Collect the inputs for the resources you want.
2. Generate and review the template, naming, cost, and security results.
3. Ask for confirmation before anything changes in Azure.
4. Deploy and run follow-up validation.

Common tasks it supports:

• Deploying Azure application stacks such as Function Apps, Web Apps, Storage, SQL, Cosmos DB, and Container Apps.
• Bootstrapping repository onboarding for OIDC, RBAC, GitHub environments, and secrets.
• Saving deployment artifacts under .azure/deployments/ for audit and reuse.
• Detecting configuration drift between Azure and stored deployment state (agentic workflow — coming soon).

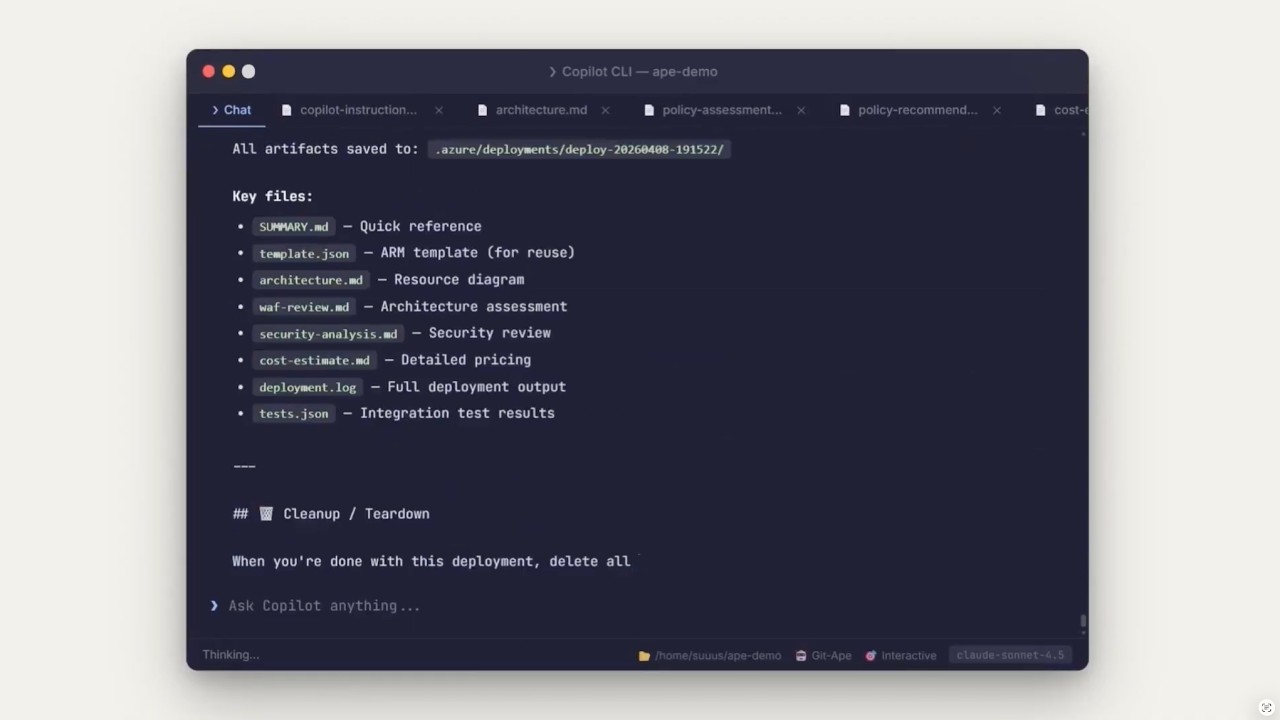

Git-Ape in action

A short demo video of the onboarding and deploy experience using Git-Ape.

Get Started

Prerequisite

• Only tested with BASH shells (git-bash for windows)
• Run /prereq-check in Copilot Chat to verify all required tools (az, gh, jq, git) and auth sessions

1. Install the plugin

Recommended:

copilot plugin marketplace add Azure/git-ape
copilot plugin install Azure/git-ape

Manual option:

1. Clone this repository.
2. Open it in VS Code with GitHub Copilot enabled.
3. Confirm the agents appear in chat.

2. Configure Azure access

1. Install Azure CLI and sign in with az login.
2. Configure the Azure MCP server in VS Code.
3. Verify the required Azure services are enabled.

Setup details are in docs/AZURE_MCP_SETUP.md.

3. Use the agents

Start with one of these prompts in Copilot Chat:

• @git-ape deploy a Python function app
• @git-ape deploy a web app with SQL database
• @Git-Ape Onboarding set up this repo for Azure deployments

4. Tear Down

Use @git-ape to clean up afterwards by using:

• @git-ape destroy Python function app

Where To Go Next

• docs/EXAMPLES.md: Longer end-to-end examples and sample conversations.
• docs/AZURE_MCP_SETUP.md: Azure MCP server configuration for VS Code.
• docs/DEPLOYMENT_STATE.md: How deployment artifacts are stored and reused.
• docs/ONBOARDING.md: Repository onboarding, OIDC, RBAC, and GitHub environment setup.
• docs/CODESPACES.md: GitHub Codespaces and dev container setup.

Architecture

@git-ape is the central orchestrator. It coordinates a deployment pipeline of specialized subagents, enforces security gates, invokes skills, and manages deployment state. It does not deploy anything without explicit user confirmation.

Agent & Skill Orchestration

graph TD
    GA["<b>@git-ape</b><br/>Main Orchestrator Agent<br/><i>Coordinates deployment stages, enforces security gates,<br/>delegates to subagents, invokes skills</i>"]

    GA --> DP
    GA --> AD
    GA --> UT

    subgraph DP ["Deployment Pipeline"]
        RG["<b>Requirements Gatherer</b><br/>Interview user<br/>CAF naming<br/>SKU validation"]
        TG["<b>Template Generator</b><br/>ARM template<br/>Architecture diagram<br/>Cost estimate"]
        SG{{"Security Gate<br/>(BLOCKING)"}}
        WR["WAF Review<br/>(Principal Architect)"]
        UC{{"User Confirmation"}}
        RD["<b>Resource Deployer</b><br/>az deployment<br/>Monitor & retry<br/>Integration tests"]

        RG --> TG --> SG --> WR --> UC --> RD
    end

    subgraph AD ["Advisory"]
        PA["<b>Principal Architect</b><br/>WAF 5-pillar review<br/>Trade-off analysis"]
    end

    subgraph UT ["Utility"]
        IE["<b>IaC Exporter</b><br/>Import live resources"]
        OB["<b>Git-Ape Onboarding</b><br/>OIDC + RBAC<br/>GitHub envs & secrets"]
    end

Loading

Skills

Skills are invoked by agents at specific stages. Each skill handles one focused task.

Phase	Skill	Purpose
Pre-Deploy	/azure-naming-research	CAF abbreviation lookup, naming constraint validation
	/azure-resource-availability	SKU restrictions, version support, API compatibility, quota
	/azure-security-analyzer	Per-resource security assessment with blocking gate
	/azure-deployment-preflight	What-if analysis and permission checks before deploy
	/azure-role-selector	Least-privilege RBAC role recommendations
	/azure-cost-estimator	Real-time cost estimation via Azure Retail Prices API
	/prereq-check	Verify required CLI tools and auth sessions are ready
Post-Deploy	/azure-integration-tester	Post-deployment health checks and endpoint tests
	/azure-resource-visualizer	Generate Mermaid diagrams from live Azure resources
Operations	/azure-drift-detector	Detect config drift between live Azure and stored state
	/git-ape-onboarding	Guided setup for OIDC, RBAC, environments, and secrets

Deployment Flow

graph TD
    U["User prompt:<br/><i>deploy a Python function app</i>"]

    U --> S1

    S1["<b>Stage 1: Requirements</b><br/>Requirements Gatherer interviews user"]
    SK1["/azure-naming-research<br/>/azure-resource-availability"]

    S1 -. skills .-> SK1
    S1 --> S2

    S2["<b>Stage 2: Template & Analysis</b><br/>Template Generator produces ARM +<br/>architecture + cost + security report"]
    SK2["/azure-security-analyzer<br/>/azure-deployment-preflight<br/>/azure-cost-estimator<br/>/azure-role-selector"]

    S2 -. skills .-> SK2
    S2 --> GATE

    GATE{{"Security Gate"}}
    GATE -- "BLOCKED" --> FIX["Fix loop"] --> S2
    GATE -- "PASSED" --> WAF

    WAF["<b>Stage 2.75: WAF Review</b><br/>Principal Architect scores 5 pillars"]
    WAF --> CONFIRM

    CONFIRM{{"User confirms / PR approved"}}
    CONFIRM --> S3

    S3["<b>Stage 3: Deploy</b><br/>Resource Deployer runs az deployment"]
    S3 --> S4

    S4["<b>Stage 4: Validate</b><br/>Health checks, endpoint tests, diagram"]
    SK4["/azure-integration-tester<br/>/azure-resource-visualizer"]

    S4 -. skills .-> SK4

Loading

Execution Modes

Git-Ape works in two modes — same agents and skills, different execution context.

graph LR
    subgraph Interactive ["Interactive Mode (VS Code / Chat)"]
        direction TB
        I1["User ↔ @git-ape"]
        I2["Real-time Q&A"]
        I3["az login session"]
        I4["Interactive confirmation"]
        I5["Direct deployment"]
        I6["@git-ape destroy {id}"]
    end

    subgraph Headless ["Headless Mode (Coding Agent / Actions)"]
        direction TB
        H1["Issue → Agent on branch"]
        H2["Parse requirements from body"]
        H3["OIDC auth via Actions"]
        H4["Commit artifacts to PR"]
        H5["git-ape-plan.yml (PR)"]
        H6["git-ape-deploy.yml (merge)"]
        H7["git-ape-destroy.yml (merge)"]
    end

Loading

Interactive — you talk to @git-ape in VS Code Copilot Chat, authenticate via az login, and approve each step in real time.

Headless — the Copilot Coding Agent picks up a GitHub issue, generates the template on a branch, opens a PR, and the CI/CD workflows (git-ape-plan, git-ape-deploy, git-ape-destroy) handle validation, deployment, and teardown via OIDC.

CI/CD Workflows

Workflow	Trigger	Purpose
git-ape-plan.yml	PR with template changes	Validate, what-if, post plan as PR comment
git-ape-deploy.yml	Merge to main or /deploy comment	Execute ARM deployment
git-ape-destroy.yml	Merge PR with destroy-requested	Delete resource group
git-ape-verify.yml	Manual dispatch	Verify OIDC, RBAC, pipeline health

Note: Drift detection and TTL-based cleanup were previously handled by scheduled workflows (git-ape-drift.yml, git-ape-ttl-reaper.yml). These are being replaced by agentic workflows — coming soon.

Included Components

Git-Ape is packaged as a Copilot CLI plugin with agents and skills under .github/:

plugin.json                          # Plugin manifest
.github/
├── agents/
│   ├── git-ape.agent.md             # Main orchestrator
│   ├── git-ape-onboarding.agent.md  # Onboarding agent
│   ├── azure-requirements-gatherer.agent.md
│   ├── azure-template-generator.agent.md
│   ├── azure-resource-deployer.agent.md
│   ├── azure-principal-architect.agent.md
│   └── azure-iac-exporter.agent.md
├── skills/
│   ├── git-ape-onboarding/          # OIDC, RBAC, env setup
│   ├── azure-naming-research/       # CAF naming
│   ├── azure-resource-availability/ # SKU & quota checks
│   ├── azure-security-analyzer/     # Security assessment
│   ├── azure-deployment-preflight/  # What-if analysis
│   ├── azure-role-selector/         # RBAC recommendations
│   ├── azure-cost-estimator/        # Cost estimation
│   ├── azure-drift-detector/        # Drift detection
│   ├── azure-integration-tester/    # Post-deploy tests
│   └── azure-resource-visualizer/   # Architecture diagrams
└── workflows/
    ├── git-ape-plan.yml
    ├── git-ape-deploy.yml
    ├── git-ape-destroy.yml
    └── git-ape-verify.yml

See plugin.json and .github/plugin/marketplace.json for packaging details.

License

MIT License. See LICENSE.
