Get Smart Tutoring (GST)

Get Smart Tutoring, or GST for short, is a tutoring service web application that utilizes React and microservices, containerized and hosted on Google Cloud Kubernetes.

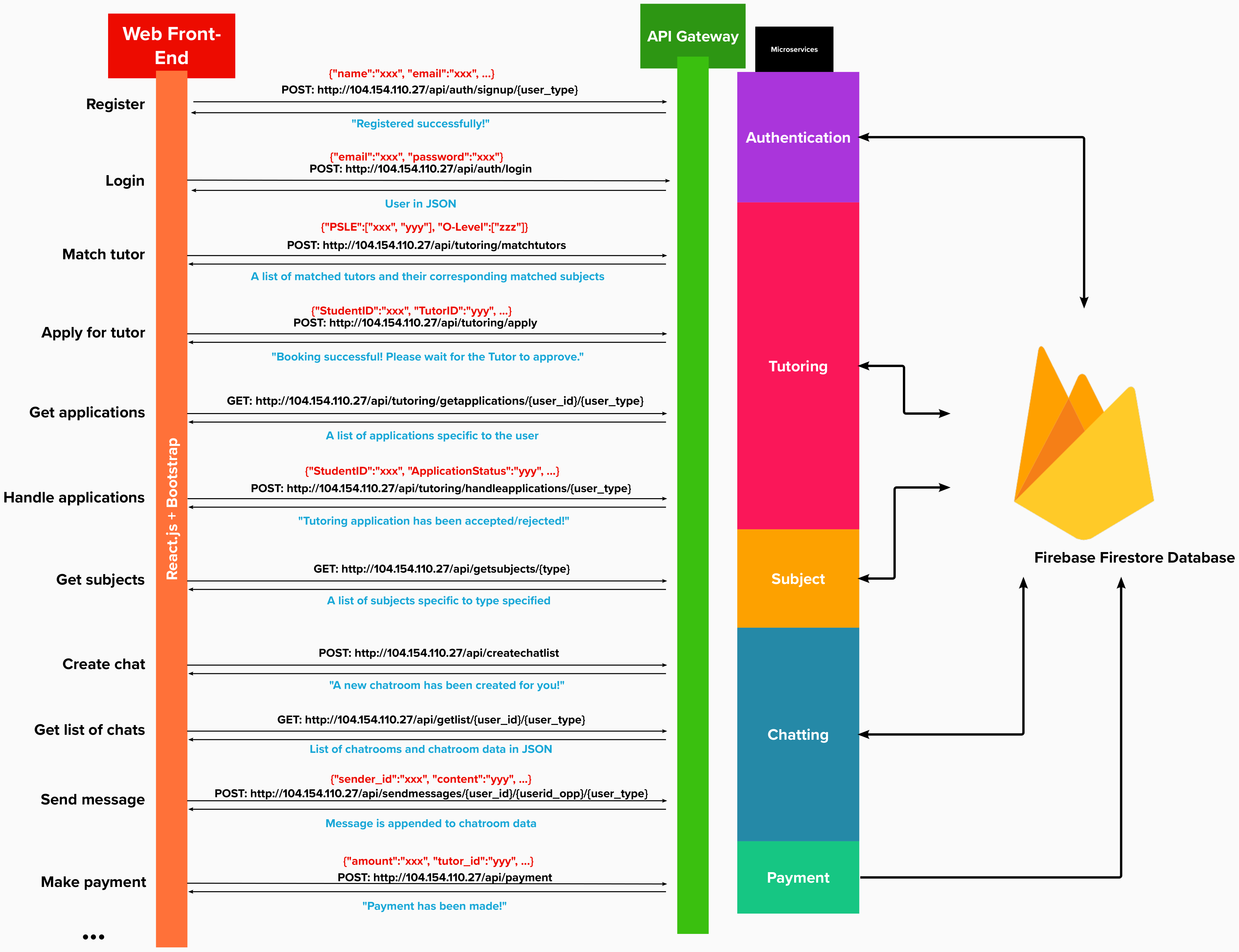

Architecture Diagram

Kubernetes Diagram

Microservice Design Considerations

1. Authentication Management

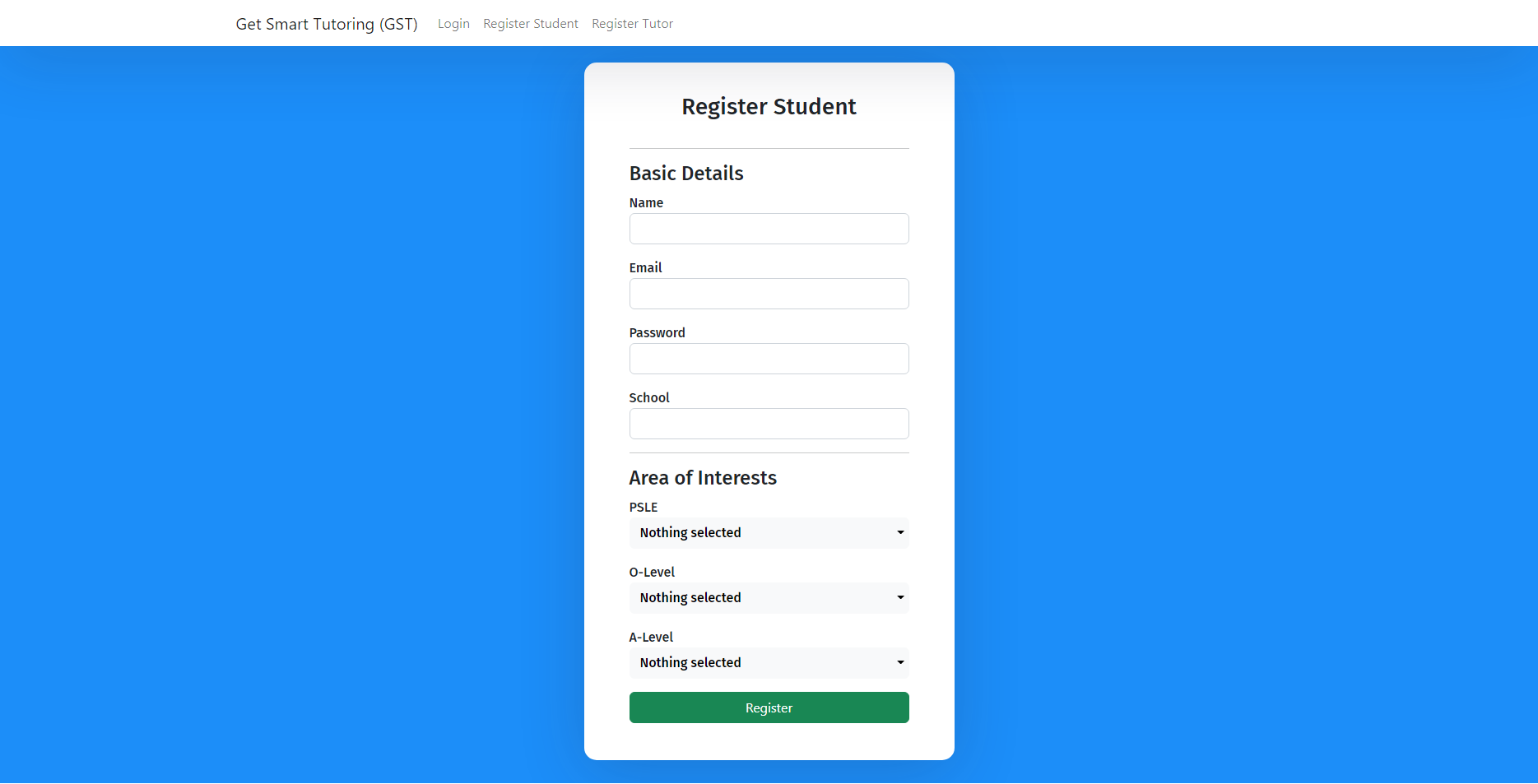

• User Registration

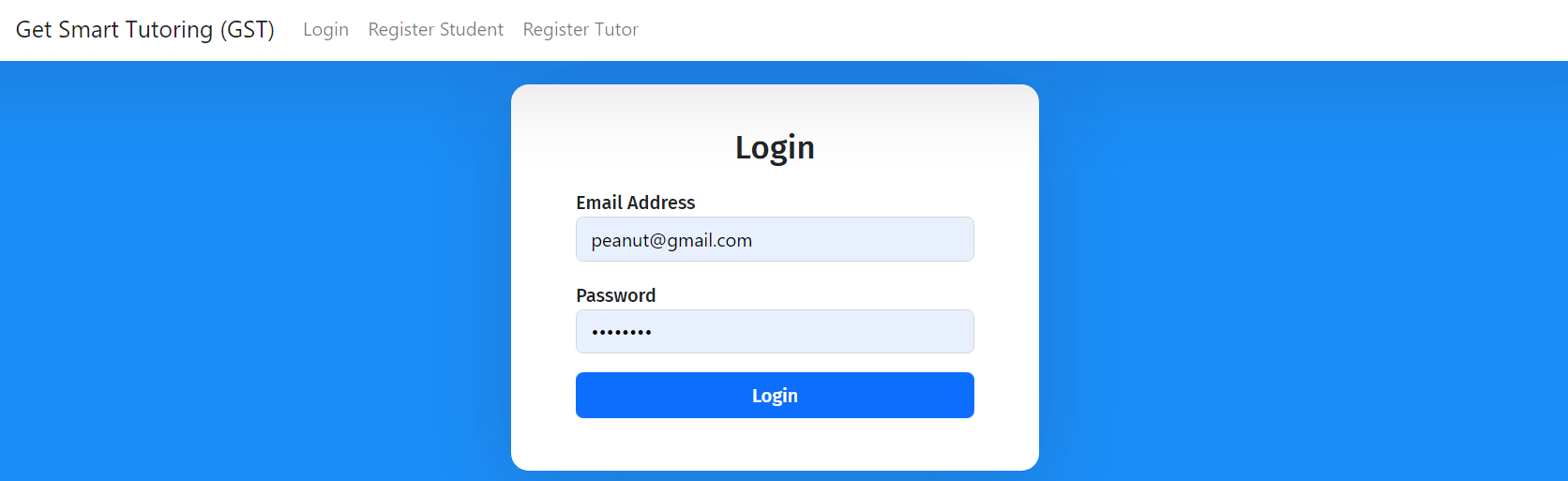

• User Login with credentials, set non-critical user data into local storage



• User Logout

2. Tutoring Functionalities

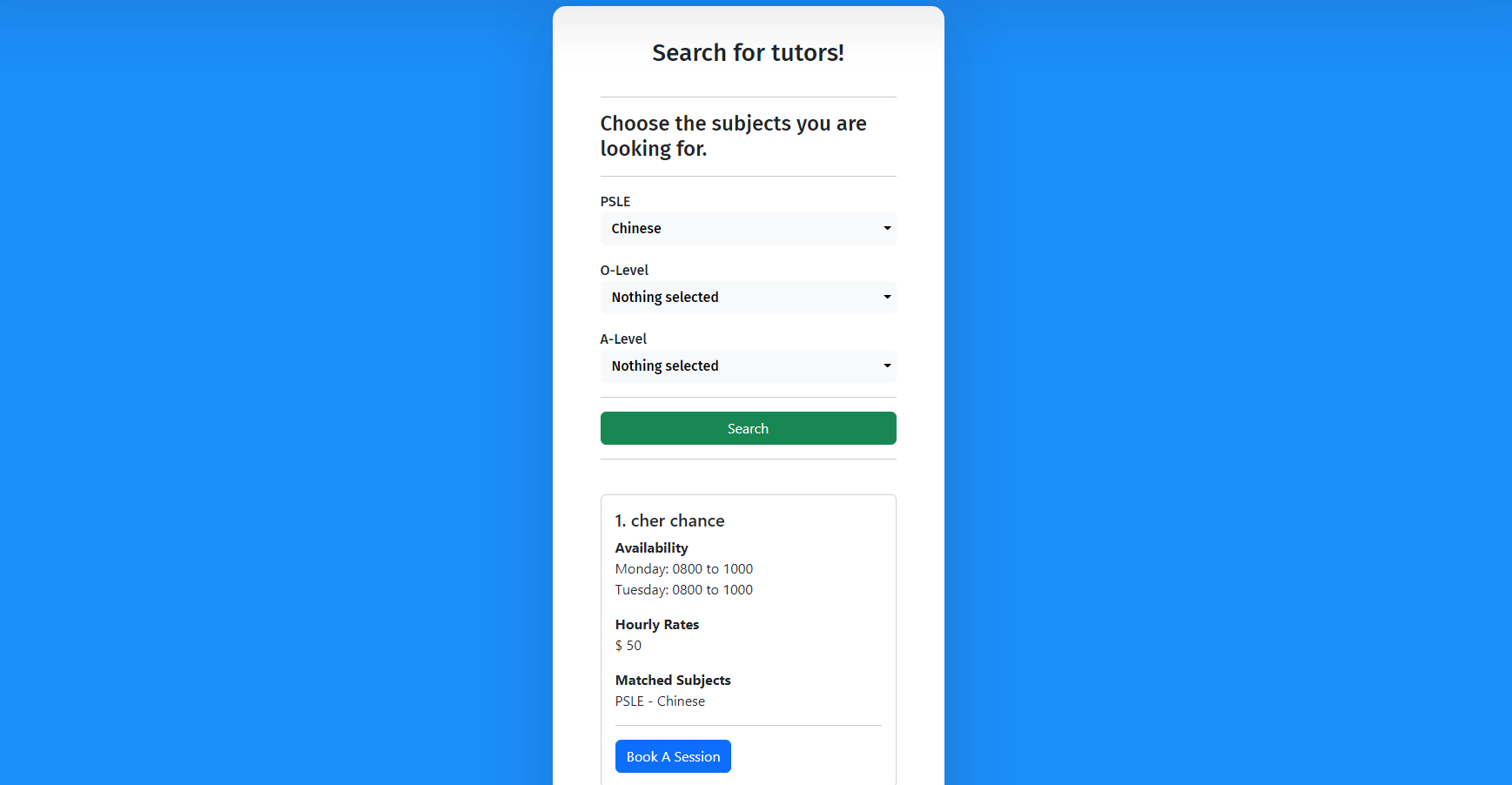

• Student search for tutors based on subjects of interest



• Student apply for tutoring

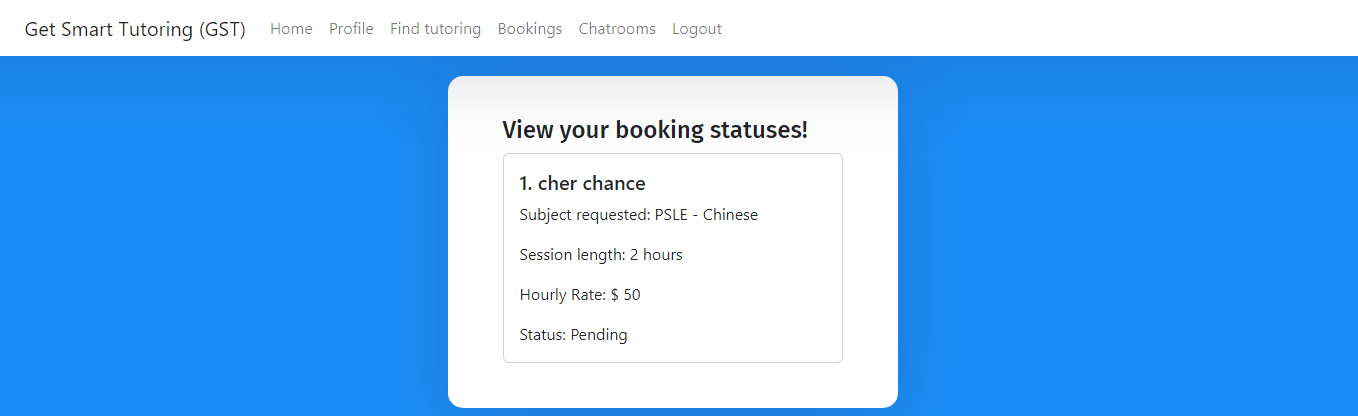

• Student/Tutor get all applications sent/received

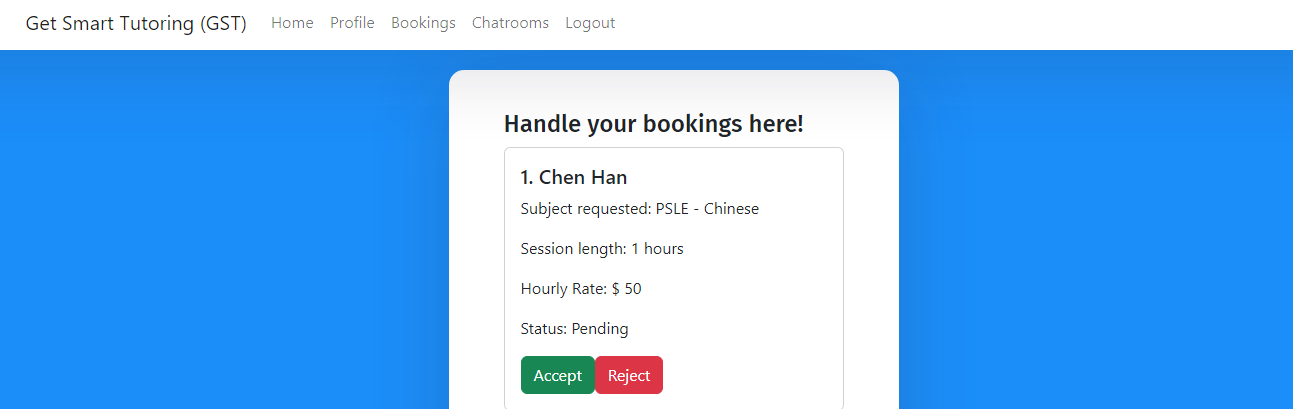

• Tutor accept/deny tutoring applications



3. Chatroom

• Create chatroom once tutor accepts application

• User get a list of created chats

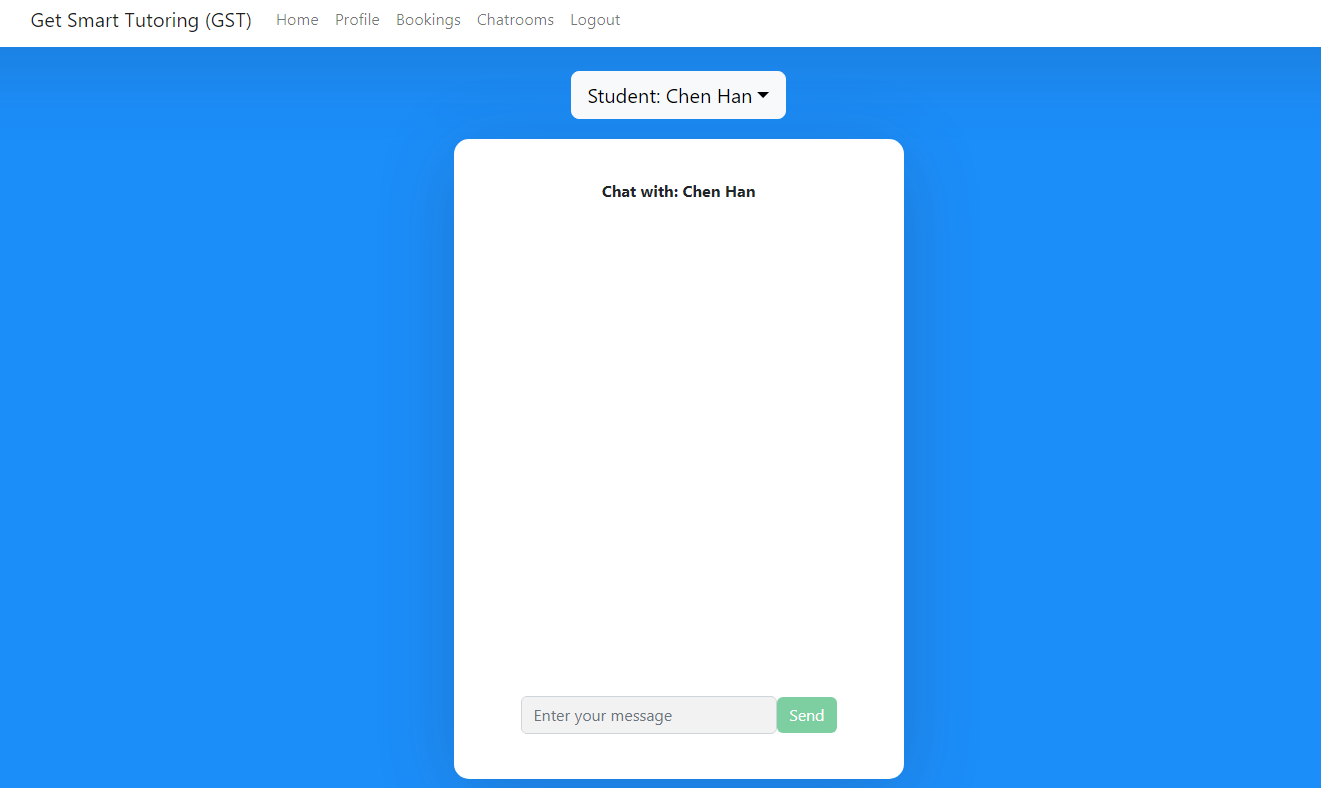

• User send message in a specific chatroom



4. Payment

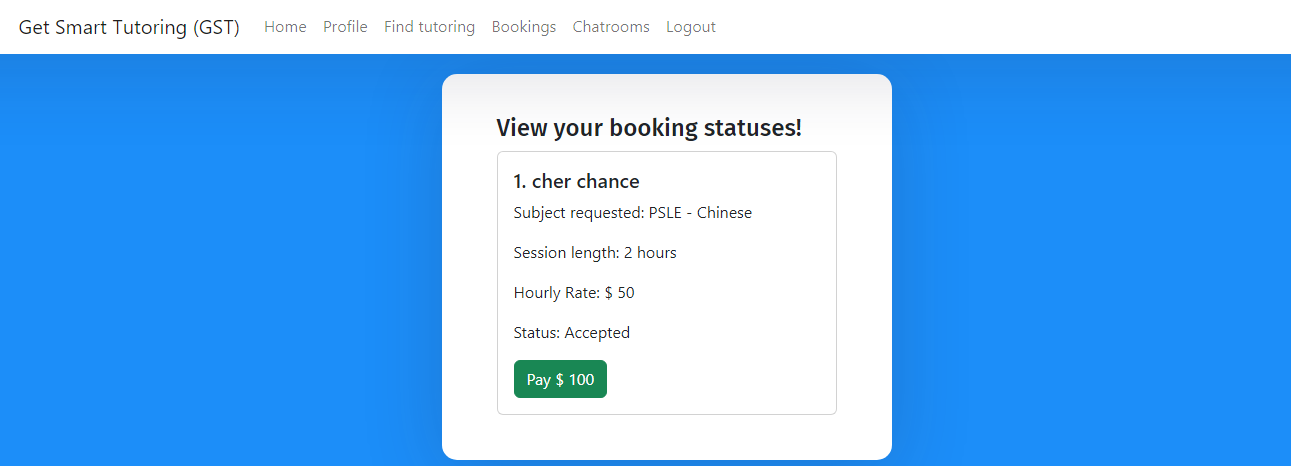

• User make payment for tutoring session



5. Subjects

• Get a list of subjects, with the ability to specify between all, psle, olevel and alevel

Cloud Native Design, Architecture Rationale and Resiliency

• Cloud Reliability by replicas being set to 3; In the case that any of the pods go down, another one will be reinstated in place of the previous.
• Cloud Scalability through Google Cloud, where auto-scaling is set to listen to CPU usage to tune up/down the number of resources being deployed.
• Cost-effectiveness that ties in with scalability, as resources are only instantiated when necessary and taken down when no longer necessary.
• Agility through the use of rolling updates to replace old versions of the application with new ones with no disruption and no downtime to users.
• Portability through ease of deployment on other cloud services (so on this occasion, we utilised Google Cloud).

Development Tools & Methods

Get Smart Tutoring was developed using the following tools:

• Developed using Microservice architecture, specifically for the Golang backend.
• Back-end: Golang server using Mux Router
• Front-end: React.js & Bootstrap
• CORS Middleware Tool: Moesif Origin & CORS Changer (Used for testing)
• CORS Middleware Package: rs/cors - GO Package
• Database: Firebase
• Cloud deployment: Google Cloud using Kubernetes Engine

Deployment

Latest deployment of the application on http://104.154.110.27:80

Step-by-step guideline on Deployment

• Follow this document

Credits

• This project was bootstrapped with Create React App.
• For File uploads: https://github.com/KunalN25/multiple-file-uploads/blob/main/src/App.js
• Upload file on Storage: https://www.makeuseof.com/upload-files-to-firebase-using-reactjs/
