│   "Which customer placed the most orders last month?"                   │
│                              ↓                                          │
│   SELECT name, COUNT(*) FROM customers JOIN orders ... LIMIT 1;         │
│                              ↓                                          │
│   "Alice placed the most orders with 12 orders last month."             │
│                                                                         │
│            ⚡ All in ~2 seconds  ·  100% benchmark accuracy             │
│                                                                         │
└─────────────────────────────────────────────────────────────────────────┘

---

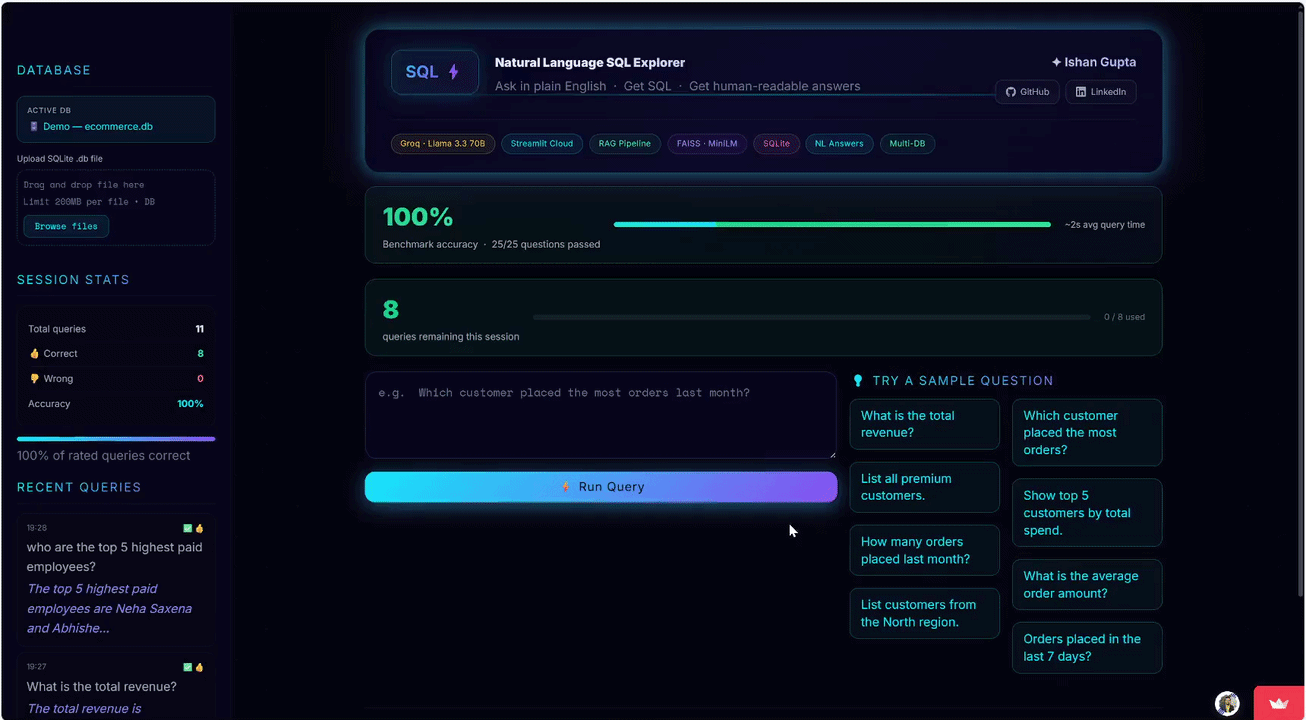

🎥 Demo

Can't see the GIF? Watch live → nl2sql-rag.streamlit.app

---

🏆 Benchmark

📊 100% Benchmark Accuracy 25 / 25 Questions

⚡ ~2s Average Query Time SQL + NL Answer

🗄️ 4 Tables Tested 200 orders · 50 customers

Category	Score	Status
🔵   Simple SELECT	5 / 5	✅
🟣   Filter (WHERE)	5 / 5	✅
🟠   Aggregation (SUM · AVG · COUNT)	5 / 5	✅
🔴   JOIN (multi-table)	5 / 5	✅
🟡   Date Filter	5 / 5	✅
⚡   Overall	25 / 25	🏆 100%

---

✨ Features

🧠 Intelligence NL → SQL — plain English to precise SQL NL Answers — results in one clear sentence RAG Pipeline — FAISS + MiniLM context injection Auto Correction — SQL errors trigger retry	🗄️ Database Multi-Database — upload any SQLite .db file Schema Discovery — auto-detected, no config ecommerce.db — demo database included CSV Export — download any result table
🎨 Interface Cyberpunk UI — animated dot-grid + scanline Session Counter — 8 query limit with live bar Query History — recent queries in sidebar Feedback — 👍 / 👎 rating per answer	🔒 Production SQL Safety — blocks all destructive ops Streamlit Secrets — API key never in code Cloud Ready — Streamlit Cloud deployment Error Recovery — graceful fallback answers

---

🔄 Architecture

---

🛠️ Tech Stack

Layer	Technology	Purpose
🎨 Frontend		Animated cyberpunk UI
🤖 LLM		SQL generation + NL answers
🔍 RAG		Business context retrieval
🗄️ Database		Query execution
⚙️ API		REST backend (local/Docker)
☁️ Deploy		Live hosting

---

📁 Project Structure

nl2sql-rag-system/
│
├── 🚀 streamlit.py              # Main app — standalone, Cloud ready
├── ⚙️  api.py                   # FastAPI backend (local/Docker only)
├── 📋 requirements.txt
├── 🔒 .gitignore
│
├── .streamlit/
│   └── config.toml              # Dark theme config
│
├── assets/
│   └── demo.gif                 # Demo recording
│
├── data/
│   ├── ecommerce.db             # Demo SQLite database
│   └── .gitkeep
│
├── docs/
│   └── business_rules.txt       # Domain context for RAG
│
├── llm/
│   └── sql_generator.py         # Groq — SQL generation + correction
│
├── nlg/
│   └── answer_generator.py      # Groq — rows → plain English
│
├── rag/
│   ├── ingest.py                # Build FAISS vectorstore
│   └── retriever.py             # Retrieve context per question
│
└── eval/
    ├── benchmark.py             # 25-question benchmark
    ├── questions.json           # Test questions
    └── report.py                # Benchmark report

---

💡 Example Queries

💬 You Ask	🤖 AI Answers
What is the total revenue?	"The total revenue is $70,071.24."
Which customer placed the most orders?	"Alice placed the most orders with 12 orders."
List premium customers from the North	Returns matching table
How many orders last month?	"There were 18 orders placed last month."
Top 5 customers by total spend	Returns ranked table
Average order value?	"The average order value is $350.36."

---

☁️ Deploy on Streamlit Cloud

Get your own live instance in under 5 minutes, for free.

1 — Fork this repo

2 — Go to share.streamlit.io

• Create app → select your fork → main file: streamlit.py

3 — Add API key in Secrets

GROQ_API_KEY = "gsk_your_key_here"

Free key at console.groq.com — no credit card.

4 — Deploy 🎉 · Live in ~2 minutes.

---

💻 Run Locally

# Clone
git clone https://github.com/IshanGupta09/nl2sql-rag-system.git
cd nl2sql-rag-system

# Setup
python -m venv venv && source venv/bin/activate   # Mac/Linux
python -m venv venv && venv\Scripts\activate       # Windows

pip install -r requirements.txt
echo "GROQ_API_KEY=gsk_your_key_here" > .env

# First time only
python rag/ingest.py

# Run
streamlit run streamlit.py

---

🧪 Benchmark

python eval/report.py

  ✅  Simple SELECT     5/5
  ✅  Filter            5/5
  ✅  Aggregation       5/5
  ✅  JOIN              5/5
  ✅  Date Filter       5/5
  ───────────────────────────
  🏆  Overall    25/25  100%
  ⚡  Avg time       1.94s

---

🔒 Security

🛡️	Protection	Details
🚫	SQL Injection	Blocks DROP DELETE UPDATE INSERT ALTER TRUNCATE
📁	Path Traversal	Only data/ directory is accessible
🔑	API Key	Streamlit Secrets — never in code or GitHub
⏱️	Rate Limiting	Max 8 queries / session on live demo
👁️	Read-Only	All queries enforced as SELECT only

---

🤝 Contributing

git checkout -b feature/your-feature
git commit -m "feat: your change"
git push origin feature/your-feature
# Open a Pull Request ↗

---

📄 License

MIT License — see LICENSE for details.

---

👤 Ishan Gupta



Found this useful? Give it a ⭐ — it helps a lot!

 

Built with ❤️ and ⚡ · Ishan Gupta · 2026
