BrainStorm_Project

School project : Control a car with a brain waves

Project finished on january 23,2020.

Specifications :

  Base :

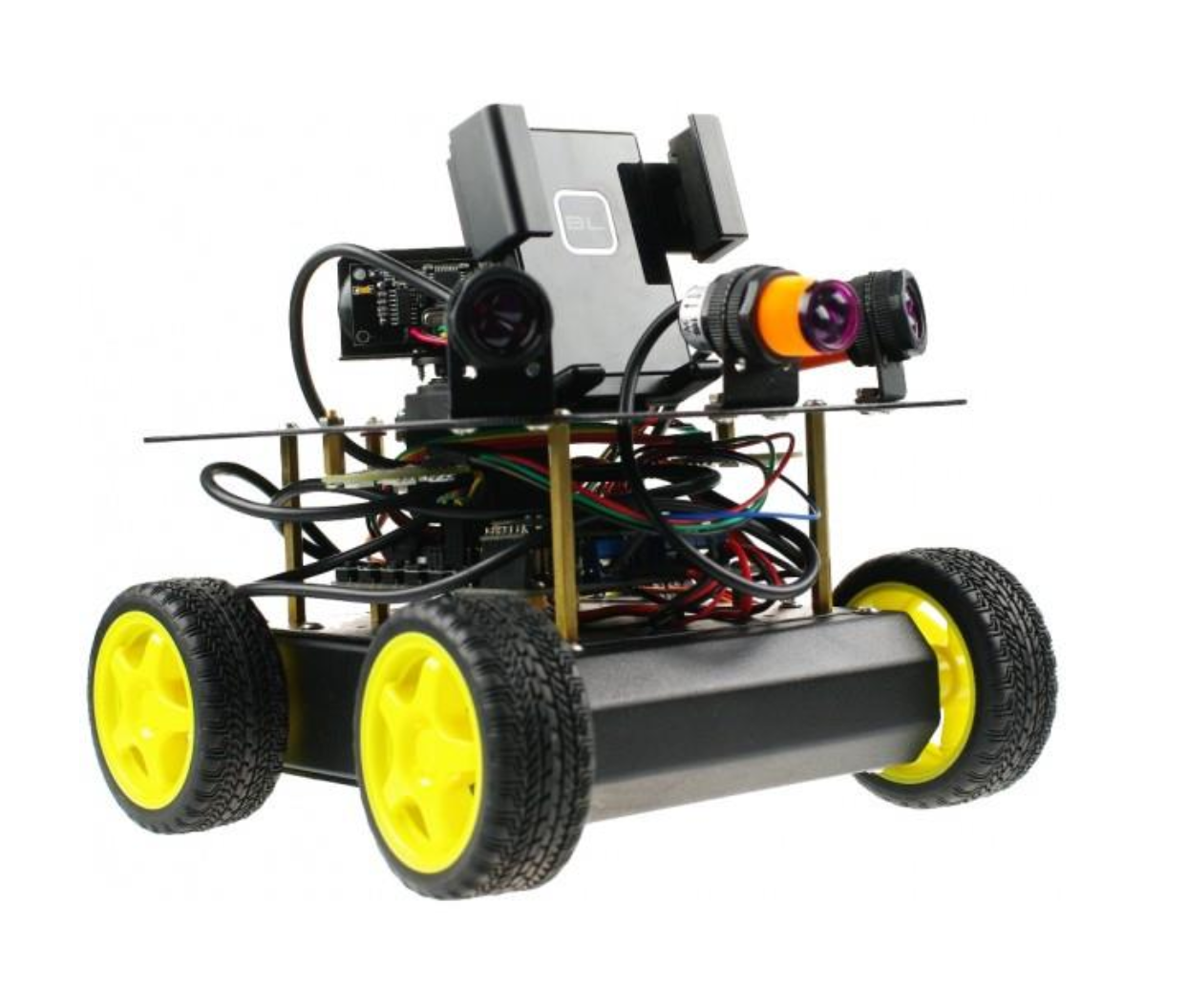

    Control a bluetooth 4.0 robot with an android smartphone.
    Create an app compatible to link and control the robot from our smartphone.
    Connect a 'MindWave Mobile 2 - NeuroSky' bluetooth 4.0 electroencephalogram to our app.
    Control the robot with data from the electroencephalogram.
    Add a database to memorise all actions
    Bonus : Use database to make the robot come back to where it start.

Installing

What things you need to install the software and how to run :

  Prerequisites : If app already instaled it's recomended to unistall or delete storage.

  Instalation : With Android Studio, nothing specific.

Running the app

  Step one : Wait untill app sucesfully scan your bluetooth device. (and then click on it)
    If it does not : Try to restart the app to make sure you accepted the uses of localisation data.
                     Try to reScan using the `Scan` button from trop right corner.
                     Make sure the robot is turned on.

  Step two : Wait a fiew time untill your device is properly connected to your phone. (pretty quick here)
    If it does not : Try to restart using the button from top right corner.
    If it still does not : Retry from step One.

  Step three : Turn on the bluetooth helmet and then hit `Headset` button

  Step four : Wait again till helmet is connected..
    If it does not : Retry from step three. (again)
    If Helmet is connected and show no signal or state :  Restart from step One. (sorry).

How to :

  On control activity (when device is connected) :

    Signal -> Quality of the positioning of the helmet.
    State -> Connection status of the helmet.
    Blink -> Virtual led that indicate if you blink (in yellow).

    Mod -> Indicate the mod you're running on (Grey = desactivated /
                                               Yellow = Activated but not triggered /
                                               Green = Triggered)

      | Focus -> A number between [0;100] that indicate your focus level (with the helmet)
                 When your focus > 80, it unlock a boost mod for the motors to go faster than the others, but you need to stay focus ;)

      | Meditation -> A number between [0;100] that indicate your meditation level (with the helmet)
                When you're about to fall asleep(meditation >80), the robot take the control to drive itself and avoid a imminent collision

      | Reverse -> When triggered, the robot goes back from where it comes. To trigger it you need to do an eye blink.

    Buttons :

      | DataBase -> Show database in another activity. (Only clickable when is connected to a device)


Deployment

• 0.1.2

  • FINAL release.
  • CHANGE: Update docs.
  • CHANGES APP :
    • FINAL FIX : Batabase
    • ADD : Music on focus
    • FIX : Crashes of sensor Thread
  • CHANGES ROBOT :
    • FIX : LOT OF PROBLEMS

• 0.1.1

  • CHANGES APP:
    • APP :
    • FINAL : Bluetooth sending data methodes.
    • FIX : DataBase with propper activity.
    • FIX : Headset data treatment and functions.
    • ADD : Return to 0 functions
    • ADD : Receiving sensor data.

• 0.1.0

  • The first proper release.
  • CHANGES APP :
    • REMOVE : "Unkown Devices".
    • CHANGES : Bluetooth sending data methodes.
    • ADD : DataBase (with activity not working).
    • ADD : Headset data treatment and new functions (as mod : focus and meditation)
  • CHANGES ROBOT :
    • ADD : LiPo Battery.

• 0.0.2

  • First unstable release.
  • CHANGES APP:
    • ADD : Bluetooth Thread for sending.
    • ADD : SickBar and correspunding.
    • ADD : Bluetooth sending data methodes.
  • CHANGES ROBOT :
    • ADD : First push full of digitalWrite/AnalogWrite, no security = to debug app

• 0.0.1

  • First push of base code.

Built With the uses of :

StackOverflow : eg : https://stackoverflow.com/questions/3333658/how-to-make-a-vertical-seekbar-in-android https://stackoverflow.com/questions/24844514/database-in-android-studio/24844741 https://stackoverflow.com/questions/2865315/threads-in-java https://stackoverflow.com/questions/1921514/how-to-run-a-runnable-thread-in-android-at-defined-intervals https://stackoverflow.com/questions/19205547/implementing-simple-seekbar-in-android ... Our teacher...

Authors

• Bernard Caron - Teacher - Initial Work
• Gaspard Misery - Geii student - GitHub
• Kelian Sermet - Geii student - GitHub
• Benjamin Bouaziz -Geii student* - GitHub
• Noe Quentin -Geii student - [GitHub]https://github.com/Quentin-art

Acknowledgments

• Learning java
• Learning how to work in groups
• Learning how to manage time
• Learning uses of gant
• etc
