test/xtimer_drift: DEBUG_PINS by Josar · Pull Request #10173 · RIOT-OS/RIOT

Josar · 2018-10-16T21:39:17Z

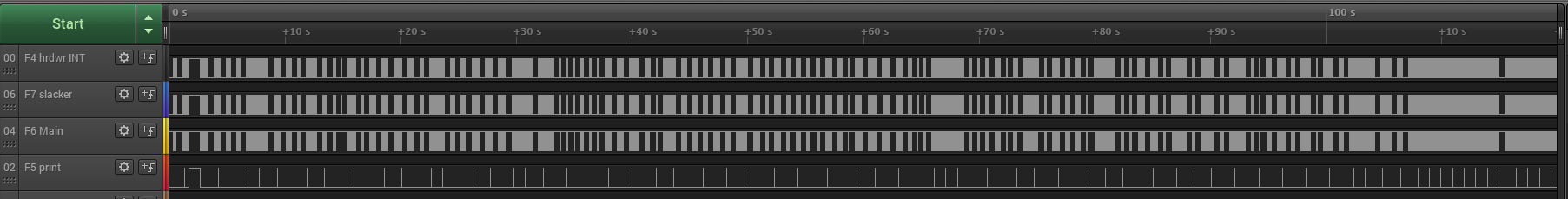

This PR adds debug pins to probe this test with an oscilloscope.
This helps debugging #9595

Before the merge of #9211 (comment) we can observe the hanging behaviour of the system.

After #9211 (comment) is merged a pariodic a race condition appears which can be seen in the prints of the test #9596.

When #9595 is merged this will result in an stable System.

PeterKietzmann · 2018-10-17T07:06:15Z

@leandrolanzieri is this helpful? Mind to have a look?

Josar · 2018-11-01T12:28:48Z

Set generic pin definition as in #10174

PeterKietzmann · 2018-11-05T10:36:20Z

@MichelRottleuthner, @leandrolanzieri you took care of #10174, how about this PR?

A-Paul

Code looks good to me. Just one location where we could save some space.

A-Paul · 2018-11-08T18:36:16Z

tests/xtimer_drift/Makefile

+#CFLAGS += -DDEBUG_TIMER_PORT=PORTF
+#CFLAGS += -DDEBUG_TIMER_DDR=DDRF
+#CFLAGS += -DDEBUG_TIMER_PIN=PORTF4
+


Lines 8-14: This description is already in <cpu/atmega_common/periph/timer.c> since #9025.
Just place a reference, please.

Then you will have to copy paste them from there everytime you want to use this debug pins.
As i understand the tests also as testing tools, having such info in place is imho more helpfull then the space saved.

@A-Paul A-Paul i am willing to remove the comments if this is the showstopper here.

This test should be independent of the atmega implementation. Ideally, we would have a generic debug pin for this purpose configured for every platform. Now that this is out of scope for your PR, I'd say we remove it.

Josar · 2019-03-17T08:36:51Z

@A-Paul can we continue here?

Josar · 2019-04-17T21:13:46Z

@A-Paul @PeterKietzmann @kYc0o is it possible to get this merged as this is a part of the xtimer improvement i started a long time ago.

I somehow get the feeling that there is no interrest from the maintainers to get xtimer working proprerly.

Now old and known issues are coming up again #11149.

kYc0o · 2019-04-18T12:06:23Z

So far the only thing missing is the testing part. Unfortunately I don't have the tools anymore to proceed with a good testing here, however I also think that this PR has waited too much and would be beneficial to merge it.

@A-Paul would you have time for the testing?

PeterKietzmann

@Josar I ran the application on a samr21-xpro with

CFLAGS += -DSLACKER_THREAD_PIN=GPIO_PIN\(0,22\)
CFLAGS += -DMAIN_THREAD_PIN=GPIO_PIN\(1,3\)
CFLAGS += -DPRINT_THREAD_PIN=GPIO_PIN\(1,22\)

Results look slightly different in comparison to yours, but they seem reasonable to me.

In a nutshell:

print occurs every second
main occurs every ~15.6ms and takes a little longer when print happens around the same time
slacker occurs in (non constant) intervals between 1...10ms

PeterKietzmann · 2019-05-21T12:11:38Z

tests/xtimer_drift/Makefile

+#CFLAGS += -DDEBUG_TIMER_PORT=PORTF
+#CFLAGS += -DDEBUG_TIMER_DDR=DDRF
+#CFLAGS += -DDEBUG_TIMER_PIN=PORTF4
+


This test should be independent of the atmega implementation. Ideally, we would have a generic debug pin for this purpose configured for every platform. Now that this is out of scope for your PR, I'd say we remove it.

PeterKietzmann · 2019-05-21T12:17:01Z

tests/xtimer_drift/Makefile

+
+# Define test probing pins GPIO API based.
+# Port number should be found in port enum e.g in cpu/include/periph_cpu.h
+#FEATURES_REQUIRED += periph_gpio


Is there a single platform that has no GPIO driver but xtimer support? In my opinion it should be fine to always include that feature (otherwise we would see what Murdoch says later)

PeterKietzmann · 2019-05-21T12:18:04Z

tests/xtimer_drift/Makefile

+# Define test probing pins GPIO API based.
+# Port number should be found in port enum e.g in cpu/include/periph_cpu.h
+#FEATURES_REQUIRED += periph_gpio
+# Jiminy probing Pins


If you really wanna have the jiminy config here, please define the CFLAGS in

ifneq (,$(filter jiminy,$(BOARD))) endif

PeterKietzmann · 2019-05-21T12:18:54Z

tests/xtimer_drift/main.c


+#if defined(SLACKER_THREAD_PIN)
+    gpio_t slacker_pin = SLACKER_THREAD_PIN;
+    gpio_init(slacker_pin, GPIO_OUT);


Why not directly gpio_init(SLACKER_THREAD_PIN, GPIO_OUT); here and following?

PeterKietzmann · 2019-05-21T12:19:39Z

tests/xtimer_drift/main.c

-
+#if defined(SLACKER_THREAD_PIN)
+        gpio_set(slacker_pin);
+        gpio_clear(slacker_pin);


Probably a matter of taste, but wouldn't a single toggle be simpler and easier to read on the scope?

Josar · 2019-05-22T14:59:23Z

@PeterKietzmann i think its a 32 bit timer which is used for xtimer, waiting for that to overflow takes some time. Maybe you could configure it to use a 16bit timer.

PeterKietzmann · 2019-05-22T15:30:48Z

waiting for that to overflow takes some time

I wasn't waiting for an overflow :-). Are you saying this because I mentioned that my results look slightly different to yours? I'm fine with the concept of this PR and IMO it only needs some small polish in order to be merged
Edit: With "polish" I meant addressing my comments
