gnrc_netif: only use prefix matching as tie-breaker in source selection by miri64 · Pull Request #12408 · RIOT-OS/RIOT

miri64 · 2019-10-09T16:17:22Z

Contribution description

When source address selection is done, both RFC and comments in the code state, that a longest prefix match should only be used as a tie-breaker between more than one viable candidate. If there is only one address, there is

a) no need for a tie-breaker
b) in the case of either the destination address or the single remaining address being ULAs (which are considered to be of global scope) possibly not matching, as fd00::/7 and e.g. 2001::/8 do not have a common prefix.

(b) in fact causes the match function to return -1, causing the source address selection to return -1, causing the outer function to return the first address it found (which most often is the link-local address), causing e.g. a ping to an ULA to fail, even is there is a global address.

I also piggy-backed a reduction of code duplication (so I can set idx just at one point) and added some doc on candidate creation, because some things were unclear to me when I tried to wrap my head around the problem.

Testing procedure

Pinging the link-local address between two native instances should still select the link-local address of the sender (I tested with examples/gnrc_networking on native and sniffed tapbr0 while pinging):
```
ifconfig 6 add 2001:db8::1
ping6 fe80::d826:95ff:fe26:f1d5
```
When merging gnrc/netif: don't treat link local differently in prefix matching #12404, pinging fd00:dead:beef::1 from a examples/gnrc_networking node via an examples/gnrc_border_router node should still work (after the global addresses are set up on all nodes).
make -C tests/gnrc_netif flash test should still work for a board of your choice and should not work if you revert the fix to the prefix matching:
- git revert HEAD~2; git revert HEAD~4; make -C tests/gnrc_netif

Issues/PRs references

~~Fixes an issue in source address selection with ULAs becoming obvious in #12404. Required to make #12404 mergable.~~ (#12404 now is included here)

Requires #12425 for address resolution to still work fully (and tests/gnrc_ipv6_nib to pass)

miri64 · 2019-10-09T16:55:03Z

After thinking about this some more, I think using _match_to_idx() in this function is completely the wrong approach, as if we have e.g. two global addresses starting with 0000::/1 assigned to the interface that win the source address selection so far and the destination address starts with 1000::/1 it will return -1 as none of the addresses selected matches the destination address by more than 1 bit, causing the source address selection to pick first_candidate (which is typically is the auto-generated link-local address). Rather, we should compare the best matches of the remaining addresses with the destination, as rule 8 states, and pick the best (or either one of them if they match equally best, even if it is 0).

miri64 · 2019-10-09T17:09:57Z

Done.

miri64 · 2019-10-09T17:12:28Z

sys/net/gnrc/netif/gnrc_netif.c

        unsigned match;

-        if ((netif->ipv6.addrs_flags[i] == 0) ||
-            ((filter != NULL) && _addr_anycast(netif, i)) ||


See RFC 6724, page 30, point 3: This can be removed without alternative.

miri64 · 2019-10-10T08:38:41Z

I added a test for the corner case, that popped up due to the fix in #12404.

miri64 · 2019-10-10T11:12:57Z

Squashed, rebased, added the commit from #12404 and added some more test cases.

miri64 · 2019-10-10T11:44:32Z

@fjmolinas @kb2ma can one of you maybe give this a look?

miri64 · 2019-10-10T12:56:26Z

@kaspar030 made me aware off-line of section 2.2 in RFC 6724 regarding the function "commonPrefixLen()" that is used in rule 8. I adapted the code accordingly.

kb2ma · 2019-10-10T12:58:29Z

Looking into this now. The decision to merge this PR is the last issue before generation of the 2019.10 release branch.

miri64 · 2019-10-10T13:03:29Z

Pushed a bit too early and added some fixes to that function now.

miri64 · 2019-10-10T13:07:11Z

Sorry, yet another issue... I'll just say when I'm done... :(

kb2ma · 2019-10-10T13:11:27Z

No worries, @miri64. I need a little time to understand the issues anyway.

miri64 · 2019-10-10T13:11:33Z

Section 2.2 in RFC 6724 actually makes one of the test cases invalid, so I removed it. The tests are now passing again. Sorry for these last minute changes.

miri64 · 2019-10-10T13:12:22Z

@kb2ma do you mind if I squash? I somehow messed up my fixup commits, I just noticed...

kb2ma · 2019-10-10T13:13:32Z

Go right ahead. I would likely skip over the intermediate results anyway.

miri64 · 2019-10-10T13:18:18Z

Squashed

Go right ahead. I would likely skip over the intermediate results anyway.

At least for the review I think it helps if you go through it commit-wise (not all tests work for all commits though), as I tried to make my thinking process clearer with the history. Additionally, the PR contains some clean-up of now unnecessary code, that resulted from fixing the bugs and adapting it more in line with RFC 6724.

miri64 · 2019-10-10T13:57:09Z

(I'm now done, btw)

kb2ma · 2019-10-10T13:59:32Z

Sounds good. I've got a basic handle on the issues. Is the testing procedure in the PR description still valid?

miri64 · 2019-10-10T14:01:40Z

Yepp

miri64 · 2019-10-10T14:02:35Z

Except for the merging of #12404 part in (2), as that one is part of this PR now ;-).

miri64 · 2019-10-21T14:10:53Z

Rebased to current master, no longer waiting for other PR.

cgundogan · 2019-10-21T20:57:14Z

sys/net/gnrc/netif/gnrc_netif.c

+             *  address.
+             *  (so don't consider tentative addresses for source address
+             *  selection) */
            gnrc_netif_ipv6_addr_dad_trans(netif, i)) {


I know this line is not part of this PR, but could you clarify why addresses are not considered that have gnrc_netif_ipv6_addr_dad_trans() != 0? According to the doc of this function, the return value is:

the number of duplicate address detection transmissions already performed

How can we deduce that the address is tentative from that result?

The number of DAD transmissions is encoded in the tentative state in our DAD implementation (that's why you see TNT[1..3] with the ifconfig command, not just TNT). So a value of 0 for already performed DAD transmissions means the address is not tentative. As the NS for DAD is sent as soon as the address is added, this is also true if you don't have the knowledge of such GNRC internals ;)

See also doc for tentative state:

RIOT/sys/include/net/gnrc/netif/ipv6.h

Lines 48 to 55 in 55adbee

/**

* @brief Tentative states (with encoded DAD retransmissions)

*

* The retransmissions of DAD transmits can be decoded from this state by

* applying it as a mask to the [flags](gnrc_netif_ipv6_t::addrs_flags) of the

* address.

*/

#define GNRC_NETIF_IPV6_ADDRS_FLAGS_STATE_TENTATIVE (0x07U)

fjmolinas

Testing:

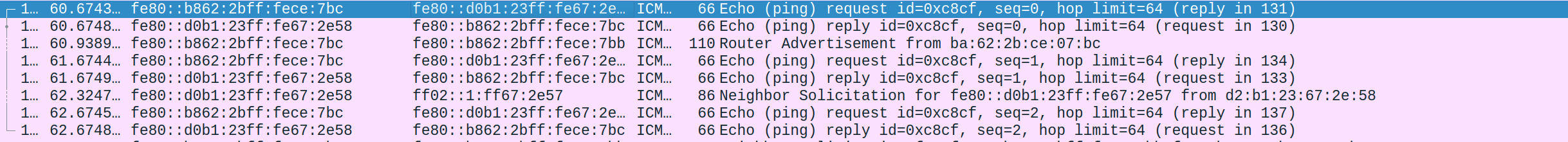

Pinging the link-local address between two native instances should still select the link-local address of the sender

pinging fd00:dead:beef::1 from a examples/gnrc_networking node via an examples/gnrc_border_router node should still work

ping6 fd00:dead:beef::1
2019-10-22 13:59:44,921 #  ping6 fd00:dead:beef::1
2019-10-22 13:59:45,987 # 12 bytes from fd00:dead:beef::1: icmp_seq=1 ttl=63 rssi=-33 dBm time=59.327 ms
2019-10-22 13:59:46,963 # 12 bytes from fd00:dead:beef::1: icmp_seq=2 ttl=63 rssi=-32 dBm time=36.240 ms
2019-10-22 13:59:47,920 #
2019-10-22 13:59:47,924 # --- fd00:dead:beef::1 PING statistics ---
2019-10-22 13:59:47,929 # 3 packets transmitted, 2 packets received, 33% packet loss
2019-10-22 13:59:47,933 # round-trip min/avg/max = 36.240/47.783/59.327 ms

make -C tests/gnrc_netif flash test should still work for a board of your choice

.......................................................................
OK (71 tests)

Also this seems to fix the issue pointed out in #11818, it is always selecting the first lla EUI64 address.

sys/net/gnrc/netif/gnrc_netif.c

fjmolinas · 2019-10-22T12:07:13Z

git revert HEAD~2; git revert HEAD~4; make -C tests/gnrc_netif

@miri64 just to be sure after new commits have been added, can you point out the hash of the two commits to revert?

miri64 · 2019-10-24T13:24:03Z

git revert HEAD~2; git revert HEAD~4; make -C tests/gnrc_netif

@miri64 just to be sure after new commits have been added, can you point out the hash of the two commits to revert?

Sorry only noticed the activity in this PR now. I'll have a look at your review and then update :-).

miri64 · 2019-10-24T13:35:35Z

git revert HEAD~2; git revert HEAD~4; make -C tests/gnrc_netif

@miri64 just to be sure after new commits have been added, can you point out the hash of the two commits to revert?

Currently HEAD~2 would be fb1754e and HEAD~4 d8f6d82.

fjmolinas · 2019-10-24T13:52:33Z

not work if you revert the fix to the prefix matching:

git revert HEAD~~2; git revert HEAD~~4; make -C tests/gnrc_netif

completed test procedure...

flags: 0x0
src_l2addr: 3E:E6:B5:22:FD:0B
dst_l2addr: 3E:E6:B5:22:FD:0A
~~ PKT    -  2 snips, total size:  61 byte
Timeout in expect script at "child.expect(r"OK \(\d+ tests\)")" (tests/gnrc_netif/tests/01-run.py:16)
  File "/home/francisco/workspace/RIOT/dist/pythonlibs/testrunner/__init__.py", line 29, in run
    testfunc(child)
  File "/home/francisco/workspace/RIOT/tests/gnrc_netif/tests/01-run.py", line 16, in testfunc
    child.expect(r"OK \(\d+ tests\)")
  File "/home/francisco/.local/lib/python3.6/site-packages/pexpect/spawnbase.py", line 341, in expect
    timeout, searchwindowsize, async_)
  File "/home/francisco/.local/lib/python3.6/site-packages/pexpect/spawnbase.py", line 369, in expect_list
    return exp.expect_loop(timeout)
  File "/home/francisco/.local/lib/python3.6/site-packages/pexpect/expect.py", line 119, in expect_loop
    return self.timeout(e)
  File "/home/francisco/.local/lib/python3.6/site-packages/pexpect/expect.py", line 82, in timeout
    raise TIMEOUT(msg)

/home/francisco/workspace/RIOT/tests/gnrc_netif/../../Makefile.include:710: recipe for target 'test' failed

miri64 · 2019-10-24T13:54:51Z

Note, because I was confused for a moment: The test is supposed to fail...

fjmolinas · 2019-10-24T13:56:08Z

@miri64 please squash!

fjmolinas · 2019-10-24T13:56:48Z

@miri64 please squash!

Lets trigger tests in murdock as well!

When source address selection is done, both RFC and comments in the code state, that a longest prefix match should *only* be used as a tie-breaker between more than one viable candidate. If there is only one address, there is a) no need for a tie-breaker b) in the case of either the destination address or the single remaining address being ULAs ([which are considered to be of global scope] [RFC4193]) possibly not matching, as `fd00::/7` and e.g. `2001::/8` do not have a common prefix. (b) in fact causes the match function to return -1, causing the source address selection to return -1, causing the outer function to return the first address it found (which most often is the link-local address), causing e.g. a ping to an ULA to fail, even is there is a global address. [RFC4193]: https://tools.ietf.org/html/rfc4193

`_match_to_idx()` was removed from source address selection (which was the only one setting the filter parameter to a non-NULL value), so it is the parameter is not needed anymore.

- ULA destination with global address on interface - Deprecated addresses

miri64 · 2019-10-24T14:04:49Z

Squashed.

miri64 · 2019-10-24T14:06:52Z

Removed the empty commit that happened somehow due to squashing the revert commit on the original.

fjmolinas

Murdock si happy! ACK!

miri64 · 2019-10-24T15:22:18Z

Thanks for the review!

fjmolinas · 2019-10-24T15:25:17Z

Thanks for the review!

Thanks for the fix!
