SC2006-NTU-Marketplace

NTU Marketplace App

One stop platform for convenient and efficient purchasing and selling of pre-loved hall items, promoting sustainability by extending the lifespan of goods and decluttering homes.

• Login Details for Accounts

User: chicken
Password: 12345678

User: alibaba
Password: 12345678

Setting up repository

1. Go to a folder where you want the repository to be in
2. Clone the repository git clone https://github.com/natisaver/NTU-Marketplace.git

Setup virtual environment in project

In Windows CMD, ensure you are in the folder of your repository

1. Run python –m venv myenv
2. Run myenv\Scripts\activate
3. Run pip install -r requirements.txt

To run the backend server localhost:8000/

In Windows CMD, ensure you are in the root folder of your repository

1. Run myenv\Scripts\activate
2. Run cd backend
3. Run python manage.py migrate (if running for first time)
4. Run python manage.py runserver

To run the frontend server localhost:3000/

In Windows CMD, ensure you are in the root folder of your repository

1. Run cd frontend
2. Run npm install (if running for first time)
3. Run npm start

To run unit testing

In Windows CMD, ensure you are in the root folder of your repository

1. Run myenv\Scripts\activate
2. Run cd backend
3. Run python manage.py test

Do load testing using Locust

In Windows CMD, ensure you are in the backend folder of your repository

1. In console #1, run your local server using python manage.py runserver
2. In console #2, start locust server using locust -f locustfile.py --host=http://localhost:5000
3. Open web browser and go to http://localhost:8089/
4. Enter number of users and hatch rate (e.g. 100, 10)
5. Start load testing by clicking Start swarming

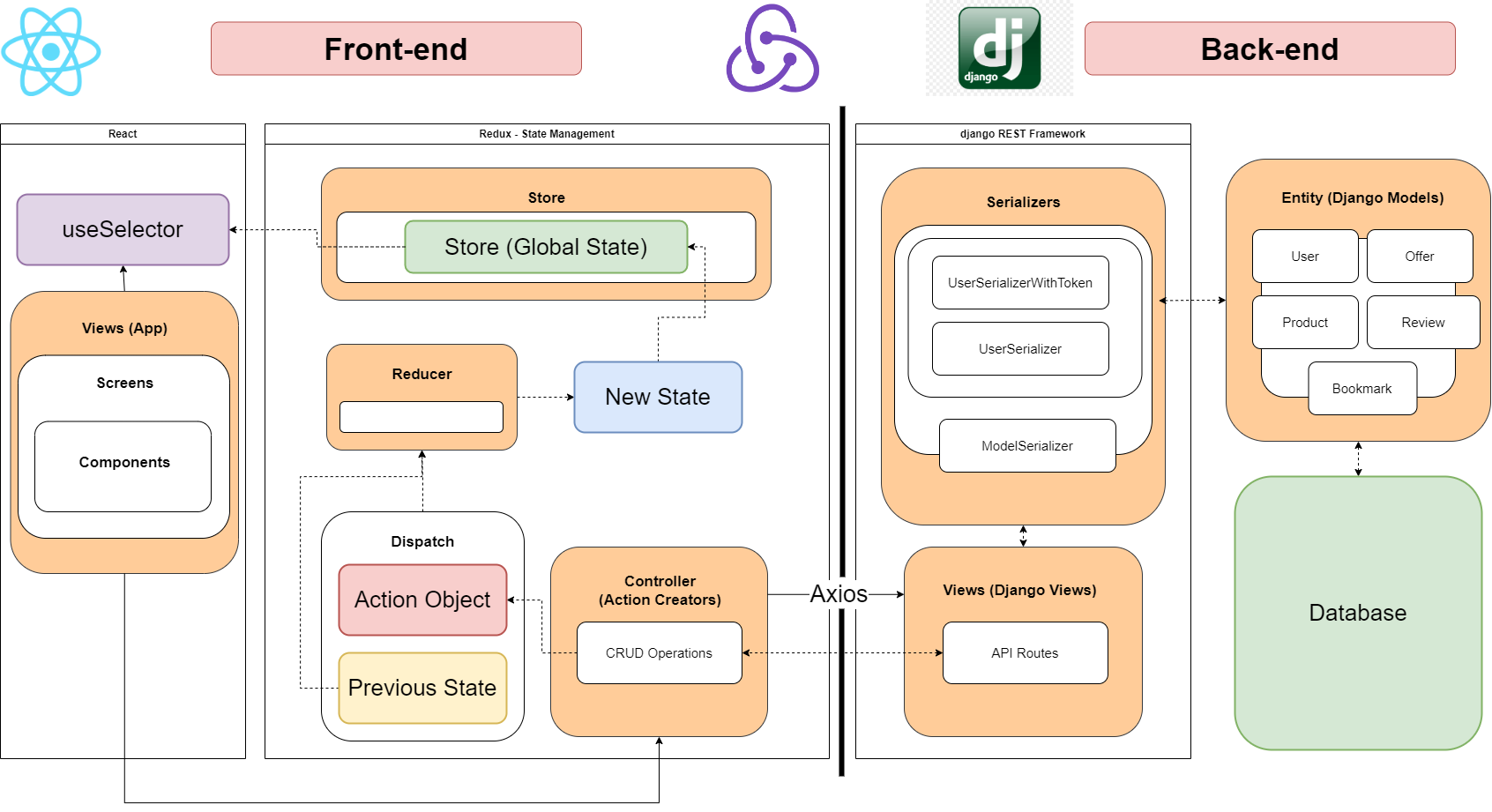

System Architecture (Simple Overview)

Utilises Django Rest Framework for the Backend, and React, Redux (state managment) for Frontend.

• As requests pour in, they are routed by django through specific API routes. Data is queried from the database and represented using the Django model entities, before being repackaged by serializers into a readable format such as JSON for processing. The view acts as an interface between the front and backend.

• In React, these screens/components are able to call CRUD operations by calling various actions that then interact with our API using axios. Depending on the results, different actions are dispatched, resulting in different global states. These states are kept in the store, which can be accessed by future screens and components. We often use an action creator of {type: RESET} to clear state after an execution of specific actions, to ensure "loading" and "success" are returned to False.

Design Patterns:

Singleton Pattern

Used in our Redux State Tree. Download Redux Dev Tools, F12

• Restricts the instantiation of a class to a singular instance and also provides easy access to that instance (UseSelector).

Provider Pattern

With the Provider Pattern, we can make data available to multiple components.

• Rather than passing that data down each layer through props (prop drilling), we can wrap all components in a Provider.
• This ensures Loose Coupling, where state data is independent of the components.

Decorator Pattern

Added decorators, adds new functionality to API View class without modifying its original structure. Here this ensures only post requests are allowed, and the user must be authenticated.

@api_view(['POST'])
@permission_classes([IsAuthenticated])
def editProduct(request):
    p = Product.objects.get(_id=int(request.POST.get('pid')))
    print(request.data)
    p.name=request.POST.get('name')
    p.price=float(request.POST.get('price'))
    p.condition=True if request.POST.get('condition') == "true" else False
    p.tags=request.POST.get('tags')
    p.description=request.POST.get('description')
    p.delivery=True if request.POST.get('delivery') == "true" else False
    p.notes=request.POST.get('notes')
    p.pickupLocations=request.POST.get('pickupLocations')
    print("image", request.FILES.get('image'))
    if (request.FILES.get('image') != None):
        print("pass condition")
        p.image = request.FILES.get('image')
    print(request.data)
    p.save()
    serializer = ProductSerializer(p, many=False)
    return Response(serializer.data)

Black Box Testing:

Boundary Value Testing (Price)

Lower Boundary	-0.01	0.00	1.00
Upper Boundary	9999.98	9999.99	10000.00

• Price range valid equivalence class: ($0.00 <= x <= $9999.99)
• Valid boundary values: {0.00, 9999.99}
• Invalid boundary values: {-0.01, 10000.00}

Equivalence Class Testing (Create User)

Set one column as invalid, and all columns as valid for each test case

• Here the Listing Title is "Naproxen" which is a restricted item, preventing item creation

White Box Testing

Basis Path Testing

Cyclomatic Complexity Value = Number of Decision Points + 1 = 3 + 1 = 4

• Generate 4 Test Cases to ensure coverage of the process.
• The following is the make offer process:

Load Testing

Using Locust with the following parameters:

Param	Value
Users	1000
Hatch Rate	10 requests per second
Wait	1 to 5

• This was tested on our get userInfo route, which retrieves user details if they are logged in:

from locust import HttpUser, between, task

class MyUser(HttpUser):
    wait_time = between(1, 5)

    @task
    def get_user_info(self):
        user_id = 1 # or any other valid user id
        self.client.get(f'/api/userinfo/{user_id}')

• Results:

Param	Value
Final RPS	154.2 (0% Failures)
