FIFO Model in Verilog

This repository contains a complete Verilog implementation of a synthesizable FIFO (First-In-First-Out) Model, supporting parameterized data width and depth, robust status flags, and a comprehensive testbench for verification.

---

Table of Contents

• Overview
• Block Diagram
• I/O Port Descriptions
• Features
• Modules
• Testbench Description
• Simulation

---

Overview

This project implements a synchronous FIFO buffer with configurable parameters:

• Parameterized data width (FWIDTH) and depth (FDEPTH)
• Separate memory block module for data storage
• Comprehensive testbench validating all edge cases
• Real-time status flags to monitor FIFO condition

---

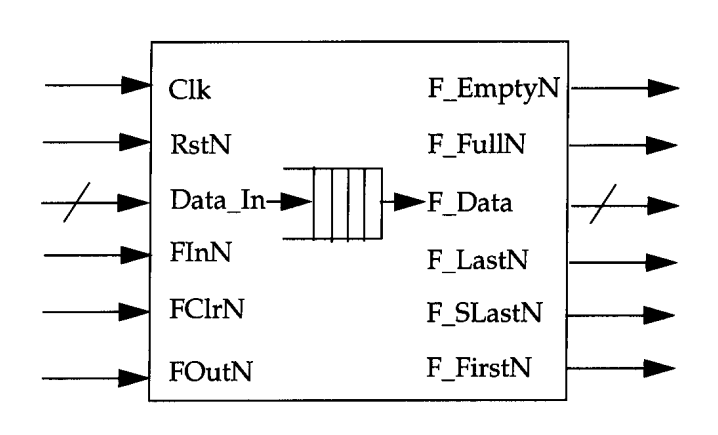

Block Diagram

---

I/O Port Descriptions

Note: All signals ending in N are active low.

Input Ports

Port Name	Description
Clk	Clock signal
RstN	Reset signal
Data_In	32-bit input data to FIFO
FInN	Write-enable signal
FClrN	Clear FIFO
FOutN	Read-enable signal

Output Ports

Port Name	Description
F_Data	32-bit output data from FIFO
F_FullN	FIFO is full
F_EmptyN	FIFO is empty
F_LastN	Space left for one more data value
F_SLastN	Space left for two more data values
F_FirstN	Only one data value remains in FIFO

---

Features

• Parameterization: Configurable FIFO width & depth using macros (FWIDTH, FDEPTH)

• Synchronous Design: Both write and read synchronized to the clock

• Modular Architecture: Dedicated memory block for clean design separation

• Status Flags:

  • F_EmptyN → FIFO is empty
  • F_FullN → FIFO is full
  • F_FirstN → Only one element left
  • F_LastN → One space left
  • F_SLastN → Two spaces left

• Robust Testbench: Tests all operational and boundary conditions

---

Modules

1. FIFO_Model.v

• Controls FIFO logic (read/write pointers, counter)
• Generates status signals

2. FIFO_MEM_BLK.v

• Implements synchronous memory storage
• Controlled writes, asynchronous reads

3. FIFO_Model_tb.v

• Comprehensive testbench
• Stimuli generation and flag verification

---

Testbench Description

The testbench verifies FIFO functionality through:

• Clock generation and reset sequencing

• Continuous writes until FIFO is full

• Validation of full and overflow conditions

• Continuous reads until FIFO is empty

• Validation of empty and underflow conditions

• Status flag checks:

  • F_FirstN → One element left
  • F_SLastN → Two spaces left
  • F_LastN → One space left

Verbose output is generated using $display for debugging.

---

Simulation

This design can be simulated with:

• ModelSim
• Vivado XSIM
• Verilator
• Synopsys VCS

Example (ModelSim):

# Compile all source files
vlog FIFO_MEM_BLK.v FIFO_Model.v FIFO_Model_tb.v

# Simulate
vsim FIFO_Model_tb

---
