Zookeeper Overview

Design Principles

• All of the metadata and the communication between NameNodes and DataNodes are stored in ZooKeeper. Therefore, NameNodes and DataNodes never talk to each other directly.
• The NameNode doesn’t need to store any metadata to be functional.
• Tasks that require timeouts (heartbeats, waiting for BLOCK_RECEIVED acknowledgements) assume that the global clocks are in sync.
• Some tasks require a NameNode to iterate over an entire directory of ZNodes. This is slow, but these operations only occurs on small directories or infrequently.

NameNode

• NameNodes only need to communicate with DataNodes to tell them to delete blocks or replicate blocks.
  • They send these commands by putting items onto work queues in Zookeeper's filesystem.
  • Each DataNode has its own delete queue and replicate queue in ZooKeeper.
  • NameNodes write items to the queues, and DataNodes watch their respective queues for new commands.
• NameNode operations that require multiple Zookeeper calls are stored in a WorkQueue.
  • If a NameNode dies while performing a multi-step task, another can take it's place using this queue.
  • Implications:
    • The subtasks must not change during their execution.
    • Executing a subtask more than once does not change the correctness of the full task.
      • i.e. There may exist more replicas of a block in the system than the replication factor at a given time. These COULD be cleaned up every once in awhile by daemon NameNode processes (currently not implemented).

DataNode

• DataNodes communicate with the NameNodes by putting items onto a workqueue and by modifying ZNodes in ZooKeeper’s “/health” directory.

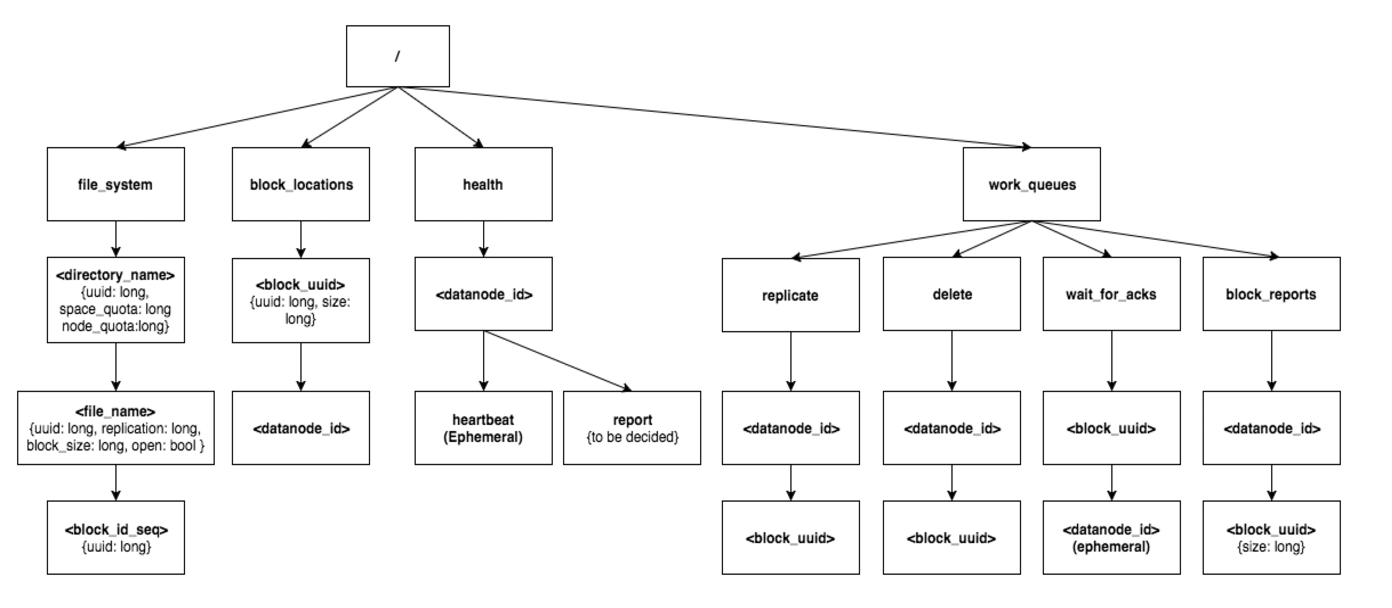

ZNode Tree Structure

Each bullet point represents a root (/) level ZNode in ZooKeeper. The nested bullet points represent ZNode children.

* Represents a mutable data element.

<words-in-angled-brackets> denote a placeholder.

• /file_system
  • <directory_name>: {* space_quota: long, * node_quota:int}
    • <file_name>: {replication_factor: int, block_size: long, * under_construction: int, file_type: int, access_time: uint64, owner: string, group: string, length: uint64}
      • <block_id_seq>: {id: UUID}
• /health
  • <datanode_id>
    • Heartbeat
    • stats
    • blocks
      • <block_uuid>
• /block_locations
  • <block_uuid>: {file: string, replication_factor: int}
    • <datanode-id>
• /work_queues
  • wait_for_acks
    • <block_uuid>: {timeout : long, replication_factor : int}
      • <datanode-id>
  • replicate
    • <datanode_id>
      • <block_uuid>
  • delete
    • <datanode_id>
      • <block_uuid>
  • block_reports
    • <datanode_id>
      • <block_uuid> with payload size_of_block

File System Use Cases for Zookeeper

mkdir

• No locking required.
• NameNode calls ZKNNClient::mkdir(path, create_parent)
  • Creates a ZNode at /fileSystem/<path>
• If directory already exists ZK will throw an exception.
• No race conditions between mkdir and delete

create

• No locking required.
• NameNode calls ZKNNClient::create_file(path, replication_factor, block_size, create_parent)
  • ZKNNClient will create a ZNode at /fileSystem/<path>
• Returns success boolean.
  • This should return the file info, since the client would not make the transaction if it couldn't create the file at the given location. Currently, the client must make a file info request following this.
• If file already exists ZK will throw an exception.

get_block_locations

• No locking required.
• NameNode calls ZKNNClient::get_block_locations(path, offset, length).
  • Checks that the file is not under construction.
  • Gets the block size for the file

Let block_locations be a list of (block UUID, DataNode ID) tuples

for (i = offset/blocksize ... (offset + length)/blocksize) {
  UUID = the name of “fileSystem/<path>/block-<i>”’s child ZNode
  DataNode ID = child ZNode of “block_locations/<UUID>” that is closest to the client
  Add (UUID, DataNode ID) to block_locations
}
return block_locations

• Proximity is determined by the DataNode's "xmit" count. This is the number of in-progress transmits for a DataNode.

add_block

• No locking required.
• NameNode calls ZKNNClient::add_block(path, previousBlock)
  • Checks that the file is under construction
  • Checks last block was successfully ack’d (check /work_queues/wait_for_acks/<block_uuid>)
  • Adds a sequential child ZNode to the path’s ZNode at namespace/<path>/block-<#>
    • Generates a UUID and sets it as the new ZNode’s payload
  • Creates a new ZNode at block_locations/<UUID>
  • Chooses REPL_FACTOR target DataNodes to replicate the new block onto
  • Create a ZNode at /work_queues/wait_for_acks/<block_uuid> with payload REPL_FACTOR
  • Returns UUID of new block, DataNodes on which to replicate the new block

delete

• No locking required.
• NameNode calls ZKNNClient::delete(path, recursive)
  • Check that the file is not under construction
  • Assumes path is to a file
  • Get all the Block UUIDs for the file
  • Multi-transaction:
    • For each UUID:
      • For each child ZNode DataNodeID in /block_locations/<datanode_id>
        • Create a new sequential ZNode at work_queues/delete/<datanode_id>/<block_id_seq> with payload UUID
    • Delete the ZNode corresponding to the path.

close

• No locking required.
• NameNode calls ZKNNClient::close(path)
  • Check that the file IS under construction
  • For each block UUID in the file:
    • If UUID is in /work_queues/wait_for_acks, ensure that /work_queues/wait_for_acks/<block_uuid> has at least MIN_REPL_FACTOR children;
    • Otherwise, return false
  • Return true

Block Management Use Cases for Zookeeper

ReportCorruptBlock

• No locking required.
• Looks up current DataNodes for a block
• Multi-transaction:
  • Place BlockUUID in delete queue for any corrupt DataNode
  • Place BlockUUID in replicate queue for a DataNode that does not currently have a replica of the block.

WaitForAcks Clean Up

• A NameNode needs to ensure that a block has been properly replicated after a client calls AddBlock. If not, it needs to create replication work items.
• Iterates over the child ZNodes in work_queues/wait_for_acks
  • If child has REPL_FACTOR children
    • Lock that child
    • Delete the child
    • Delete lock
  • If current time > child's replication timeout
    • If that child has 0 children, do nothing
    • Lock that child
    • Find REPL_FACTOR - child's number of children target DataNodes to replicate onto
      • Creat a ZNode at word_queues/replicate/<target-ID>/block-<#> with payload UUID.
    • Delete the child
    • Delete the lock

Processing Block Reports

• All NameNodes will watch the children of /work_queues/block_reports/ using get_children.
• A watch is triggered by a new block report from DataNode with <datanode_id>:
  • NameNode locks /work_queues/block_reports/<datanode_id>, and for each child ZNode UUID with payload size_of_block:
    • If /health/<datanode_id>/<UUID> exists:
      • Check that payload sizes are equal.
      • If not, report <datanode_id>'s block as corrupt.
    • If /health/<datanode_id>/<UUID> does not exist:
      • Create /health/<datanode_id>/<UUID> with payload size_of_block.
      • Create a new ZNode at /block_locations/<UUID>/<datanode_id>
  • NameNode checks /health/<datanode_id>/blocks, and for each child ZNode UUID with payload size_of_block:
    • If /work_queues/blockreport/<datanode_id>/<UUID> does not exist:
      • Delete /health/<datanode_id>/blocks/<UUID>
      • Delete /block_locations/<UUID>/<datanode_id>
• Note: the lock on /work_queues/block_reports/<datanode_id> is not deleted until after processing /health/<datanode_id>/blocks.

Cluster Health Use Cases for Zookeeper

Watching for DataNode death

• Each NameNode watches all ZNodes at /health/<datanode_id>.
• If the watch is triggered and there is no ephemeral ZNode child for a DataNode
  • Lock /health/<datanode_id>
  • For each block (ZNode UUID) in /health/<datanode_id>/blocks:
    • Delete ZNode /block_locations/<UUID>/<datanode_id>.
    • Find a new target DataNode for the block.
    • If /work_queues/delete/<datanode_id>/<UUID> does not exist, create /work_queues/replicate/<targetID>/<UUID>
  • For each ZNode in /work_queues/replicate/<datanode_id>/, re-replicate the block and delete the ZNode.
  • Delete ZNode /health/<datanode-id> recursively.
  • Delete the lock.

DataNode Use Cases for Zookeeper

BlockReceived

• Acknowledges that this DataNode has received some block with .
• Locks /work_queues/wait_for_acks/<block-uuid>
• Creates /work_queues/wait_for_acks/<block-uuid>/<datanode-id>
• Deletes lock.
• Create /block_locations/<block-uuid>/<datanode-id>
• Create /health/<datanode-id>/<block-uuid> with payload size_of_block.

Replicating Blocks

• DataNodes watch /work_queues/replicate/<datanode_id>
• When the watch is triggered, the DataNode reads the first child's payload block_uuid.
• DataNode replicates block with the given UUID.
• Creates /health/<datanode_id>/<block_uuid> with payload size_of_block
• Creates /block_locations/<block_uuid>/<datanode_id>
• DataNode deletes /work_queues/replicate/<datanode_id>/<block_uuid>

Deleting Blocks

• DataNodes watch /work_queues/delete/<datanode_id>/
• When the watch is triggered, the DataNode reads the first child's payload block_uuid.
• DataNode deletes the block with the given UUID.
• DataNode deletes /work_queues/delete/<datanode_id>/
• DataNode deletes /health/<datanode_id>/<block_uuid>
• DataNode deletes /block_locations/<block_uuid>/<datanode_id>/

Writing a heartbeat

• Create /health/<datanode_id>/heartbeat if it doesn't exist.
  • This ZNode has DATANODE_IS_DEAD timeout.
• Write each storage failure sequentially to /health/<datanode_id>/failures

Writing a Block Report

• Create /work_queues/blockreport/<datanode_id>
• For each block with <block_uuid> on the DataNode:
  • Create /work_queues/blockreport/<datanode_id>/<block_uuid> with payload size_of_block
