System Usability Scale Web Application

Table of contents

Click me

• Overview
• Live demo: https://ux-sus-web.web.app/index
• Built with
• Key features
• Run locally
• Development process

Overview

The SUS web application is a full-stack web application that allows UX designers to efficiently measure the usability of projects and services, such as hardware, software, mobile devices, websites, and applications, through the System Usability Scale (SUS).

Live demo: https://ux-sus-web.web.app/index

• UI

• Deployed on Vue (front-end) and Firebase (server + DB)

UI@蔡永霖 2023 | F2E@Dastine 2023

Built with

Front-end

• Vue - Frontend framework for creating reusable components
• Tailwind CSS - Utility-first CSS framework
• PrimeVue - UI library for Vue
• Pinia - Store library for Vue

Back-end

• Firebase - Open-source relational database management system

Key features

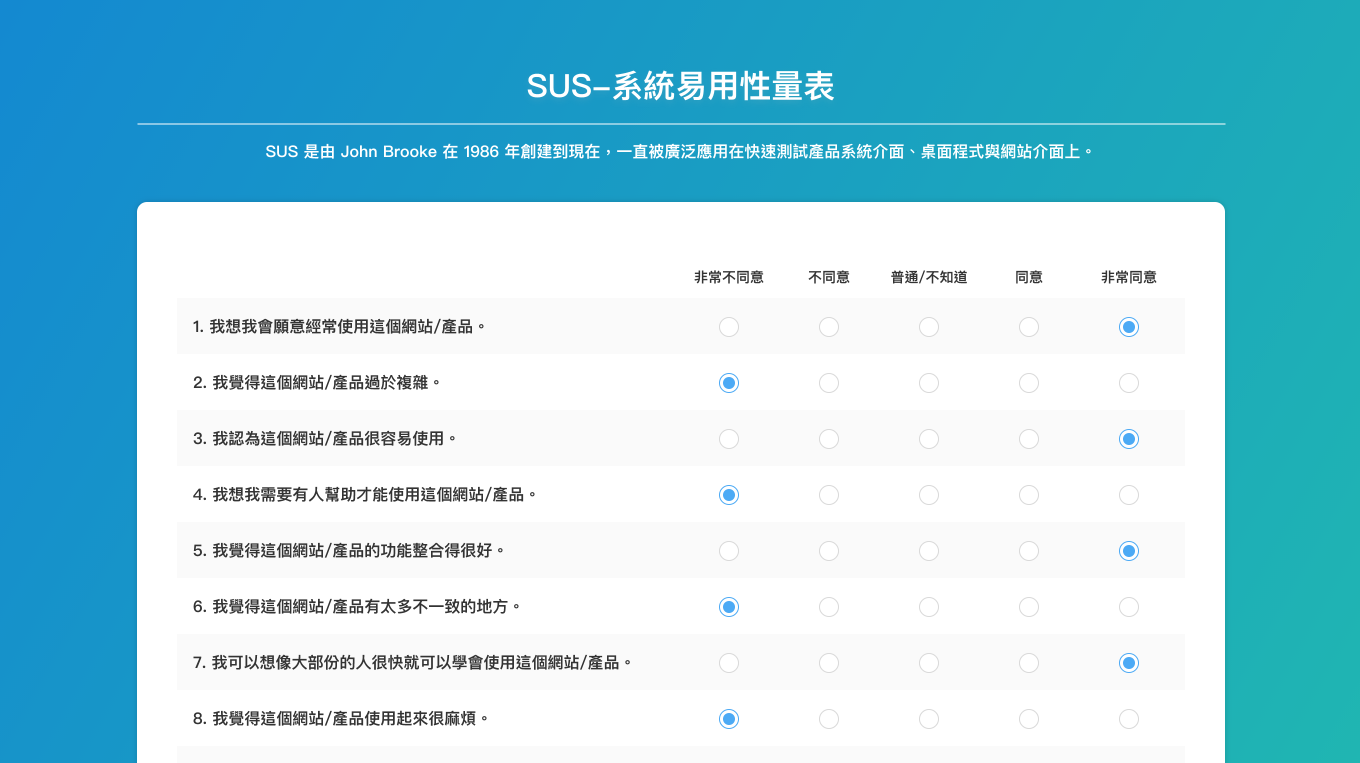

Answer the survey based on SUS questions.

View test records with table UI.

Other features

Authentication (Tester / Admin)

Future features

• Sign up a new user
• Delete test records through the UI button
• Use restful API
• And more...

Run locally

1. Clone this project to your local environment

$ git clone "https://github.com/dastine0308/system-usability-scale.git"

2. Install required packages

$ npm install

3. Start development server. By default, server will be listening on http://localhost:5173

$ npm run dev

4. Accounts for testing：

# Tester
project：(select project)
password：0000

# Admin
project：(select project)
password：VL905

5. Type the following command to stop the development server

ctrl + c

Deployment (Firebase)

1. Create a Firebase Project on the Firebase Console

2. Add .env file and fill in your Firebase config variables:

VITE_API_KEY = "<apiKey>",
VITE_AUTH_DOMAIN = "<authDomain>",
VITE_PROJECT_ID = "<projectId>",
VITE_STORAGE_BUCKET = "<storageBucket>",
VITE_MESSAGING_SENDER_ID = "<messagingSenderId>",
VITE_APP_ID = "<appId>",
VITE_MEASUREMENT_ID = "<measurementId>"

3. Install the Firebase tools: npm install -g firebase-tools and log in firebase login

4. Deploy it with firebase deploy

Development process

File structure

Details

|-- firebase
|   |__ config.js
|-- public                    # 不進行打包編譯的檔案，資料夾（不會壓縮、不會加 hash 值）e.g., icon
|-- src
|   |-- assets                # 靜態資源相關 e.g., 圖片
|   |   |-- imgs
|   |   |__ style
|   |   |   |-- vendors       # 第三方套件樣式
|   |   |   |__ layout.css
|   |-- components
|   |   |-- form
|   |   |   |-- LoginForm.vue     # 登入表單元件
|   |   |   |__ SurveyForm.vue    # 測試問卷元件
|   |   |-- layout
|   |   |   |-- LayoutHeader.vue  # header模版
|   |   |   |__ LayoutContent.vue # 內容模版
|   |-- plugins               # 共用插件
|   |   |-- api
|   |   |   |__ index.js
|   |   |__ user
|   |       |__ index.js
|   |__ router
|   |   |__ index.js
|   |__ stores                # pinia 全域狀態
|   |   |-- pinia.js
|   |   |__ useUser.js
|   |__ pages
|   |   |-- Index.vue         # 首頁
|   |   |-- MainPage.vue      # 主要頁
|   |   |__ Result.vue        # 結果頁
|   |-- App.vue               # 專案的根元件
|   |__ main.js               # 專案的程式進入點
|-- .env                      # 環境變數
|-- .eslintrc.cjs
|-- .firebaserc
|-- .gitignore
|-- .prettierrc.json
|-- firebase.json             # firebase 設定檔
|-- index.html                # 專業模版， Vue 應用程式會透過這個 HTML 頁面來進行
|-- package.json              # 定義相依的相關套件及應用程式的資訊
|-- postcss.config.js         # postcss 設定檔
|-- tailwind.config.js        # tailwind css 設定檔
|__ vite.config.js            # vite 設定檔
