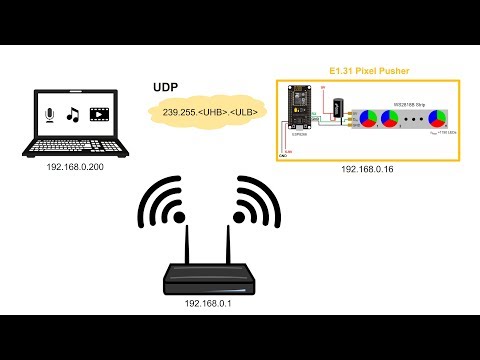

E131_PixelPusher

Minimalistic Async code around Async E131 for ESP8266/ESP32

• Completely Async
• Web-interface to set starting universe, unicast/umulticast, total number of universes
• WiFiManager Captive Portal to get WiFi credentials (Compile with -DUSE_EADNS for ESP8266)
• Subscribes to E131 multicast
• Connect RX/GPIO3 to DIN of NeoPixel strip, and any PIN (<GPIO32) specified for ESP32
• Upload included firmware.bin at http://<IP_ADDRESS>/update for ESP8266, compile your own for ESP32
• Included relavent lines for APA102/Dotstar LED strip: Comment //#define USE_NEOPIXELS xxx and uncomment #define USE_DOTSTAR
  • ESP8266 Hardware SPI: Uses GPIO14(SCK) for CLOCK and GPIO13(MOSI) for DATA
  • ESP32 Hardware SPI: Uses GPIO18(SCK) for CLOCK and GPIO23(MOSI) for DATA

Libraries Needed

platformio.ini is included, use PlatformIO and it will take care of installing the following libraries.

Library	Link	Platform
ESPAsyncE131	https://github.com/forkineye/ESPAsyncE131	ESP8266/32
ESPAsyncUDP	https://github.com/me-no-dev/ESPAsyncUDP	ESP8266
ESPAsyncTCP	https://github.com/me-no-dev/ESPAsyncTCP	ESP8266
NeoPixelBus	https://github.com/Makuna/NeoPixelBus	ESP8266/32
ESPAsyncWiFiManager	https://github.com/alanswx/ESPAsyncWiFiManager	ESP8266/32
ESPAsyncDNSServer	https://github.com/devyte/ESPAsyncDNSServer	ESP8266
ESP Async WebServer	https://github.com/me-no-dev/ESPAsyncWebServer	ESP8266/32
AsyncTCP	https://github.com/me-no-dev/AsyncTCP	ESP32
Adafruit's Dot Star	https://github.com/debsahu/Adafruit_DotStar	ESP8266/32

Pushing E1.31 UDP Data

Jinx

• Download Jinx from here
• Setup instructions: see video

LEDfx

• Download and installation instructions for LEDfx are here
• Setup instructions: see video

xLights

• Download xLights from here
• Setup instructions: see video
