FreeITSM - Open Source Service Desk Platform

A comprehensive web-based IT Service Management (ITSM) platform with 13 integrated modules covering a unified attention dashboard, tickets, assets, knowledge, change management, calendar, morning checks, reporting, software inventory, dynamic forms, contracts, service status, and system administration. Includes analyst account management with password reset and TOTP multi-factor authentication.

Screenshots

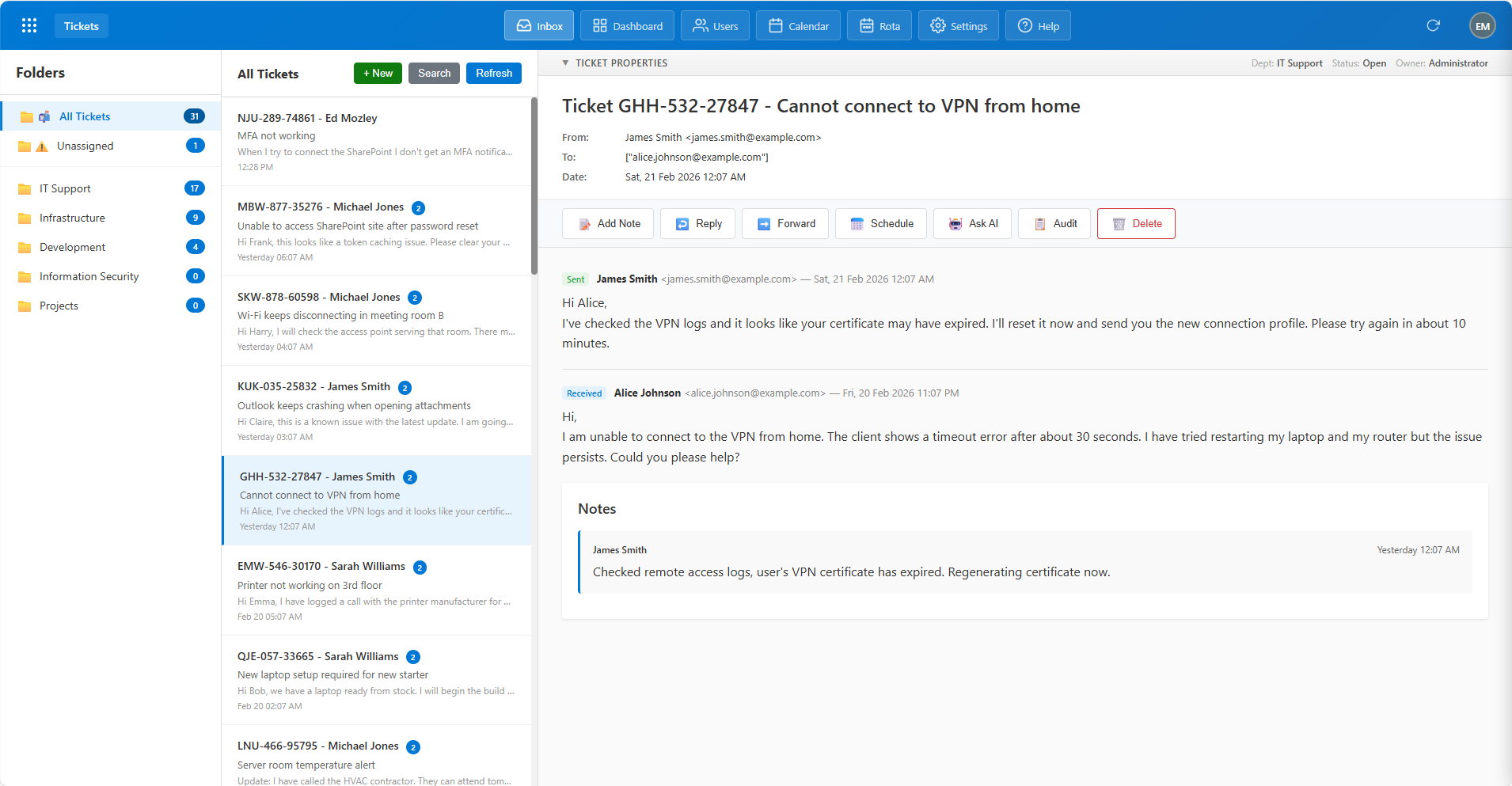

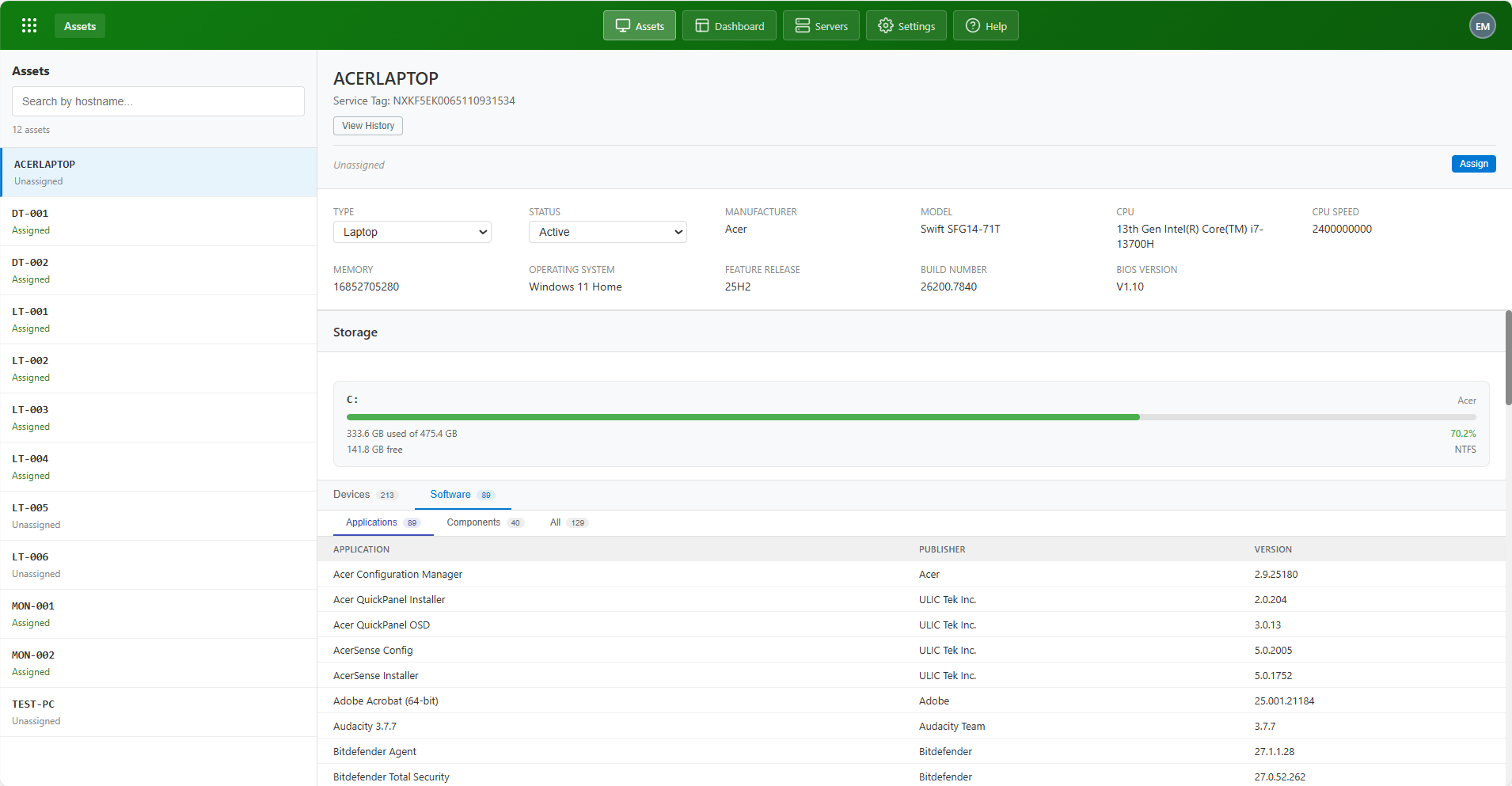

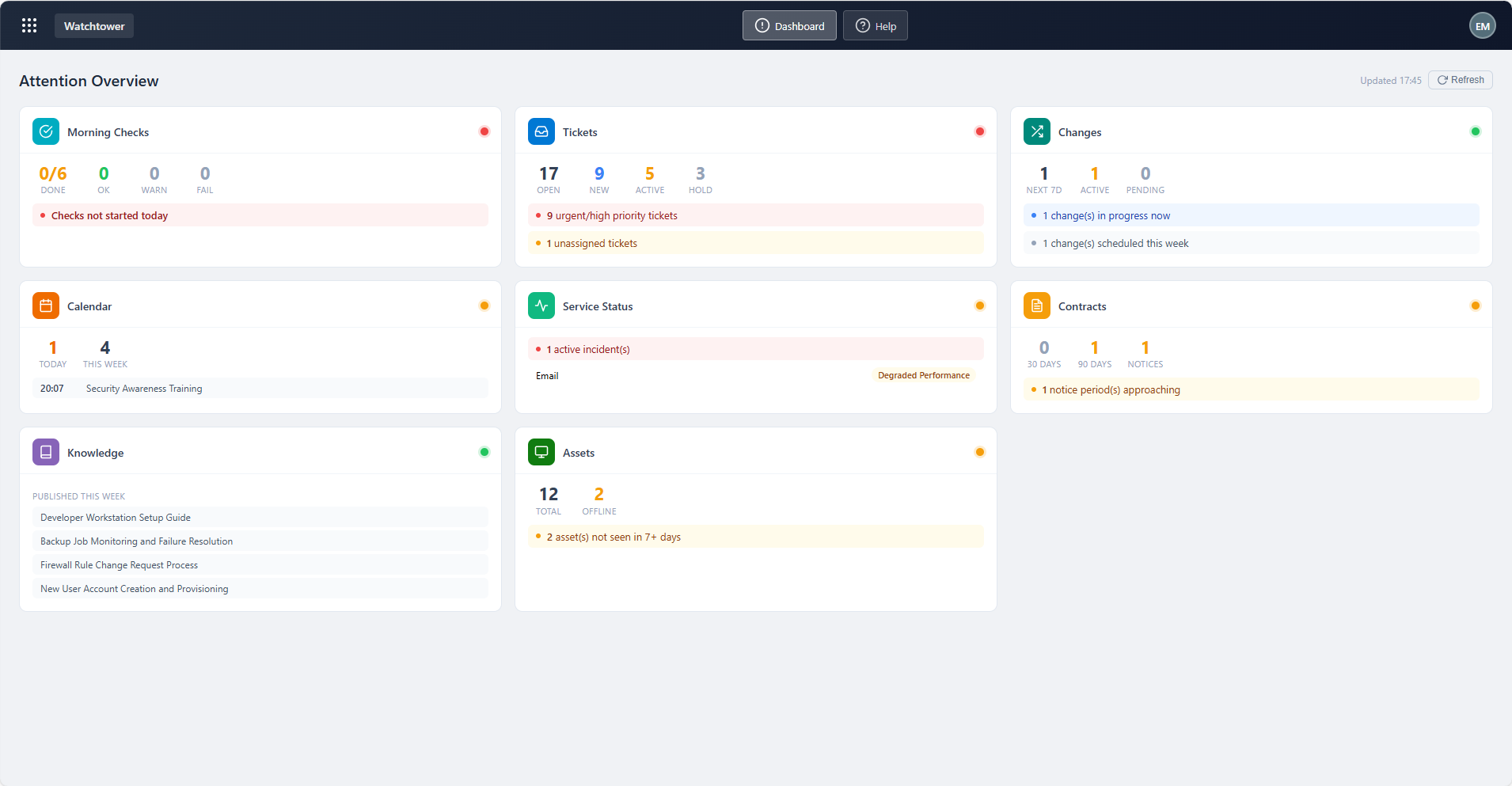

Watchtower	Tickets	Assets

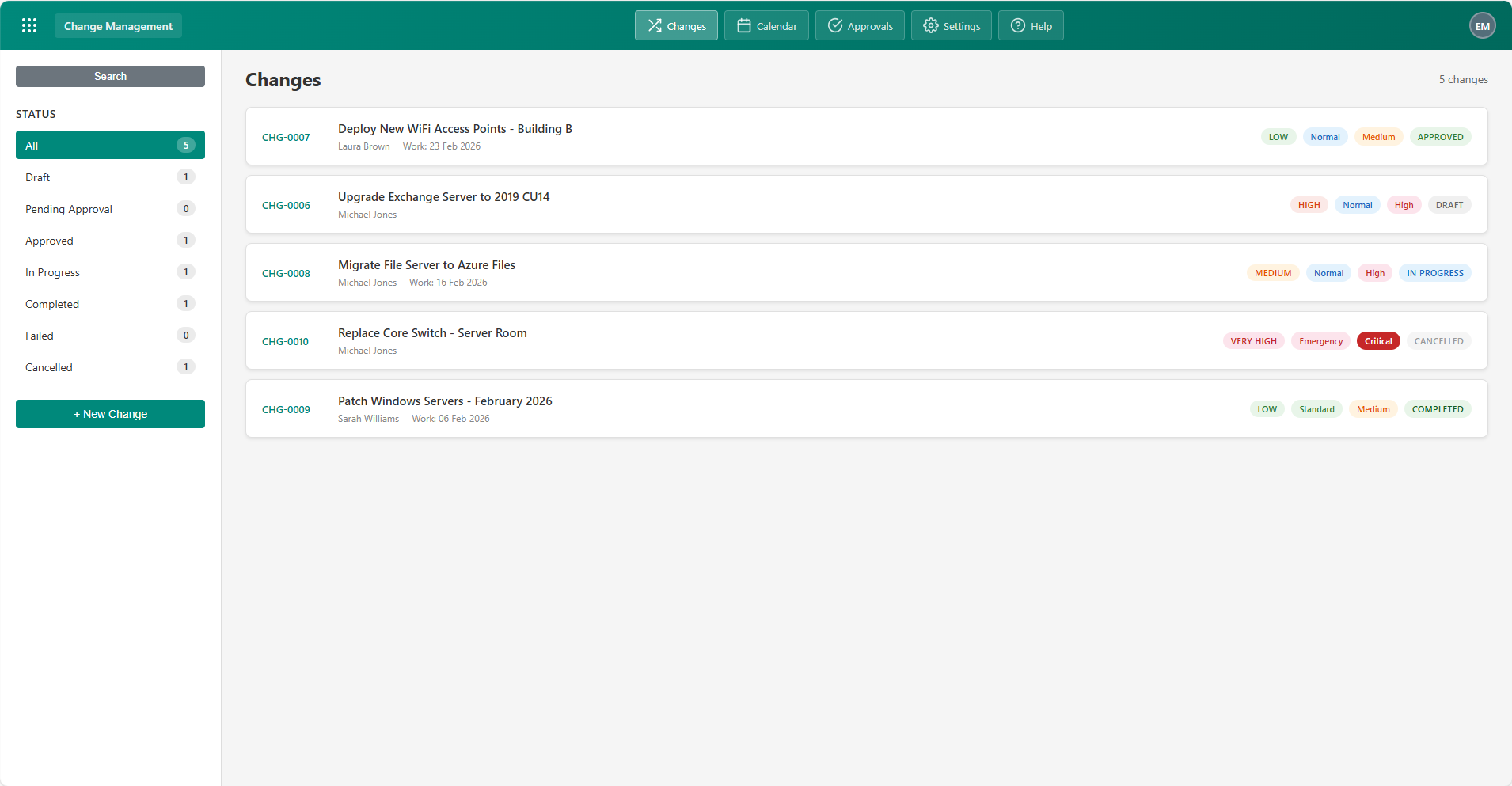

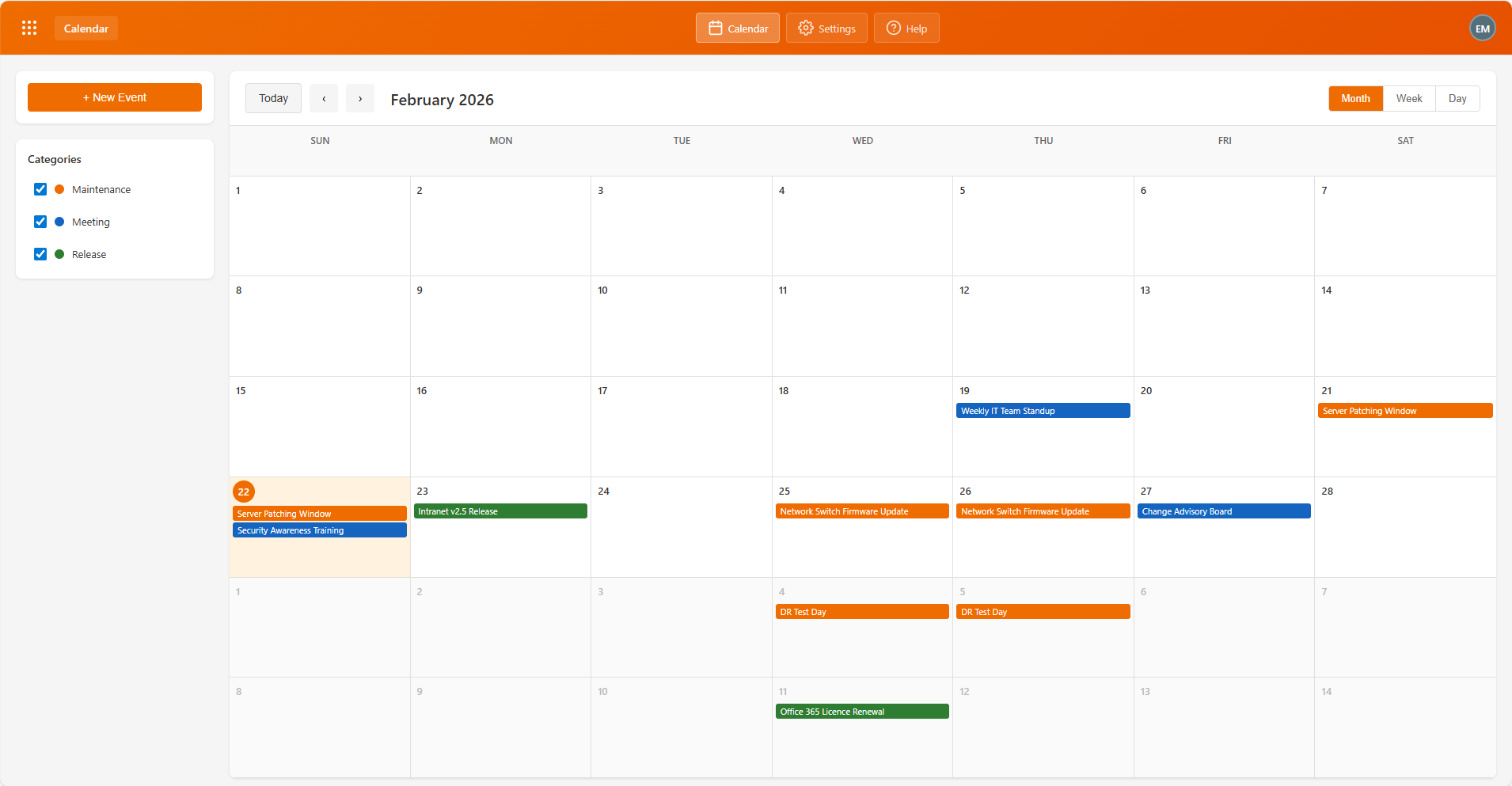

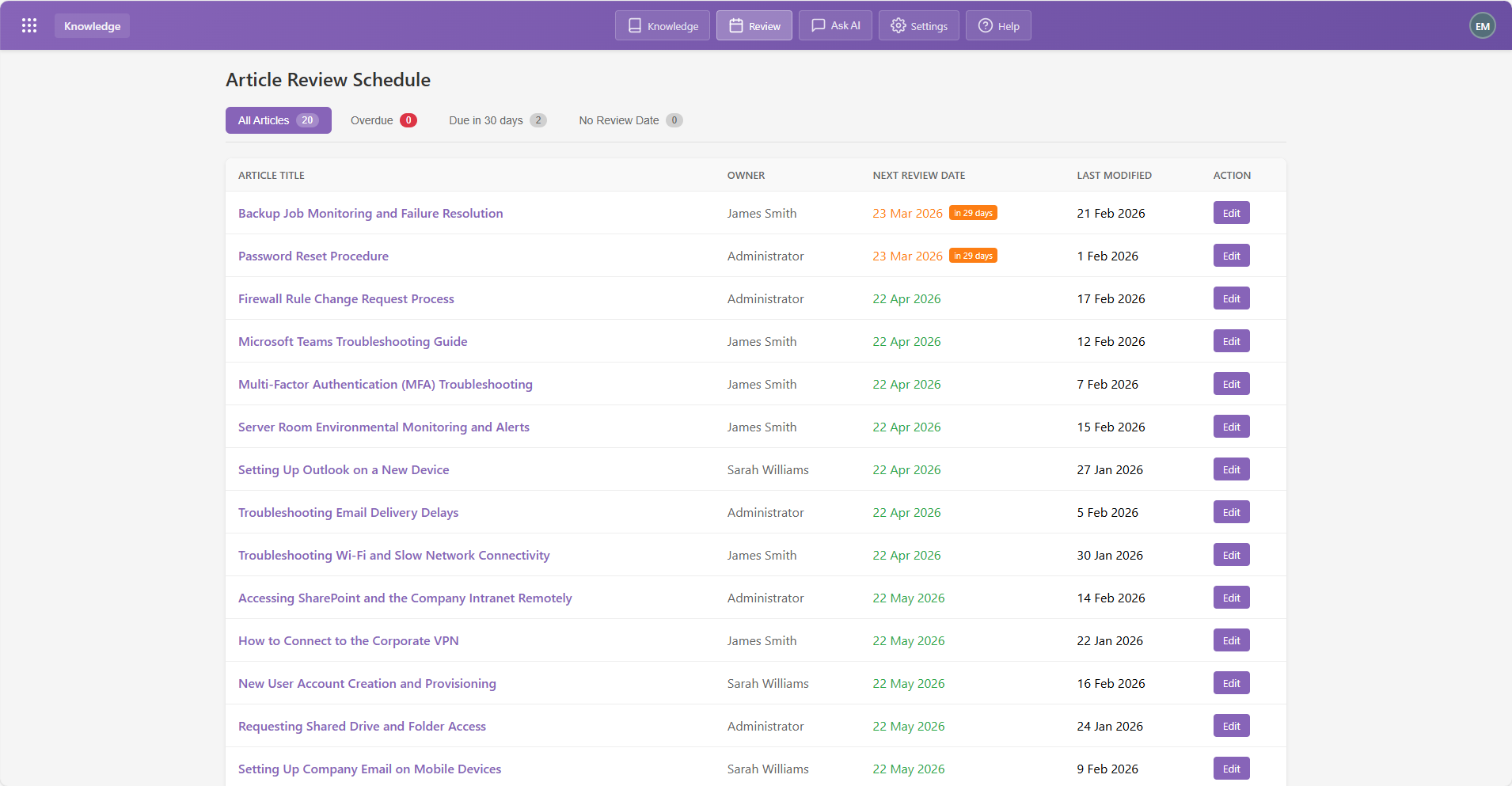

Knowledge	Changes	Calendar

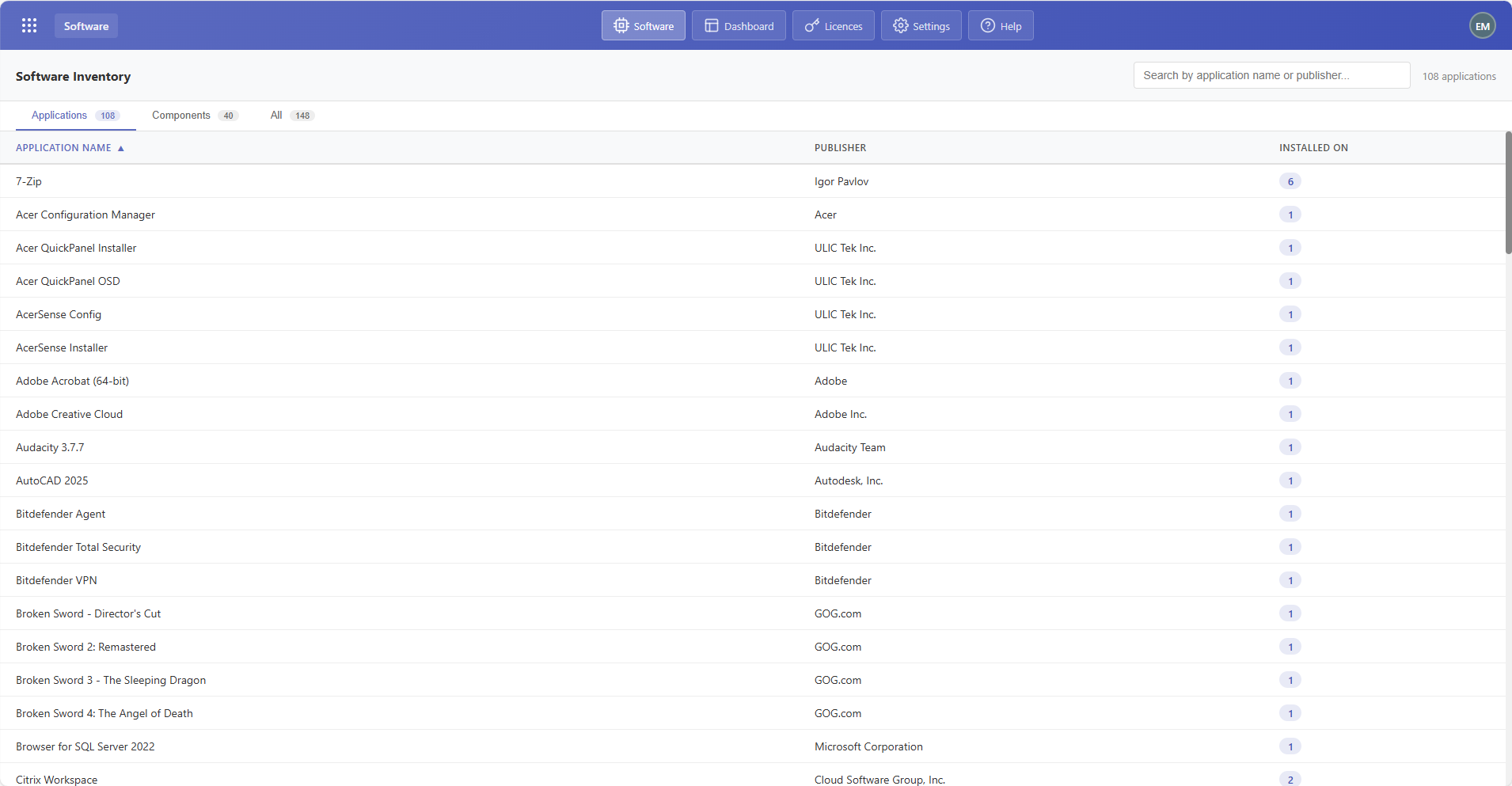

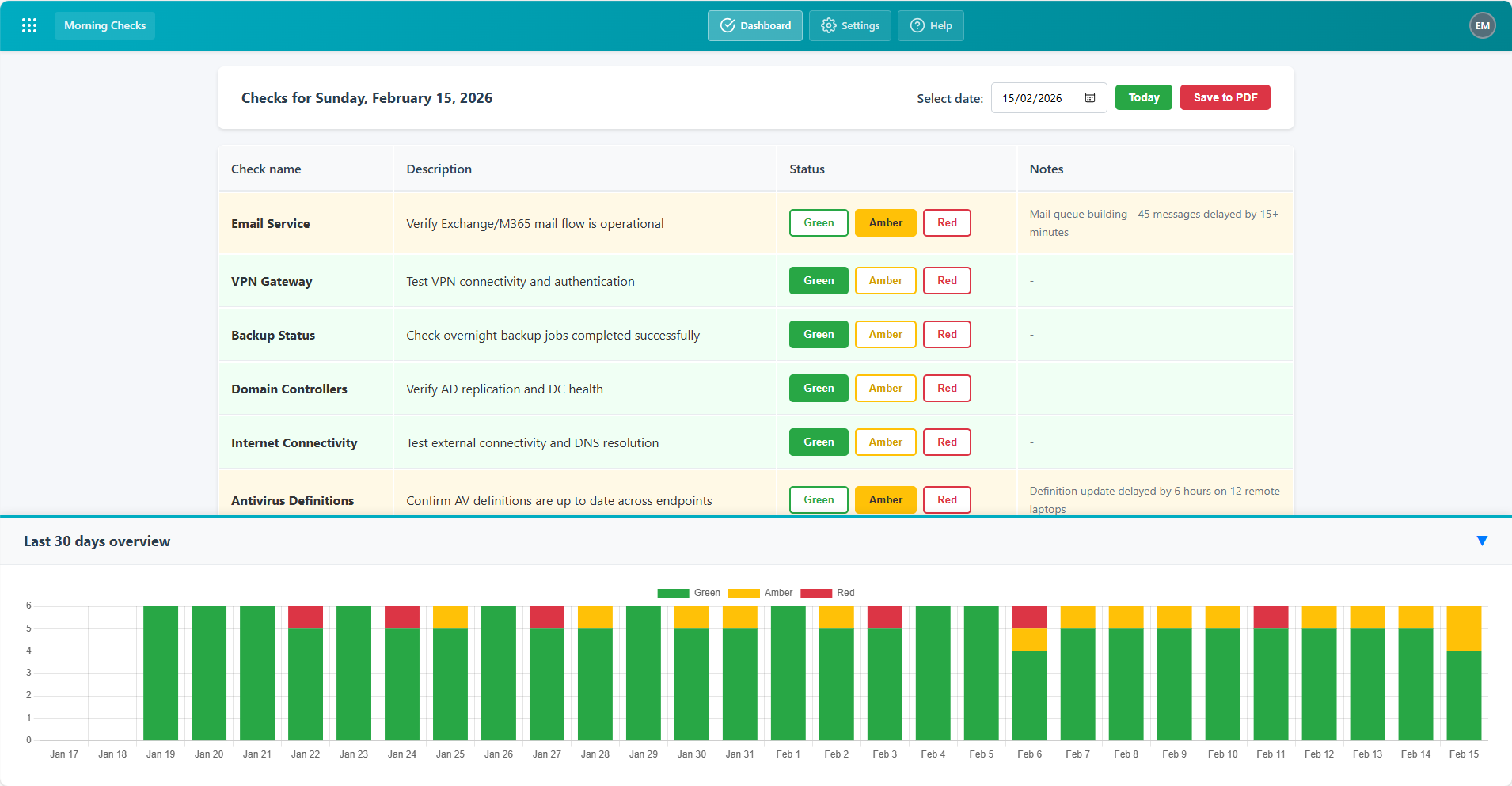

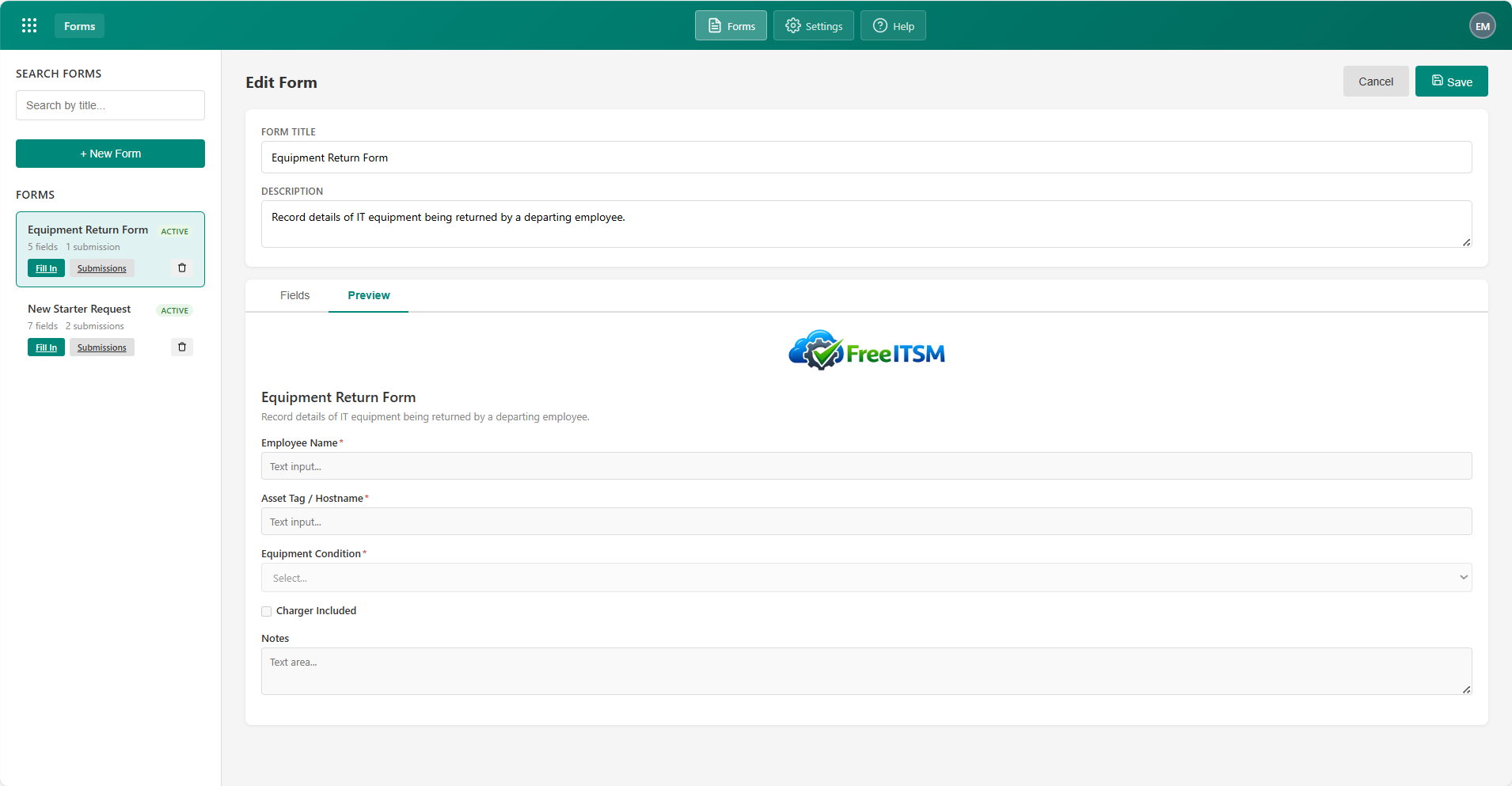

Morning Checks	Software	Forms

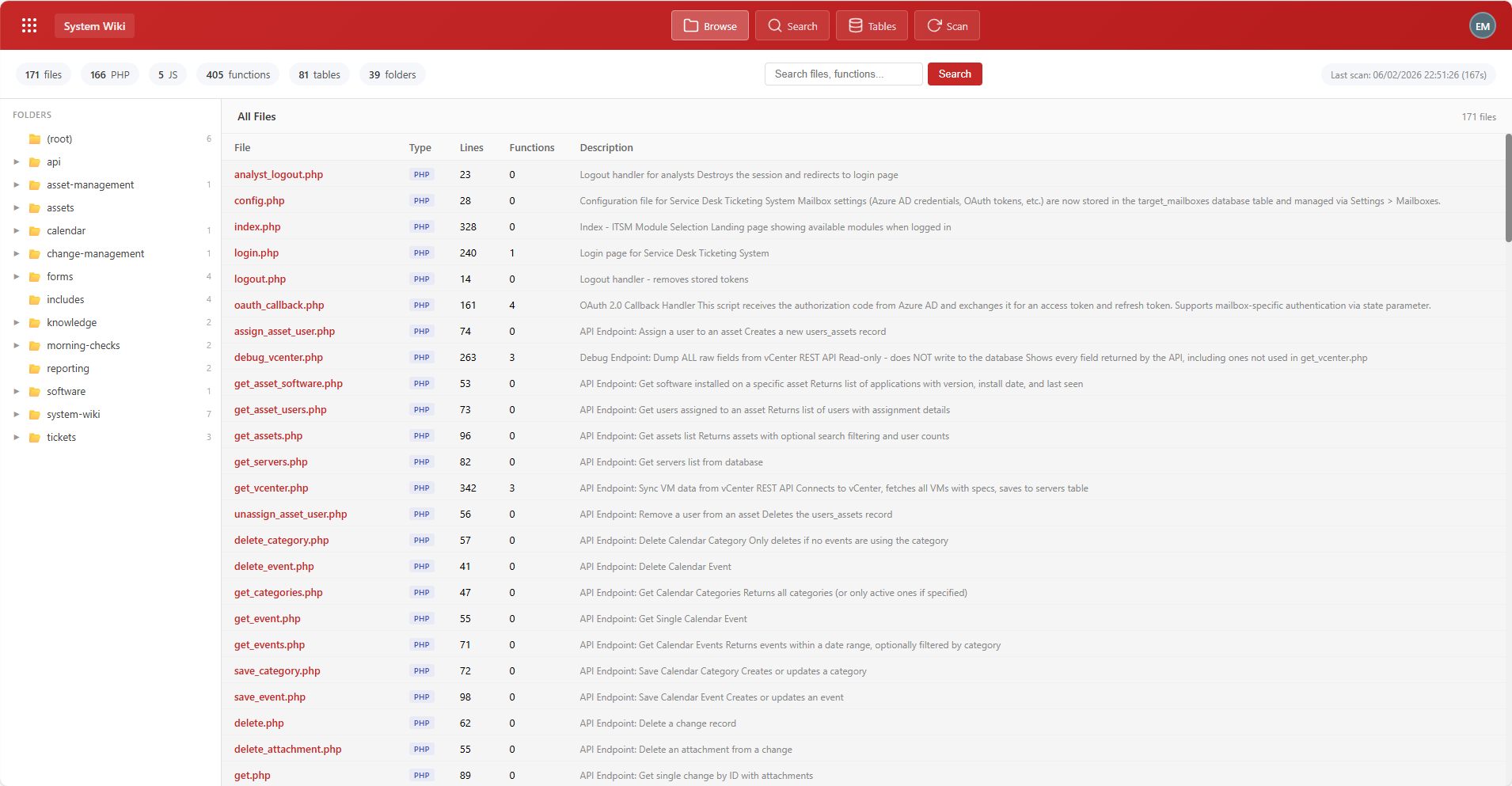

Contracts	System Wiki

View all 57 screenshots →

Screenshots
Quick Start
Technology Stack
ITSM Modules
Directory Structure
Shared Components
Module Details
- Watchtower
- Tickets
- Assets
- Knowledge
- Change Management
- Calendar
- Morning Checks
- Reporting
- Software
- System
- Forms
- Contracts
- Service Status
- Self-Service Portal
API Reference
Database
Security
Key Workflows
Development Notes
File Locations Quick Reference

🚀 Quick Start

Docker (Recommended)

The fastest way to get FreeITSM running — no PHP, MySQL, or web server setup required.

git clone https://github.com/edmozley/freeitsm.git
cd freeitsm
docker compose up -d

Then open http://localhost:8080/setup/ to verify the installation and create your admin account.

Requires Docker Desktop (Windows/Mac) or Docker Engine (Linux).

Manual Installation

Prerequisites

Web Server: WAMP, XAMPP, LAMP, or any PHP-capable web server
PHP: 7.4 or higher (tested up to 8.4)
Database: MySQL 8.0 or higher (included with WAMP/XAMPP)
Extensions: PHP PDO, pdo_mysql, curl, openssl, mbstring
Database credentials file: A db_config.php file stored outside your web root (e.g. C:\wamp64\db_config.php) — see step 2 below. The path is configured in config.php.

⚠️ Note for early adopters: If you downloaded FreeITSM before 18 February 2026, the project required Microsoft SQL Server Express and ODBC drivers — sorry about that! The original choice of SQL Server made sense at the time (it was the database I was most familiar with), but it created a painful setup experience: downloading SQL Server Express, installing ODBC drivers, enabling Mixed Mode Authentication, and troubleshooting driver compatibility issues. That's a lot of friction for an open-source project that's supposed to be easy to get running.

FreeITSM now runs on MySQL, which comes pre-installed with WAMP, XAMPP, and most web hosting stacks. No extra downloads, no driver headaches. If you've already set up with SQL Server, you'll need to migrate your data to MySQL and update your db_config.php — but for new installations, it's just clone and go.

Installation

Tip: After completing these steps, navigate to /setup/ to verify everything is configured correctly.

Clone the repository

git clone https://github.com/edmozley/freeitsm.git
cd freeitsm

Configure database credentials
- Copy db_config.sample.php to a secure location outside your web root:
```
C:\wamp64\db_config.php  (recommended)
```
- Edit the copied file with your MySQL credentials:
```
define('DB_SERVER', 'localhost');
define('DB_NAME', 'freeitsm');
define('DB_USERNAME', 'your_username');
define('DB_PASSWORD', 'your_password');
```
- Update config.php line 10 if you chose a different location
Create the database
- Create a new database named freeitsm in MySQL
- Run database/freeitsm.sql to create tables, or use the Setup page's DB Verify to auto-create them

Set up encryption key (for sensitive settings)

mkdir C:\wamp64\encryption_keys
# Generate a random 256-bit key (64 hex characters)
php -r "echo bin2hex(random_bytes(32));" > C:\wamp64\encryption_keys\sdtickets.key

Configure web server
- Point your web server to the application root
- Ensure PHP extensions are enabled: pdo_mysql, curl, openssl, mbstring
- Restart your web server
Verify setup
- Navigate to http://your-server/setup/ to run the setup verification checks
- Confirms config files, database connection, PHP extensions, and security settings
- Delete the /setup folder once your system is in production
First login
- Navigate to http://your-server/login.php
- A default admin account is created by the SQL script:
  - Username: admin
  - Password: freeitsm
- Change this password immediately after first login via the account menu
Import demo data (optional)
- Navigate to System → Demo Data to populate modules with realistic sample data
- Import Core first (creates analysts, departments, teams, and end users), then choose which modules to populate
- Includes tickets, assets, knowledge articles, changes, calendar events, morning checks, contracts, service status, software licences, and forms
- Demo analysts use password demo1234
- Designed for fresh installations only — each module can be imported once

Configuration Files

File	Location	Purpose	Commit to Git?
`config.php`	Web root	Main config (references external DB config)	✅ Yes
`db_config.php`	Outside web root	Database credentials	❌ NO
`db_config.sample.php`	Web root	Template for db_config.php	✅ Yes

Quick Start for AI Assistants

Before making changes: This README provides essential context about the codebase structure. Read relevant sections before modifying code.

Technology Stack

Component	Technology
Backend	PHP 7.4–8.4
Database	MySQL 8.0+ (PDO MySQL)
Frontend	Vanilla JavaScript, HTML5, CSS3 (no frameworks)
Rich Text Editor	TinyMCE 6+
Email Integration	Microsoft Graph API (OAuth 2.0)
Encryption	AES-256-GCM (sensitive data at rest)
Web Server	Apache (WAMP/XAMPP/LAMP) or any PHP-capable server

ITSM Modules

The platform is organised into 13 modules, accessible from a landing page (index.php) and a shared waffle menu for cross-module navigation.

Module	Folder	Colour	Description
Watchtower	`watchtower/`	Slate `#1e293b`	Unified attention dashboard showing actionable items across all modules
Tickets	`tickets/`	Blue `#0078d4`	Outlook-style ticket inbox with email integration, departments, teams, and audit trails
Assets	`asset-management/`	Green `#107c10`	IT asset tracking, user assignments, and vCenter VM inventory
Knowledge	`knowledge/`	Purple `#8764b8`	Rich-text knowledge base articles with AI chat and vector search
Changes	`change-management/`	Teal `#00897b`	ITIL change management with risk matrix, audit trail, comments, and post-implementation review
Calendar	`calendar/`	Orange `#ef6c00`	Event calendar with categories and scheduling
Checks	`morning-checks/`	Cyan `#00acc1`	Daily infrastructure health checks (RAG status) with 30-day trend charts
Reporting	`reporting/`	Brown `#ca5010`	System logs, audit trails, and analytics
Software	`software/`	Indigo `#5c6bc0`	Software inventory and deployment tracking
Forms	`forms/`	Teal `#00897b`	Dynamic form builder with sidebar list, tabbed editor (Fields/Preview), filler, and submission reporting
Contracts	`contracts/`	Amber `#f59e0b`	Supplier and contract lifecycle management with terms, financials, and notice tracking
Service Status	`service-status/`	Emerald `#10b981`	Real-time service health dashboard with incident tracking
System	`system/`	Blue-grey `#546e7a`	Encryption key management and module access control

Directory Structure

sdtickets/
├── config.php                        # Database credentials & global settings
├── index.php                         # Landing page (module selection grid)
├── login.php                         # Authentication page
├── logout.php                        # Logout handlers
├── analyst_logout.php
├── admin_settings.php                # Legacy admin panel (tickets settings)
├── check_email.php                   # Scheduled email import (all mailboxes)
├── oauth_callback.php                # Microsoft OAuth 2.0 callback
│
├── includes/                         # Shared PHP components
│   ├── functions.php                 # Database connection helper
│   ├── waffle-menu.php               # Cross-module navigation menu + user account menu
│   ├── encryption.php                # AES-256-GCM encryption/decryption
│   └── totp.php                      # Pure PHP TOTP (RFC 6238) for MFA
│
├── assets/                           # Static assets
│   ├── css/
│   │   ├── inbox.css                 # Core layout & shared styles
│   │   ├── knowledge.css             # Knowledge base styles
│   │   ├── calendar.css              # Calendar widget styles
│   │   ├── rota.css                  # Staff rota styles
│   │   ├── change-management.css     # Change management styles
│   │   └── itsm_calendar.css         # ITSM calendar styles
│   ├── js/
│   │   ├── inbox.js                  # Ticket interface logic
│   │   ├── knowledge.js              # Knowledge base logic
│   │   ├── calendar.js               # Calendar logic
│   │   ├── rota.js                   # Staff rota logic
│   │   ├── change-management.js      # Change management logic
│   │   ├── change-calendar.js        # Change management calendar logic
│   │   ├── itsm_calendar.js          # ITSM calendar logic
│   │   ├── qrcode.min.js             # Client-side QR code generator (for MFA setup)
│   │   └── tinymce/                  # Rich text editor library
│   └── images/
│       └── CompanyLogo.png           # Company logo (replace with your own)
│
├── tickets/                          # Ticket Management Module
│   ├── index.php                     # Three-panel inbox interface
│   ├── users.php                     # User directory & their tickets
│   ├── calendar.php                  # Ticket scheduling calendar
│   ├── rota.php                      # Staff rota weekly grid
│   ├── settings/                     # Departments, types, origins, mailboxes, analysts, teams, rota shifts
│   ├── includes/                     # Module header
│   └── attachments/                  # Email attachment storage
│
├── asset-management/                 # Asset Management Module
│   ├── index.php                     # Asset list & user assignments
│   ├── dashboard/
│   │   └── index.php                 # Per-analyst widget dashboard with Chart.js
│   ├── servers/
│   │   └── index.php                 # vCenter VM inventory with detail modal
│   ├── settings/
│   │   └── index.php                 # vCenter connection settings
│   └── includes/
│
├── knowledge/                        # Knowledge Base Module
│   ├── index.php                     # Article list & editor
│   ├── review.php                    # Article review workflow
│   ├── settings/                     # Email, AI, and embedding settings
│   └── includes/
│
├── change-management/                # Change Management Module
│   ├── index.php                     # Change request list & detail
│   ├── calendar.php                  # Calendar view of scheduled changes
│   ├── approvals.php                 # Pending approvals view
│   ├── settings/                     # Module settings (field visibility)
│   └── includes/
│
├── calendar/                         # Calendar Module
│   ├── index.php                     # Full calendar view with events
│   ├── settings/                     # Event categories
│   └── includes/
│
├── morning-checks/                   # Morning Checks Module
│   ├── index.php                     # Daily check interface with PDF export
│   ├── settings/                     # Settings page (check definitions, drag-and-drop reorder)
│   ├── create_tables.sql             # Database schema
│   └── includes/
│
├── reporting/                        # Reporting Module
│   ├── index.php                     # Reporting landing page (area selection)
│   ├── logs/
│   │   └── index.php                 # System logs (logins, email imports)
│   ├── tickets/
│   │   └── index.php                 # Ticket dashboards (coming soon)
│   └── includes/
│
├── software/                         # Software Module
│   ├── index.php                     # Software inventory dashboard
│   ├── dashboard/
│   │   ├── index.php                 # Software dashboard (Chart.js widgets with drill-down)
│   │   └── library.php               # Widget library management
│   ├── licences/
│   │   └── index.php                 # Licence management (CRUD, search, CSV export)
│   ├── settings/
│   │   └── index.php                 # API key management
│   └── includes/
│
├── system/                           # System Module
│   ├── index.php                     # System landing page (area selection)
│   ├── encryption/
│   │   └── index.php                 # Encryption key management
│   ├── modules/
│   │   └── index.php                 # Analyst module access control
│   └── includes/
│
├── forms/                            # Forms Module
│   ├── index.php                     # Unified form list + builder (sidebar + editor layout)
│   ├── builder.php                   # Legacy form designer (deprecated, use index.php)
│   ├── fill.php                      # Form filler (A4-style with company logo)
│   ├── submissions.php               # Submission table, detail modal, CSV export
│   ├── create_tables.sql             # Database schema
│   └── includes/
│
├── setup/                            # Setup verification (delete after going live)
│   └── index.php                     # Diagnostic checks page
│
├── api/                              # REST API endpoints (~125 total)
│   ├── tickets/                      # ~48 endpoints
│   ├── assets/                       # 8 endpoints (inc. vCenter sync)
│   ├── knowledge/                    # 16 endpoints (inc. AI chat)
│   ├── change-management/            # 15 endpoints
│   ├── calendar/                     # 7 endpoints
│   ├── morning-checks/               # 7 endpoints
│   ├── reporting/                    # 2 endpoints
│   ├── software/                     # 5 endpoints
│   ├── forms/                        # 7 endpoints
│   ├── settings/                     # 2 endpoints
│   ├── system/                       # 4 endpoints (encryption, module access)
│   ├── myaccount/                    # 6 endpoints (password, MFA setup/verify/disable)
│   └── external/                     # External API (software inventory)
│
└── database/                         # SQL schema scripts
    ├── create_teams_tables.sql
    ├── create_users_assets_table.sql
    └── add_knowledge_embeddings.sql

Shared Components

Waffle Menu & User Account Menu (`includes/waffle-menu.php`)

A cross-module navigation component inspired by Microsoft 365's app launcher. Appears in every module's header, allowing quick switching between all modules. Each module is registered here with its name, path, icon, and colour gradient. Respects $_SESSION['allowed_modules'] to filter visible modules per analyst.

Also contains the user account menu — an initials avatar circle in the top-right of every page. Clicking opens a dropdown with:

Change Password — modal to update password (validates current password, minimum 8 characters)
Multi-Factor Authentication — modal to set up or disable TOTP-based MFA (generates QR code for authenticator apps)
Logout — with confirmation prompt

To add a new module, add an entry to the $modules array and corresponding CSS classes.

TOTP Library (`includes/totp.php`)

Pure PHP implementation of RFC 6238 (TOTP) and RFC 4226 (HOTP) for multi-factor authentication. No external dependencies — uses PHP's built-in hash_hmac() and random_bytes().

Secret generation: 20 random bytes → Base32 encoded (32-character string)
Code generation: HMAC-SHA1 with 30-second time steps, dynamic truncation → 6-digit code
Verification: Checks ±1 time window (90-second tolerance) using hash_equals() for timing-safe comparison
URI format: otpauth://totp/FreeITSM:{username}?secret={base32}&issuer=FreeITSM

TOTP secrets are encrypted at rest using AES-256-GCM via encryptValue() before being stored in the analysts.totp_secret column.

Encryption (`includes/encryption.php`)

AES-256-GCM authenticated encryption for sensitive database values.

Key file: C:\wamp64\encryption_keys\sdtickets.key (outside web root)
Format: Encrypted values stored as ENC: + base64(IV + auth tag + ciphertext)
Migration: Values without the ENC: prefix pass through unchanged, allowing gradual rollout
Encrypted settings: Defined in ENCRYPTED_SETTING_KEYS and ENCRYPTED_MAILBOX_COLUMNS constants

// Encrypt before saving to DB
$encrypted = encryptValue($plaintext);

// Decrypt after reading from DB
$plaintext = decryptValue($encrypted);

// Decrypt all sensitive columns in a mailbox row
$mailbox = decryptMailboxRow($mailbox);

Currently encrypted in system_settings:

vcenter_server, vcenter_user, vcenter_password
knowledge_ai_api_key, knowledge_openai_api_key

Currently encrypted in target_mailboxes:

azure_tenant_id, azure_client_id, azure_client_secret
oauth_redirect_uri, imap_server, target_mailbox

Functions (`includes/functions.php`)

Contains connectToDatabase() which returns a PDO MySQL connection using the credentials from db_config.php. Also contains getAnalystAllowedModules() which loads module access permissions for an analyst.

Module Header Pattern

Each module has its own includes/header.php that:

Checks session authentication (redirects to login if not logged in)
Sets $current_module for waffle menu highlighting
Renders the header bar with the module's colour gradient
Includes the waffle menu button, nav tabs, and user account avatar menu

Module Details

Watchtower (`watchtower/`)

Unified attention dashboard — a single pane of glass showing actionable items across all modules.

Attention cards: Eight module-themed cards showing only items that need attention
Morning Checks: Completion status, failed/warning checks
Tickets: Open counts, urgent/high priority, unassigned tickets
Changes: Upcoming changes, pending approvals, in-progress changes
Calendar: Today's events, weekly event count
Service Status: Active incidents, degraded services
Contracts: Expiring contracts (30/90 day), upcoming notice periods
Knowledge: Recently published articles, overdue reviews
Assets: Total count, assets not seen in 7+ days
Features: Color-coded status dots (green/amber/red), auto-refresh every 5 minutes, click-through to each module

Tickets (`tickets/`)

The primary module. Three-panel Outlook-style interface.

Left panel: Department/status folders with ticket counts
Middle panel: Ticket list (searchable)
Right panel: Reading pane with full email thread
Features: Create tickets, reply/forward emails, attachments, internal notes, audit trail, team-based filtering, scheduling
Settings: Departments, ticket types, origins, mailboxes (Office 365), email templates, analysts, teams
Mailbox whitelist: Per-mailbox domain and email address whitelisting — non-whitelisted senders are rejected
Email actions: Configurable per-mailbox actions for rejected emails (delete, move to Deleted Items, mark as read) and imported emails (delete, move to folder) with folder verification
Email templates: Automated email responses triggered by ticket events (new ticket from email, ticket assigned, ticket closed) with merge codes for ticket reference, requester name, analyst name, and more
Ask AI: Button in ticket detail view opens a slide-in chat panel that searches the knowledge base for relevant articles using ticket context
Staff rota: Weekly grid showing analyst shift patterns, WFH/office location, and on-call status with per-day entry management and configurable shift definitions
Activity log: Searchable, paginated log of imported and rejected emails per mailbox with clickable processing log details
Dashboard (dashboard/): Per-analyst customisable dashboard with Chart.js widgets
- Widget library with 15 pre-built charts (bar, pie, doughnut, line) covering status, priority, department, type, analyst, origin, first time fix, and time-series
- Time-series widgets with configurable grouping: day, month, or year
- Multi-series: stacked bar charts broken down by status or priority, and created-vs-closed comparison line charts
- Configurable date range filter (last 7/30 days, this month, last 3/6/12 months, this year, all time)
- Department filter: scope any widget to specific departments
- Each analyst picks widgets for their own dashboard
- Status filtering on supported widgets
- Inline editing: cog icon on each widget opens a modal to edit properties without leaving the dashboard
- Drag-and-drop reordering
Help guide (help.php): Interactive guide covering inbox navigation, ticket lifecycle, comments and attachments, dashboard widgets, calendar, rota, and settings

Assets (`asset-management/`)

IT asset management with vCenter integration.

Assets tab: Searchable asset list with user assignments (many-to-many)
Servers tab (servers/): Virtual machine inventory synced from VMware vCenter REST API
- Displays VM name, OS, IP, host, cluster, CPU, memory, disk
- Clickable rows show full detail modal with raw JSON from vCenter
- Stores all API response data in raw_data column
Dashboard (dashboard/): Per-analyst customisable dashboard with Chart.js widgets
- Widget library with 13 pre-built charts (bar, pie, doughnut) covering OS, manufacturer, model, memory, GPU, TPM, BitLocker, etc.
- Each analyst picks widgets for their own dashboard
- Status filtering on supported widgets
- Drag-and-drop reordering
Settings: vCenter server URL, username, and password (encrypted)
Device Manager (api/external/device-manager/submit/): Enumerates Windows Device Manager devices (category, name, driver manufacturer, driver version, status) and displays them grouped by class on the asset detail screen
PowerShell inventory agent (scripts/Invoke-AssetInventory.ps1): Collects hardware, disks, network, GPU, TPM, BitLocker, device manager, and installed software from Windows machines and posts to the system-info and device-manager APIs
System-info API (api/external/system-info/submit/): External endpoint that ingests asset inventory data, syncs disk and network adapter tables, and processes software inventory
Help guide (help.php): Interactive guide covering asset overview, detail screen, inventory script deployment, collected data, server management, and dashboard widgets

Knowledge (`knowledge/`)

Rich-text knowledge base with AI integration.

TinyMCE editor for article creation
Tag-based organisation and full-text search
AI chat powered by Anthropic Claude (searches articles via vector similarity)
OpenAI embeddings for semantic search
Email sharing capability
Article review workflow
Article versioning — save as new version to archive previous content with full version history
Article archiving with recycle bin (soft delete, restore, configurable auto-purge)
Help guide (help.php): Interactive guide covering article creation, review workflow, Ask AI, search and navigation, sharing and export, with scroll-spy sidebar navigation

Change Management (`change-management/`)

Change request tracking and approval workflows with ITIL-aligned processes.

Calendar view with month/week/day views for visualising scheduled changes
Status-based filtering (Draft, Pending Approval, Approved, In Progress, Completed, Failed, Cancelled)
Click-through from calendar to change detail view
Approvals page showing changes pending approval (filter by All, Assigned to me, Requested by me, My CAB reviews)
CAB (Change Advisory Board) multi-member approval with required/optional reviewers, configurable threshold (all or majority), and auto-status transitions on vote
CAB review panel in detail view with colour-coded vote cards and inline voting for pending members
Risk assessment matrix with 5x5 colour-coded grid, auto-calculated risk score and level
Post-implementation review fields for completed/failed changes
Activity timeline combining comments and audit trail with inline commenting
Settings page with configurable form field visibility (show/hide fields per section)
Help guide (help.php): Interactive guide covering change types, lifecycle, recording changes, CAB review, risk assessment, and post-implementation review

Calendar (`calendar/`)

Event calendar with configurable categories.

Month, week, and day views
Drag-and-drop to move events between days in month view
Category colour coding and filtering
Events visible in adjacent-month cells for context
Help guide (help.php): Interactive guide covering calendar views, event creation, categories, settings configuration, and scheduling tips for IT teams

Morning Checks (`morning-checks/`)

Daily infrastructure health check recording.

Define checks with Red/Amber/Green (RAG) status options
Record daily results per check item
30-day trend charts — click any bar to jump to that day's checks
Settings page with tabbed layout, modal popups for add/edit, and drag-and-drop reordering
PDF export with selectable text, company logo, and coloured status values
Help guide (help.php): Interactive guide covering daily checks, status types, trend chart, PDF export, and settings configuration

Reporting (`reporting/`)

System logs and audit trails.

Login attempt tracking (success/failure with IP and user agent)
Email import logs
System event logs
Searchable and sortable tables
Help guide (help.php): Interactive guide covering ticket reports, system logs, data interpretation, filters, and reporting best practices

Software (`software/`)

Software inventory tracking across the estate.

External API endpoint for automated inventory submission
Per-machine software mapping
Dashboard (software/dashboard/): Customisable Chart.js widget dashboard
- Widget types: version distribution per application, top installed applications, publisher distribution
- Chart types: bar, pie, doughnut
- Click any chart segment to drill down and see machines/details in a modal
- Cog icon for inline widget editing, drag-and-drop reordering
- Widget library for creating, editing, duplicating, and deleting widgets
Licences (software/licences/): Software licence management database
- Record licences against applications in the software inventory
- Licence types: Per User, Per Device, Site, Concurrent, Subscription, Other
- Track renewal dates with colour-coded warnings (overdue/approaching/ok)
- Store licence keys, costs, portal URLs, vendor contacts, and notes
- Searchable and sortable table with status badges (Active/Expired/Cancelled)
- CSV export of all licence data
Help guide (help.php): Interactive guide covering software inventory, dashboard widgets, licence management, data collection, and settings

System (`system/`)

System administration and configuration.

Encryption (system/encryption/): Guided interface for managing the AES-256-GCM encryption key
- Shows key status (configured/missing/invalid) with colour-coded status card
- One-click key generation — writes directly to c:\wamp64\encryption_keys\sdtickets.key
- Instructions on key placement, backup importance, and what data is encrypted
- No regenerate button to prevent accidental key destruction
Module Access (system/modules/): Control which modules each analyst can see
- Toggle matrix: analysts as rows, modules as columns
- "All Access" toggle per analyst (default state — backward compatible)
- System module cannot be disabled (always accessible)
- Auto-saves on toggle with debounced API calls and toast notifications
- Permissions enforced on homepage cards and waffle menu navigation
Toast Notifications (assets/js/toast.js): Global notification system used across all modules
- Four types: success (green), error (red), warning (amber), info (blue) — each with icon and colour bar
- 9 configurable screen positions via visual grid picker in System Settings → General
- Position preference saved per-browser in localStorage
- Slide-in animations, auto-dismiss after 4 seconds, manual close button
Demo Data (system/demo-data/): One-click import of realistic sample data across all modules
- Populates tickets, assets, knowledge articles, changes, calendar events, morning checks, contracts, services, software, forms, analysts, and end users
- Designed for fresh installations — makes the system feel alive for evaluation and testing

Forms (`forms/`)

Dynamic form builder and submission system with a unified sidebar + editor layout.

Form List & Builder (index.php): Sidebar shows searchable list of all forms with quick actions (Fill In, Submissions, Delete). Main area has full-width title/description inputs with tabbed Fields and Preview panels. Click a form in the sidebar to edit it inline. Unsaved changes indicator with browser leave warning. Toast notifications on save/delete.
Filler (fill.php): A4-style form rendering with company logo (alignment configurable). Required field validation.
Submissions (submissions.php): Table view of all submissions. Click rows for detail modal. Date range filtering. CSV export with UTF-8 BOM for Excel compatibility.
Settings: Gear icon in sidebar opens settings modal. Configurable logo alignment (left, centre, right) applied to both preview and fill-in views.
Field types: text, textarea, checkbox, dropdown
Help Guide (help.php): Full-page guide with left-pane navigation, scroll-spy, and 7 sections covering the form builder, field types, filling in forms, submissions, CSV export, settings, and quick tips.

Contracts (`contracts/`)

Supplier and contract lifecycle management with configurable rich text terms.

Dashboard (index.php): Left sidebar with overview stats (contracts, active, expiring, suppliers, contacts), quick links, and universal search across contracts, suppliers, and contacts. Main area shows the full contracts table.
Add/Edit (edit.php): Sectioned form with contract details, dates, financial, documents, and terms & data protection fields. Below the main form, a "Contract Terms Detail" section displays configurable TinyMCE rich text tabs for detailed contract terms (e.g. Special terms, KPIs, SLAs).
View (view.php): Read-only detail view with all fields organised into sections. Contract terms content displayed in read-only tabs.
Suppliers (suppliers/): Supplier register with legal/trading names, registration details, address, type/status, questionnaire tracking, and comments.
Contacts (contacts/): Supplier contacts with name, job title, email, direct dial, and switchboard fields.
Settings (settings/): Tabbed management of supplier types, supplier statuses, contract statuses, payment schedules, and contract term tabs.
Help (help.php): Guided help page with left-pane navigation, scroll-spy, and 7 sections covering contract management, rich text terms, suppliers, contacts, settings configuration, and best practice tips.

Service Status (`service-status/`)

Service health dashboard with incident-driven status tracking.

Dashboard (index.php): Grid view of all active services showing worst current impact from open incidents. Below, a list of active and recently resolved incidents. Create/edit incidents via modal with multi-service impact selector.
Settings (settings/): Manage the list of services (name, description, display order, active status).
Help (help.php): Guided help page with left-pane navigation, scroll-spy, and 6 sections covering the status dashboard, status levels, managing services and incidents, incident history, settings, and communication tips.

Self-Service Portal (`self-service/`)

End-user portal allowing ticket requesters to register, log in, and interact with the service desk directly.

Registration & Login: Users register with email, name, and password. If a user already exists in the system (e.g. created via email processing) but has no password, they can claim their account by registering with their email. Separate authentication from the analyst login using $_SESSION['ss_user_id']. Supports MFA (TOTP) login challenge.
Dashboard (index.php): Personalised overview showing ticket summary cards (Open, In Progress, On Hold, Total), a recent tickets table, and a live system status panel pulled from the Service Status module.
New Ticket (new-ticket.php): Submit a new support ticket with mailbox selection, subject, priority, description, and drag-and-drop file attachments.
Ticket Detail (ticket.php): View full ticket conversation thread and non-internal notes. Internal analyst notes are hidden from the portal.
User Avatar Menu: Initials circle in the header with dropdown for account management, MFA setup, password change, and logout.
My Account: Users can set a preferred name (e.g. "Ed" instead of "Ed Mozley") and change their password.
Multi-Factor Authentication: TOTP-based MFA using the same core libraries (includes/totp.php, includes/encryption.php) as the analyst system. Users can enable/disable MFA from their account menu.

API Reference

All endpoints live under api/ and return JSON. Every endpoint requires an active session ($_SESSION['analyst_id']).

Standard Pattern

session_start();
require_once '../../config.php';
require_once '../../includes/functions.php';

header('Content-Type: application/json');

if (!isset($_SESSION['analyst_id'])) {
    echo json_encode(['success' => false, 'error' => 'Not authenticated']);
    exit;
}

Tickets (`api/tickets/`) ~54 endpoints

Endpoint	Method	Purpose
`get_emails.php`	GET	List tickets with latest email (filtered by dept/status)
`get_email_detail.php`	GET	Full email content and ticket info
`create_ticket.php`	POST	Create manual ticket
`delete_ticket.php`	POST	Delete ticket and related records
`assign_ticket.php`	POST	Assign ticket to analyst
`update_ticket_owner.php`	POST	Set ticket owner
`schedule_ticket.php`	POST	Set work_start_datetime
`search_tickets.php`	POST	Search by ticket#, email, or subject
`send_email.php`	POST	Send email via Microsoft Graph API
`get_ticket_attachments.php`	GET	List attachments for a ticket
`get_attachment.php`	GET	Download attachment file
`check_mailbox_email.php`	POST	Import emails for a mailbox
`get_departments.php`	GET	List all departments
`get_my_departments.php`	GET	List analyst's team-filtered departments
`save_department.php`	POST	Create/update department
`get_analysts.php`	GET	List all analysts
`save_analyst.php`	POST	Create/update analyst
`get_teams.php`	GET	List teams
`save_team.php`	POST	Create/update team
`get_mailboxes.php`	GET	List mailbox configurations
`save_mailbox.php`	POST	Create/update mailbox
`get_mailbox_whitelist.php`	GET	Get whitelist entries for a mailbox
`save_mailbox_whitelist.php`	POST	Replace whitelist entries for a mailbox
`get_mailbox_activity.php`	GET	Paginated activity log for a mailbox
`verify_mailbox_folder.php`	POST	Verify a mail folder exists via Graph API
`get_email_templates.php`	GET	List email templates
`save_email_template.php`	POST	Create/update an email template
`delete_email_template.php`	POST	Delete an email template
`get_notes.php`	GET	Get notes for a ticket
`save_note.php`	POST	Add internal note
`get_ticket_audit.php`	GET	Get change history
`get_ticket_counts.php`	GET	Counts by department/status
`get_rota_shifts.php`	GET	List rota shift definitions
`save_rota_shift.php`	POST	Create/update rota shift
`delete_rota_shift.php`	POST	Delete rota shift
`get_rota.php`	GET	Get rota entries for a week
`save_rota_entry.php`	POST	Create/update rota entry
`delete_rota_entry.php`	POST	Delete rota entry
`get_ticket_dashboard.php`	GET	Get analyst's dashboard widgets
`get_ticket_widget_data.php`	GET	Aggregated data for a widget chart
`get_ticket_widget_library.php`	GET	List all widget definitions
`add_ticket_dashboard_widget.php`	POST	Add widget to dashboard
`remove_ticket_dashboard_widget.php`	POST	Remove widget from dashboard
`save_ticket_dashboard_widget.php`	POST	Create/update widget definition
`reorder_ticket_dashboard_widgets.php`	POST	Reorder dashboard widgets
`delete_ticket_dashboard_widget.php`	POST	Soft-delete a widget
...and more

Assets (`api/assets/`)

Endpoint	Method	Purpose
`get_assets.php`	GET	List assets with user counts
`get_asset_users.php`	GET	Users assigned to an asset
`assign_asset_user.php`	POST	Assign user to asset
`unassign_asset_user.php`	POST	Remove user from asset
`get_servers.php`	GET	List VMs and ESXi hosts from servers table
`get_vcenter.php`	POST	Sync VMs from vCenter REST API
`debug_vcenter.php`	GET	Dump raw vCenter API responses
`get_software.php`	GET	Software inventory for a server

Knowledge (`api/knowledge/`)

Endpoint	Method	Purpose
`knowledge_articles.php`	GET	List articles (with search)
`knowledge_article.php`	GET	Get single article
`knowledge_save.php`	POST	Create/update article (auto-generates embedding)
`knowledge_delete.php`	POST	Delete article
`knowledge_tags.php`	GET	List available tags
`ai_chat.php`	POST	AI-powered Q&A over knowledge base
`generate_embedding.php`	POST	Generate OpenAI embedding for article
`get_email_settings.php`	GET	Get email & AI settings (keys masked)
`save_email_settings.php`	POST	Save email & AI settings (keys encrypted)
...and more

Forms (`api/forms/`)

Endpoint	Method	Purpose
`get_forms.php`	GET	List all forms with field/submission counts
`get_form.php`	GET	Single form with fields (for builder & filler)
`save_form.php`	POST	Create/update form with fields
`delete_form.php`	POST	Delete form and all submissions
`submit_form.php`	POST	Submit a filled-in form
`get_submissions.php`	GET	Submissions for a form (with field data)
`delete_submission.php`	POST	Delete a submission
`get_settings.php`	GET	Get forms module settings (logo alignment)
`save_settings.php`	POST	Save forms module settings

Settings (`api/settings/`)

Endpoint	Method	Purpose
`get_system_settings.php`	GET	Get all settings (auto-decrypts sensitive keys)
`save_system_settings.php`	POST	Save settings (auto-encrypts sensitive keys)

My Account (`api/myaccount/`)

Endpoint	Method	Purpose
`change_password.php`	POST	Validate current password, update to new (min 8 chars)
`get_mfa_status.php`	GET	Return `{ mfa_enabled: bool }` for current analyst
`setup_mfa.php`	POST	Generate TOTP secret, return secret + otpauth URI for QR
`verify_mfa.php`	POST	Verify OTP against pending secret, encrypt and enable MFA
`disable_mfa.php`	POST	Verify password and disable MFA for current analyst
`verify_login_otp.php`	POST	Verify OTP during login MFA challenge, complete login

Other Module APIs

api/change-management/ — 15 endpoints for change CRUD, attachments, calendar, approvals, CAB workflow, and settings
api/calendar/ — 7 endpoints for events and categories
api/morning-checks/ — 8 endpoints for check definitions, results, charts, and reorder
api/reporting/ — 2 endpoints for system logs
api/software/ — 5 endpoints for software inventory and licence management
api/service-status/ — 7 endpoints for services CRUD, incident management, and dashboard aggregation
api/watchtower/ — 1 endpoint for unified attention dashboard aggregation across all modules
api/system/ — 4 endpoints for encryption status and module access management
api/external/software-inventory/submit/ — External API for automated software inventory collection
api/external/system-info/submit/ — External API for full asset inventory ingestion (hardware, disks, network, software)

Database

Connection

PDO MySQL connecting to MySQL 8.0+. Connection handled by includes/functions.php:

$conn = connectToDatabase();
$stmt = $conn->prepare("SELECT * FROM table WHERE id = ?");
$stmt->execute([$id]);
$result = $stmt->fetch(PDO::FETCH_ASSOC);

Identity Pattern

MySQL AUTO_INCREMENT for auto-increment. Use $conn->lastInsertId() to retrieve new IDs after INSERT:

$stmt = $conn->prepare("INSERT INTO table (col) VALUES (?)");
$stmt->execute([$value]);
$newId = (int)$conn->lastInsertId();

Core Tables

analysts

id, username, password_hash, full_name, email, is_active, totp_secret, totp_enabled,
created_datetime, last_modified_datetime, last_login_datetime

totp_secret: AES-256-GCM encrypted TOTP secret (NULL when MFA not set up)
totp_enabled: Boolean flag indicating whether MFA is active for this analyst

tickets

id, ticket_number (YYYYMMDD-XXXX), subject, status, priority, department_id, ticket_type_id,
ticket_origin_id, assigned_analyst_id, owner_id, requester_name, requester_email,
first_time_fix, it_training_provided, work_start_datetime, created_datetime, updated_datetime

emails

id, ticket_id, exchange_message_id (NOT NULL), from_address, from_name, to_recipients (JSON),
cc_recipients (JSON), received_datetime, subject, body_content, body_type, has_attachments,
importance, is_read, is_initial, direction (Incoming/Outgoing/Manual)

system_settings

setting_key, setting_value, updated_datetime

Key-value store for all configuration. Sensitive values are encrypted with AES-256-GCM.

target_mailboxes

id, name, target_mailbox*, azure_tenant_id*, azure_client_id*, azure_client_secret*,
oauth_redirect_uri*, oauth_scopes, imap_server*, imap_port, imap_encryption,
email_folder, max_emails_per_check, mark_as_read,
token_data (JSON), is_active, created_datetime, last_checked_datetime

* Encrypted at rest with AES-256-GCM

mailbox_email_whitelist

id, mailbox_id, entry_type ('domain'|'email'), entry_value, created_datetime

Per-mailbox sender whitelist. If no entries exist, all senders are allowed.

mailbox_activity_log

id, mailbox_id, action ('imported'|'rejected'), from_address, from_name,
subject, reason, ticket_id, created_datetime

Records every email imported or rejected during mailbox processing.

ticket_email_templates

id, name, event_trigger, subject_template, body_template, is_active, display_order,
created_datetime, updated_datetime

Automated email templates triggered by ticket events (new_ticket_email, ticket_assigned, ticket_closed). Subject and body support merge codes like [ticket_reference], [analyst_name], etc.

Asset Tables

servers

id, vm_name, guest_os, ip_address, host, cluster, cpu_count, memory_mb, disk_gb,
power_state, raw_data (LONGTEXT - full vCenter JSON), source, last_synced

Forms Tables

forms

id, title, description, is_active, created_by, created_date, modified_date

form_fields

id, form_id (FK CASCADE), field_type, label, options (JSON), is_required, sort_order

form_submissions

id, form_id (FK), submitted_by (FK analysts), submitted_date

form_submission_data

id, submission_id (FK CASCADE), field_id (FK), field_value

Morning Checks Tables

morningChecks_Checks

id, check_name, is_active, display_order

morningChecks_Results

id, check_id (FK), check_date, status (Green/Amber/Red), notes, analyst_id

Team Tables

teams, analyst_teams, department_teams

Many-to-many relationships for team-based access control. Analysts only see tickets in departments linked to their teams. Analysts with no team assignments see everything (admin behaviour).

Module Access Tables

analyst_modules

id, analyst_id (FK analysts ON DELETE CASCADE), module_key

Controls which modules an analyst can access. No rows = full access to all modules (backward compatible). When rows exist, analyst only sees those modules on homepage and in waffle menu. The system module is always included and cannot be disabled.

Security

Implemented

AES-256-GCM encryption for sensitive settings, mailbox credentials, and TOTP secrets with key stored outside web root
Bcrypt password hashing (PASSWORD_DEFAULT)
TOTP multi-factor authentication (RFC 6238) — optional per analyst, enforced at login
Session-based authentication on all pages and API endpoints
PDO prepared statements throughout (SQL injection prevention)
Output encoding with htmlspecialchars() (XSS prevention)
Client-side escaping via DOM textContent → innerHTML pattern
OAuth 2.0 for Microsoft 365 email integration
Team-based access control for ticket visibility
Module-level access control per analyst (configurable via System module)
Audit logging for all ticket changes
Login attempt logging with IP and user agent
Credential masking in UI (**** + last 4 characters)
Password required to disable MFA (prevents unauthorized deactivation)
Trusted device: users can opt in to skip OTP on trusted browsers for a configurable number of days (cookie-based with SHA-256 hashed tokens stored server-side)
Password expiry policy: configurable maximum password age (30–365 days) with forced password change on next login when expired
Account lockout: configurable max failed login attempts before temporary account lock with configurable lockout duration

Password Hashing

Algorithm: Bcrypt via PHP's password_hash() with PASSWORD_DEFAULT
One-way: Passwords cannot be reversed from the stored hash — authentication uses password_verify() to re-hash the input and compare
Per-hash salt: Every call to password_hash() generates a unique random salt, so the same password produces a different hash each time
Cost factor: Bcrypt uses configurable work rounds (currently 2^12 = 4,096 iterations) making brute-force attacks extremely slow
Default admin account: The SQL script includes a pre-computed hash for the initial admin / freeitsm account. Once the password is changed, a new unique hash is generated. The db_verify.php endpoint also seeds this account at runtime (with a fresh hash) if no analysts exist

Encryption Details

Algorithm: AES-256-GCM (authenticated encryption — provides confidentiality + integrity)
Key: 256-bit random key stored at C:\wamp64\encryption_keys\sdtickets.key
Nonce: 96-bit random IV per encryption (same value encrypted twice produces different ciphertext)
Auth tag: 128-bit — detects any tampering with encrypted data
Prefix: ENC: allows coexistence of encrypted and plaintext values during migration

Key Workflows

Email Import

check_email.php runs (scheduled or manual trigger)
For each active mailbox: refreshes OAuth token, calls Graph API, imports new emails
Creates/matches tickets based on subject/requester
Downloads attachments, logs results

Email Threading & Reply Flow

The ticketing system handles email correspondence as a flat thread — each email in a ticket is stored and displayed as its own standalone entry, newest first, with no nesting or indentation.

The Problem with Email Threads

When a user replies to an email, their email client (Gmail, Outlook, etc.) automatically appends the entire previous conversation as a quoted block below their new content. If you simply store the full email body, each reply contains every previous message nested inside it, creating an ever-growing blob of duplicated content. Displaying these naively produces deeply indented, confusing threads with coloured borders and boxes-within-boxes.

The Solution: Server-Side Assembly + Clean Storage

The reply flow separates what the recipient sees from what gets saved to the database:

Reply editor is empty — when an analyst clicks Reply, TinyMCE opens with a blank editor. No quoted thread, no markers, just a clean box for typing.
Server assembles the full email — when the analyst clicks Send, only their typed content is sent to the server. The server (api/tickets/send_email.php) then:
- Fetches all previous emails for the ticket from the database
- Builds a quoted thread (each email as "On [date], [name] wrote:" + blockquote)
- Inserts a visible reply marker: — Please reply above this line —
- Constructs the full email: analyst's reply + marker + quoted thread
- Sends this assembled email to the recipient via Microsoft Graph API
Only the analyst's content is saved — the database stores just what the analyst typed, not the full assembled email. This prevents thread duplication in the DB.

Reply Marker

The visible text — Please reply above this line — serves as the primary anchor for stripping. It is:

Plain Unicode text (em dashes + words) that survives every email client's HTML processing
Wrapped in a <div> with data-reply-marker="true" as a secondary signal
Displayed to the recipient as a subtle grey line between the analyst's reply and the quoted thread

Inbound Email Stripping

When a user replies back, their email contains the full thread (their reply + our marker + quoted history). The stripping functions extract only the user's new content by looking for these anchors in order:

Our visible marker text — — Please reply above this line — (primary, works with all email clients)
Our data-reply-marker div — backup if the HTML attribute survives
Legacy SDREF marker — [*** SDREF:XXX-000-00000 REPLY ABOVE THIS LINE ***] for older emails
Generic blockquote fallback — takes content before the first <blockquote> tag
Attribution line cleanup — removes trailing "On [date], [name] wrote:" lines that email clients add before quoted blocks

Stripping happens at two points:

Import time (check_mailbox_email.php → stripInboundThread()) — cleans the body before saving to DB
Display time (get_ticket_thread.php → stripQuotedThread()) — safety net for legacy emails already in the DB

Thread Display

The correspondence thread in the reading pane renders emails as a flat list:

Newest email at the top, oldest at the bottom
Each email separated by a thin horizontal line
Direction badge (Received/Sent) with sender name, email address, and timestamp
CSS overrides (!important) to kill any inline styles, blockquote indentation, or coloured borders from email HTML that leak through stripping

Files Involved

File	Role
`assets/js/inbox.js`	Reply/forward modals (empty editor), `sendEmail()` passes `type` param, `loadCorrespondenceThread()` renders flat thread
`api/tickets/send_email.php`	`buildFullEmailBody()` assembles full email for recipient, saves only analyst content to DB
`api/tickets/get_ticket_thread.php`	`stripQuotedThread()` strips quoted content at display time
`api/tickets/check_mailbox_email.php`	`stripInboundThread()` strips quoted content at import time
`assets/css/inbox.css`	Flat thread styles, inline HTML overrides

MFA Login Flow

MFA is optional and per-analyst. Analysts with MFA disabled log in with just username and password as normal. When an analyst enables MFA, subsequent logins require a second verification step:

Analyst enters username and password on login.php
Password verified → MFA pending state stored in session (mfa_pending_analyst_id etc.) — analyst_id is NOT set yet
Login page renders OTP form (shield icon, 6-digit input, auto-submit)
Analyst enters code from authenticator app → JS calls api/myaccount/verify_login_otp.php
Server decrypts stored TOTP secret, verifies code (±1 time window)
On success: $_SESSION['analyst_id'] is set, pending state cleared, redirected to index.php

The "Cancel and return to login" link clears the pending state so a different analyst (who may not have MFA) can log in on the same browser.

Team-Based Filtering

Analyst's team memberships stored in session at login
API endpoints filter by team-accessible departments
No teams assigned = see everything (admin)

vCenter VM Sync

Settings page stores vCenter credentials (encrypted)
api/assets/get_vcenter.php authenticates with vCenter REST API
Fetches hosts, clusters, VMs with guest identity and filesystems
Builds host/cluster maps by querying VMs per host/cluster
Stores everything including raw JSON in servers table

Form Submission

Admin designs form in the unified form builder (index.php) — sidebar lists all forms, editor has tabbed Fields/Preview panels
Users fill in form at fill.php?id=X (A4-style layout with company logo)
Submissions viewable in table format with CSV export

Development Notes

Module Page Pattern

Every module page follows this structure:

<?php
session_start();
require_once '../config.php';
$current_page = 'module_name';
$path_prefix = '../';
?>
<!DOCTYPE html>
<html>
<head>
    <link rel="stylesheet" href="../assets/css/inbox.css">
    <!-- Module-specific styles in <style> block -->
</head>
<body>
    <?php include 'includes/header.php'; ?>
    <div class="main-container module-container">
        <!-- Module content -->
    </div>
    <script>
        const API_BASE = '../api/module_name/';
        // Module JavaScript
    </script>
</body>
</html>

Adding a New Module

Create module folder with index.php and includes/header.php
Create API folder under api/
Register in includes/waffle-menu.php (add to $modules array + CSS colours)
Add card to index.php landing page (icon, colour, link)
Create SQL schema file if needed

Important: exchange_message_id

The emails.exchange_message_id column does NOT allow NULL. Manual tickets must use a placeholder: 'manual-' . time() . '-' . uniqid().

File Locations Quick Reference

Need to...	Look in...
Add a new module	Module folder + `api/` + `includes/waffle-menu.php` + `index.php`
Change database connection	`config.php`, `includes/functions.php`
Add an encrypted setting	`includes/encryption.php` → `ENCRYPTED_SETTING_KEYS` or `ENCRYPTED_MAILBOX_COLUMNS`
Modify cross-module navigation	`includes/waffle-menu.php`
Change the landing page	`index.php`
Modify ticket inbox	`tickets/index.php`, `assets/js/inbox.js`
Configure vCenter	`asset-management/settings/`, `api/assets/get_vcenter.php`
Manage knowledge AI	`knowledge/settings/`, `api/knowledge/ai_chat.php`
Design forms	`forms/index.php`, `api/forms/save_form.php`
View form submissions	`forms/submissions.php`, `api/forms/get_submissions.php`
Manage encryption key	`system/encryption/`, `api/system/check_encryption.php`
Configure module access	`system/modules/`, `api/system/save_analyst_modules.php`
Account menu (avatar/password/MFA)	`includes/waffle-menu.php` → `renderHeaderRight()`, `api/myaccount/`
MFA login challenge	`login.php`, `api/myaccount/verify_login_otp.php`
TOTP implementation	`includes/totp.php`

Last updated: February 2026

Name		Name	Last commit message	Last commit date
Latest commit History 225 Commits
.github/ISSUE_TEMPLATE		.github/ISSUE_TEMPLATE
api		api
asset-management		asset-management
assets		assets
calendar		calendar
change-management		change-management
contracts		contracts
database		database
docker		docker
forms		forms
includes		includes
knowledge		knowledge
morning-checks		morning-checks
reporting		reporting
scripts		scripts
self-service		self-service
service-status		service-status
setup		setup
software		software
system-wiki		system-wiki
system		system
tickets		tickets
watchtower		watchtower
.dockerignore		.dockerignore
.gitattributes		.gitattributes
.gitignore		.gitignore
CHANGELOG.local.md		CHANGELOG.local.md
Dockerfile		Dockerfile
LICENSE		LICENSE
README.md		README.md
analyst_logout.php		analyst_logout.php
config.php		config.php
db_config.sample.php		db_config.sample.php
docker-compose.yml		docker-compose.yml
force_password_change.php		force_password_change.php
index.php		index.php
login.php		login.php
logout.php		logout.php
oauth_callback.php		oauth_callback.php
test_email_thread.php		test_email_thread.php
web.config		web.config

Folders and files

Latest commit

History

Repository files navigation
