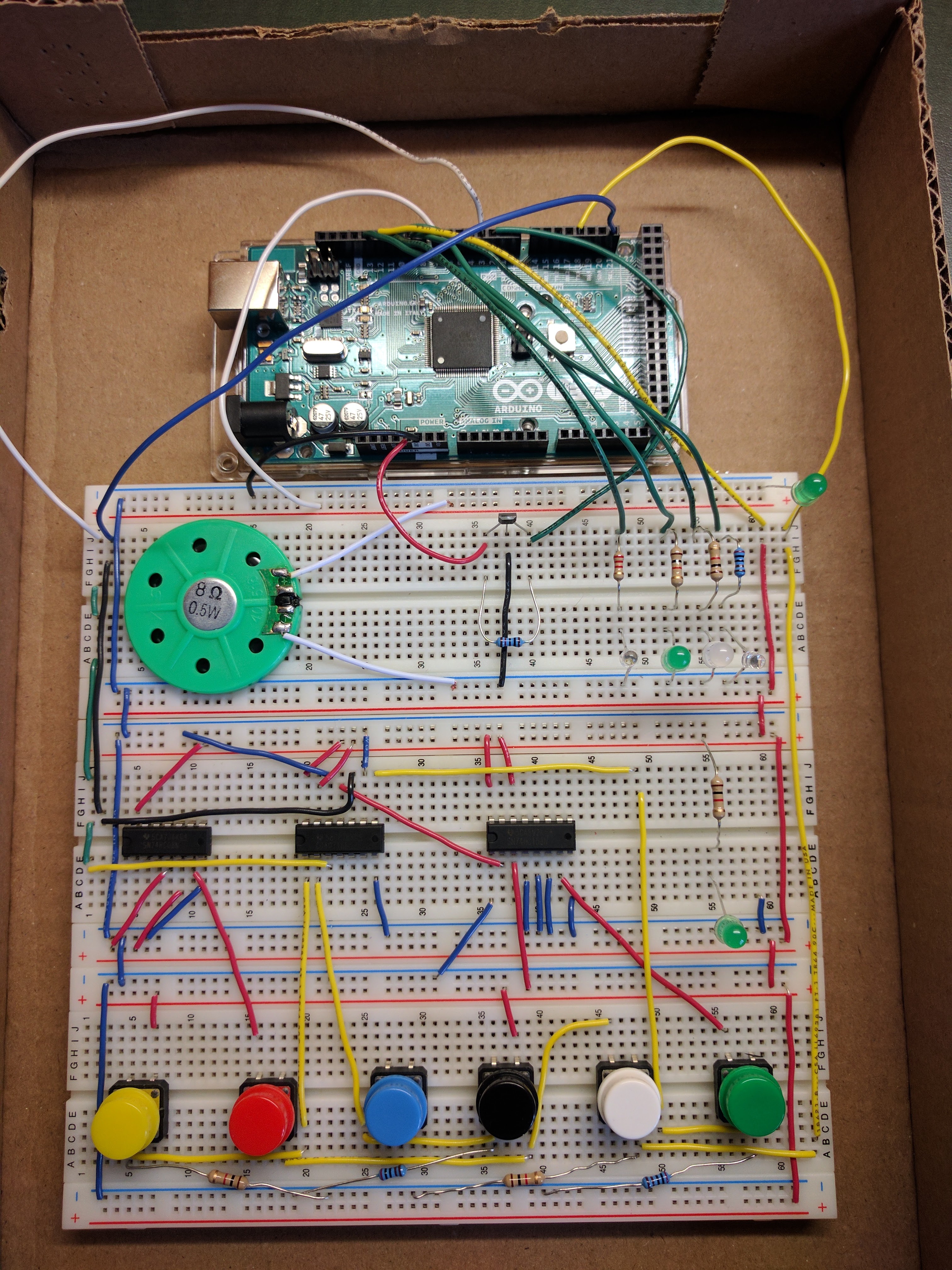

This is my first Arduino project made with lots of help from books, friends and the internet
The Big Picture of this project was to ...
- Have a user input a message from the Arduino serial monitor
- Program will contain a timer to give user 15 seconds to type and confirm their message and lock in a password
- If not, message vault will restart
- Once message has been locked into the vualt, the user will haev to go through a sequence of button pushes before unlocking the message again
- A timer will continuously run giving a maximum limit of 15 seconds for the user to get the correct combinations
- When the correct combinations of buttons are pressed, the user will be greeted with multiple flashing RGB LED’s and a nice noise on the mini speaker
- If the user fails to press the correct set of buttons, the LED’s will glow red and the speaker will play a nasty noise
- When the puzzle is unlocked, the message will print back on screen
- Arduino MC board
- Breadboard
- Tactile button
- Mini Thin Speaker
- HALL effect sensor
- TRI Color/ Bi color LED
- AND/OR Gates
- 4:1 MUX
