This repository provides a symbolic regressor via the MCTS algorithm, implemented in Python 2.7.
Options:
-h, --help show this help message and exit
-l FOLDER Select the folder to save results
-v NUMVARS The number of variables to use for regression
-i ITERATIONS The number of MCTS iterations
-o OBJECTIVE Objective function in polish notation
-d DEPTH The maximum tree depth
-s SEED Seed for this execution
--lower=LOWER Lower value for samples
--upper=UPPER Upper value for samples
--points=POINTS Number of equally spaced points between upper and lower
bounds
--samples=SAMPLES Number of samples to be selected from domain
In this implementation of the Monte Carlo tree search, each node has no knowledge about what value it is storing or how much further down it can go in the tree. Everyone node has access to a single handler object, which is reponsible to return the appropriate value to be stored on these nodes. In other words, the tree node objects only know operations regarding the tree search, while the handler object only knows operations regarding expression manipulation.

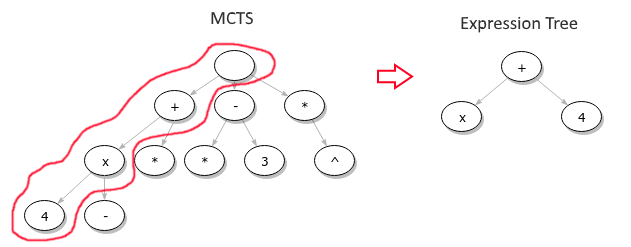

The value to be stored at a single node is a component (or a list of components). A component can be either operators (e.g. +, -), or terminals (e.g. 0, 1, x). It is important to note that the representation of an expression within the tree search is different from the traditional expression tree. When a given expression in the tree search, given by a path from the node to a leaf node, is completed, this list of components are them converted to an expression tree. Refer to the image below to for a clear understanding.
From the image it is possible to notice that the expression in the tree search is represented in reverse polish notation. When setting an objective function through the command line, you must pass the function as a string using this notation.
Expression in infix notation: x² + 2x + 4
Expression in reverse polish notation: add add pow x 2 mul 2 x add 2 2
The currently implemeted operators and terminals are:
add: numpy.add
sub: numpy.ubtract
mul: numpy.multiply
div: numpy.true_divide
cos: numpy.cos
sin: numpy.sin
pow: numpy.power
ln: numpy.log
0: 0 (integer)
1: 1 (integer)
2: 2 (integer)
x, y, ... , w: variables
Standard UCT (Upper Confidence bounds applied to Trees) is used as selection strategy for the search, and the reward is given by 1/(1+mse), where mse is the mean squared error of the results between the generated function and the objective function. There are no limitations regarding revisiting an explored branch or stopping after finding a 0 error expression.
.
└── mcts-regressor
├── MCTS # General MCTS implementation, SolutionHandler.py can be extended
│ ├── __init__.py # to apply this algorithm in other applications
│ ├── MCTS.py
│ ├── SearchNode.py
│ └── SolutionHandler.py
├── ExpressionModule # Implementation of SolutionHandler to perform symbolic regression
│ ├── ExpressionComponents.py
│ ├── ExpressionHandler.py
│ ├── ExpressionNode.py
│ └── __init__.py
├── Plot # Provide functions to facilitate vizualition of results
│ ├── __init__.py
│ └── Plot.py
├── Utility # Utility functions
│ ├── __init__.py
│ └── Utility.py
├── plot
├── README.md
└── regression
- This implementation use regular UCT, which according Cazanave is not very effective for the problem of symbolic regression.
- Although the error of the built expression is usually relatively small (MSE < 0.1) after finishing the search, most of the expressions found are linear, sometimes even without variables.
- If the domain allows an x so that the objective function return nan, inf or -inf, if the found expression doesn't return the same value for that x, the MSE will always be inf. This problem will make it difficult to direct the search to the right place in the search space.
- The search can quickly converges to a local optimum (observed happening within 400 iterations).
- To pass an objective function, you need to break into components used by the program. This makes it impossible to use expressions without closed form, and can be very troublesome for complex expressions.
- Prevent re-searching into a subtree that was already fully explored (some executions converged to a local optimum very quickly, even though the 0 error solution was very close to be found in another branch of the tree)
- Iterative deepening: currently there is not criteria to decide the maximum depth of the tree (using the depth necessary to find the expression - cheating!). Iterative deepening could be a better solution for that.
- Expand By Removing: consider the deletion of components as a possible expansion for the tree. This could (1) possibly improve the current implementation, (2) allows it to be executed like the same way MCTS is implemented for games: every x iterations, take the best child as root and restart the search from there.
- f1(x,y) = 1/(1+x^-4) + 1/(1+y^-4)
add div 1 add 1 pow x sub sub 0 2 2 div 1 add 1 pow y sub sub 0 2 2
- f2(x,y) = 2-2.1cos(9.8*x)*sin(1.3*y)
sub div add mul add add 2 2 1 add 2 2 1 mul add add 2 2 1 2 mul 2 mul cos mul div add add mul mul mul mul 2 2 2 2 2 mul mul mul 2 2 2 2 1 add add 2 2 1 x sin mul div add mul add add 2 2 2 2 1 mul add add 2 2 1 2 y
- f3(x) = sum(1/i) | i = 1,2,...,x
no closed form - impossible to use in the current implementation
- f4(x1,x2,x3,x4,x5) = 10 / (5 + sum(xi-3)^2 | i =1,...,5)
div mul add add 2 2 1 2 add add add add add add add 2 2 1 pow sub x add 2 1 2 pow sub y add 2 1 2 pow sub z add 2 1 2 pow sub a add 2 1 2 pow sub b add 2 1 2
- f5(x) = ln(x+1)+ln(x^2+1)
add ln add x 1 ln add pow x 2 1
- Cazenave, Tristan. "Nested Monte-Carlo Expression Discovery." ECAI. 2010.
- Cazenave, Tristan. "Monte-carlo expression discovery." International Journal on Artificial Intelligence Tools 22.01 (2013): 1250035.
- White, David R., Shin Yoo, and Jeremy Singer. "The programming game: evaluating MCTS as an alternative to GP for symbolic regression." Proceedings of the Companion Publication of the 2015 Annual Conference on Genetic and Evolutionary Computation. ACM, 2015.
