Phatscroll Bitfinex

Python script to get the current value of bitcoin from bitfenix

Link

Hardware

• a Raspberry pi (any raspberry should be good, I prefer the zero W for a neater result)

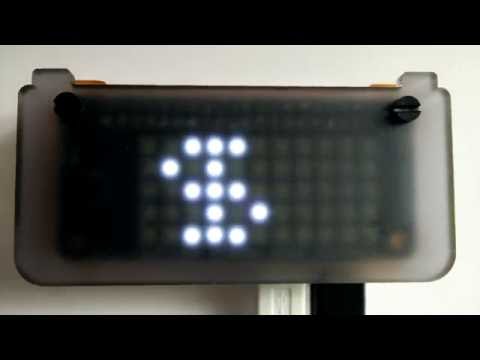

• a Pimoroni Led display between
  • Scrollphat (retired)
  • Scrollphat HD
• Micro SDcard

Installation

1. crerate a SD from one of the official images (tested with raspbian jessie)
2. Setup the Pi headlessy with this guide
3. Boot the pi
4. ssh into it with the default credential

   user: pi
   password: raspberry


5. update

   sudo apt-get update
   sudo apt-get upgrade


6. install the python library for your display:

• scrollphat
• scrollphat hd

7. clone this repository
8. install the requirements for this project with: [sudo] pip install -r ./requirements.txt
9. run the script based on your display

• scrollphat: ./main.py --type phat
• scrollphat hd: ./main.py --type phathd

Start the script at boot

1. copy or link the *.service file for your display in /lib/systemd/system/

• scrollphat: scrollphat-bitfinex.service
• scrollphat hd: scrollphat-bitfinex.service

2. reload the services: sudo systemctl daemon-reload
3. enable the service at boot: sudo systemctl enable scrollphat[hd]-bitfinex.service
4. reboot the pi with sudo reboot or start the service manually with: sudo systemctl start scrollphat[hd]-bitfinex.service
