feat(eqdsk): add R,Z to flux coordinate interpolation and Sphinx docs

[krystophny]

User description

Summary

• Add R,Z to flux coordinate conversion methods to eqdsk_file class in Python library
• Set up Sphinx documentation infrastructure
• Configure GitHub Pages deployment for documentation

New Features

Flux Coordinate Interpolation

The eqdsk_file class now supports converting arbitrary (R, Z) cylindrical coordinates to flux coordinates:

from libneo import eqdsk_file

eq = eqdsk_file('equilibrium.geqdsk')

# Convert measurement points to flux coordinates
R_data = np.array([1.7, 1.8, 1.9])
Z_data = np.array([0.0, 0.1, -0.1])
s_pol, theta = eq.rz_to_flux_coords(R_data, Z_data)

# s_pol is normalized poloidal flux (0 at axis, 1 at LCFS)
# theta is geometric poloidal angle

Individual methods are also available:

• psi_at_rz(R, Z) - raw poloidal flux interpolation
• spol_at_rz(R, Z) - normalized flux coordinate
• theta_geometric_at_rz(R, Z) - geometric angle

Sphinx Documentation

• New docs/ directory with Sphinx configuration
• Documentation includes usage examples for plotting scalar data vs flux coordinates
• API reference generated from docstrings

GitHub Pages

• Docs deployed to root of GitHub Pages site
• Test dashboard moved to /test/ subdirectory
• Landing page links to both docs and test dashboard

Test plan

• Unit tests for all new interpolation methods (14 tests)
• All Python tests pass (52 passed, 9 skipped)
• Sphinx documentation builds successfully
• GitHub Actions workflow runs successfully after merge

---

PR Type

Enhancement, Documentation, Tests

---

Description

• Add flux coordinate interpolation methods to eqdsk_file class

  • psi_at_rz(): interpolate poloidal flux at arbitrary (R, Z) points
  • spol_at_rz(): compute normalized poloidal flux (0 at axis, 1 at LCFS)
  • theta_geometric_at_rz(): compute geometric poloidal angle
  • rz_to_flux_coords(): combined conversion to (s_pol, theta) coordinates

• Set up Sphinx documentation infrastructure with usage examples

  • Installation guide, EQDSK coordinate conversion tutorial, API reference
  • Automatic COCOS sign convention handling for different file sources

• Add comprehensive test suite with 14 unit tests for interpolation methods

• Configure GitHub Actions workflow to build and deploy docs to GitHub Pages

  • Docs deployed at root, test dashboard at /test/ subdirectory

---

Diagram Walkthrough

flowchart LR
  A["eqdsk_file class"] -->|"adds methods"| B["Flux coordinate<br/>interpolation"]
  B -->|"psi_at_rz"| C["Poloidal flux"]
  B -->|"spol_at_rz"| D["Normalized flux"]
  B -->|"theta_geometric_at_rz"| E["Poloidal angle"]
  B -->|"rz_to_flux_coords"| F["Combined conversion"]
  G["Sphinx docs"] -->|"includes"| H["Installation guide"]
  G -->|"includes"| I["EQDSK tutorial"]
  G -->|"includes"| J["API reference"]
  K["GitHub Actions"] -->|"builds"| G
  K -->|"deploys to"| L["GitHub Pages"]
  M["Test suite"] -->|"validates"| B

Loading

File Walkthrough

	Relevant files
Enhancement	1 files eqdsk.py Add flux coordinate interpolation methods                                +125/-1
Tests	1 files test_eqdsk_interpolation.py Add comprehensive interpolation method tests                          +137/-0
Documentation	6 files conf.py Sphinx configuration for documentation                                      +38/-0    index.rst Documentation landing page and navigation                                +27/-0    installation.rst Installation instructions and requirements                              +24/-0    eqdsk.rst EQDSK usage guide with coordinate conversion examples        +143/-0  api.rst Auto-generated API reference documentation                              +26/-0    Makefile Sphinx build automation makefile                                                  +14/-0
Configuration changes	1 files main.yml Add docs build and GitHub Pages deployment workflow            +50/-3
Dependencies	1 files pyproject.toml Add docs dependencies group                                                            +5/-0

---

[qodo-code-review]

PR Compliance Guide 🔍

Below is a summary of compliance checks for this PR:

Security Compliance
⚪	Supply chain risk Description: The workflow installs documentation build dependencies directly from PyPI without pinning exact versions (e.g., python -m pip install sphinx sphinx-rtd-theme scipy numpy), which creates a realistic supply-chain risk where a compromised or malicious upstream release could be pulled during CI runs. main.yml [130-137] Referred Code - name: Install docs dependencies run: | python -m pip install --upgrade pip python -m pip install sphinx sphinx-rtd-theme scipy numpy - name: Build docs run: | cd docs && sphinx-build -b html . _build/html
Ticket Compliance
⚪	🎫 No ticket provided Create ticket/issue
Codebase Duplication Compliance
⚪	Codebase context is not defined Follow the guide to enable codebase context checks.
Custom Compliance
🟢	Generic: Comprehensive Audit Trails Objective: To create a detailed and reliable record of critical system actions for security analysis and compliance. Status: Passed Learn more about managing compliance generic rules or creating your own custom rules
	Generic: Meaningful Naming and Self-Documenting Code Objective: Ensure all identifiers clearly express their purpose and intent, making code self-documenting Status: Passed Learn more about managing compliance generic rules or creating your own custom rules
	Generic: Secure Error Handling Objective: To prevent the leakage of sensitive system information through error messages while providing sufficient detail for internal debugging. Status: Passed Learn more about managing compliance generic rules or creating your own custom rules
	Generic: Secure Logging Practices Objective: To ensure logs are useful for debugging and auditing without exposing sensitive information like PII, PHI, or cardholder data. Status: Passed Learn more about managing compliance generic rules or creating your own custom rules
⚪	Generic: Robust Error Handling and Edge Case Management Objective: Ensure comprehensive error handling that provides meaningful context and graceful degradation Status: Missing edge checks: The new interpolation/coordinate conversion methods do not validate mismatched R/Z shapes (non-grid mode) or guard against a zero/near-zero denominator in spol_at_rz, so failures may surface as opaque NumPy/SciPy exceptions or invalid values. Referred Code def psi_at_rz(self, R, Z, grid=False): """ Interpolate poloidal flux psi at arbitrary (R, Z) coordinates. Parameters ---------- R : float or array_like Major radius coordinate(s) in meters. Z : float or array_like Vertical coordinate(s) in meters. grid : bool, optional If True, evaluate on the grid formed by R and Z arrays. If False (default), evaluate at corresponding pairs (R[i], Z[i]). Returns ------- psi : float or ndarray Poloidal flux value(s) at the given coordinates. """ import numpy as np if self._psi_interpolator is None: ... (clipped 89 lines) Learn more about managing compliance generic rules or creating your own custom rules
	Generic: Security-First Input Validation and Data Handling Objective: Ensure all data inputs are validated, sanitized, and handled securely to prevent vulnerabilities Status: No input validation: The new public methods (psi_at_rz, spol_at_rz, theta_geometric_at_rz, rz_to_flux_coords) accept arbitrary R/Z inputs without explicit validation (type/finite checks, shape compatibility, bounds expectations), relying on downstream NumPy/SciPy behavior and potentially producing nan/unexpected results for malformed or non-finite inputs. Referred Code def psi_at_rz(self, R, Z, grid=False): """ Interpolate poloidal flux psi at arbitrary (R, Z) coordinates. Parameters ---------- R : float or array_like Major radius coordinate(s) in meters. Z : float or array_like Vertical coordinate(s) in meters. grid : bool, optional If True, evaluate on the grid formed by R and Z arrays. If False (default), evaluate at corresponding pairs (R[i], Z[i]). Returns ------- psi : float or ndarray Poloidal flux value(s) at the given coordinates. """ import numpy as np if self._psi_interpolator is None: ... (clipped 89 lines) Learn more about managing compliance generic rules or creating your own custom rules
Update

Compliance status legend

🟢 - Fully Compliant
🟡 - Partial Compliant
🔴 - Not Compliant
⚪ - Requires Further Human Verification
🏷️ - Compliance label

[qodo-code-review]

PR Code Suggestions ✨

Explore these optional code suggestions:

Category	Suggestion	Impact
Possible issue	Prevent division by zero in normalization Add a check in spol_at_rz to prevent division by zero by ensuring _psi_at_edge and _psi_at_axis are not equal before performing the normalization. python/libneo/eqdsk.py [80] -return (psi - self._psi_at_axis) / (self._psi_at_edge - self._psi_at_axis) +denom = self._psi_at_edge - self._psi_at_axis +if np.isclose(denom, 0): + raise ValueError("psi_edge and psi_axis are equal; cannot normalize flux.") +return (psi - self._psi_at_axis) / denom Apply / Chat Suggestion importance[1-10]: 8 __ Why: This suggestion correctly identifies a potential division-by-zero error and proposes adding a check to prevent it, which significantly improves the robustness of the code.	Medium
	Ensure correct return type for scalars To ensure the return type matches the input type, check if the original R and Z inputs were scalars before converting a single-element array result back to a scalar. python/libneo/eqdsk.py [54-55] -if result.size == 1: +if np.isscalar(R) and np.isscalar(Z): result = result.item() Apply / Chat Suggestion importance[1-10]: 4 __ Why: The suggestion improves the robustness of the return type handling by explicitly checking if the inputs were scalars, making the API's behavior more predictable for different input types.	Low
General	Improve accuracy by using interpolation Improve the accuracy of _psi_at_axis by using the _psi_interpolator at the exact magnetic axis coordinates instead of using the value from the nearest grid point. python/libneo/eqdsk.py [14-16] -i_r_axis = np.argmin(np.abs(self.R - self.Rpsi0)) -i_z_axis = np.argmin(np.abs(self.Z - self.Zpsi0)) -self._psi_at_axis = self.PsiVs[i_z_axis, i_r_axis] +self._psi_at_axis = self._psi_interpolator((self.Zpsi0, self.Rpsi0)).item() Apply / Chat Suggestion importance[1-10]: 7 __ Why: The suggestion correctly points out that using the interpolator provides a more accurate value for psi at the magnetic axis, improving the precision of subsequent flux normalization calculations.	Medium
	Improve test by checking against header Modify test_psi_at_magnetic_axis_equals_psi_axis to assert that the interpolated psi at the magnetic axis is close to eq.PsiaxisVs from the file header, not the nearest grid point value. test/python/test_eqdsk_interpolation.py [20-27] def test_psi_at_magnetic_axis_equals_psi_axis(self, eq): R_axis = eq.Rpsi0 Z_axis = eq.Zpsi0 psi = eq.psi_at_rz(R_axis, Z_axis) - i_r = np.argmin(np.abs(eq.R - R_axis)) - i_z = np.argmin(np.abs(eq.Z - Z_axis)) - psi_grid_at_axis = eq.PsiVs[i_z, i_r] - assert np.isclose(psi, psi_grid_at_axis, rtol=1e-2) + assert np.isclose(psi, eq.PsiaxisVs, rtol=1e-2) Apply / Chat Suggestion importance[1-10]: 7 __ Why: This is an excellent suggestion that improves the test's correctness by comparing the interpolated result against the ground truth value from the file header (PsiaxisVs) rather than an implementation detail.	Medium
	Enable extrapolation for psi interpolation Enable extrapolation in the RegularGridInterpolator by setting fill_value=None, allowing it to estimate values outside the defined grid. python/libneo/eqdsk.py [11-13] self._psi_interpolator = RegularGridInterpolator( - (self.Z, self.R), self.PsiVs, method='cubic', bounds_error=False + (self.Z, self.R), + self.PsiVs, + method='cubic', + bounds_error=False, + fill_value=None ) Apply / Chat Suggestion importance[1-10]: 5 __ Why: The suggestion correctly identifies how to enable extrapolation, which can be a useful feature, though the default behavior of returning NaN for out-of-bounds points is also a safe and valid choice.	Low
Update

[krystophny]

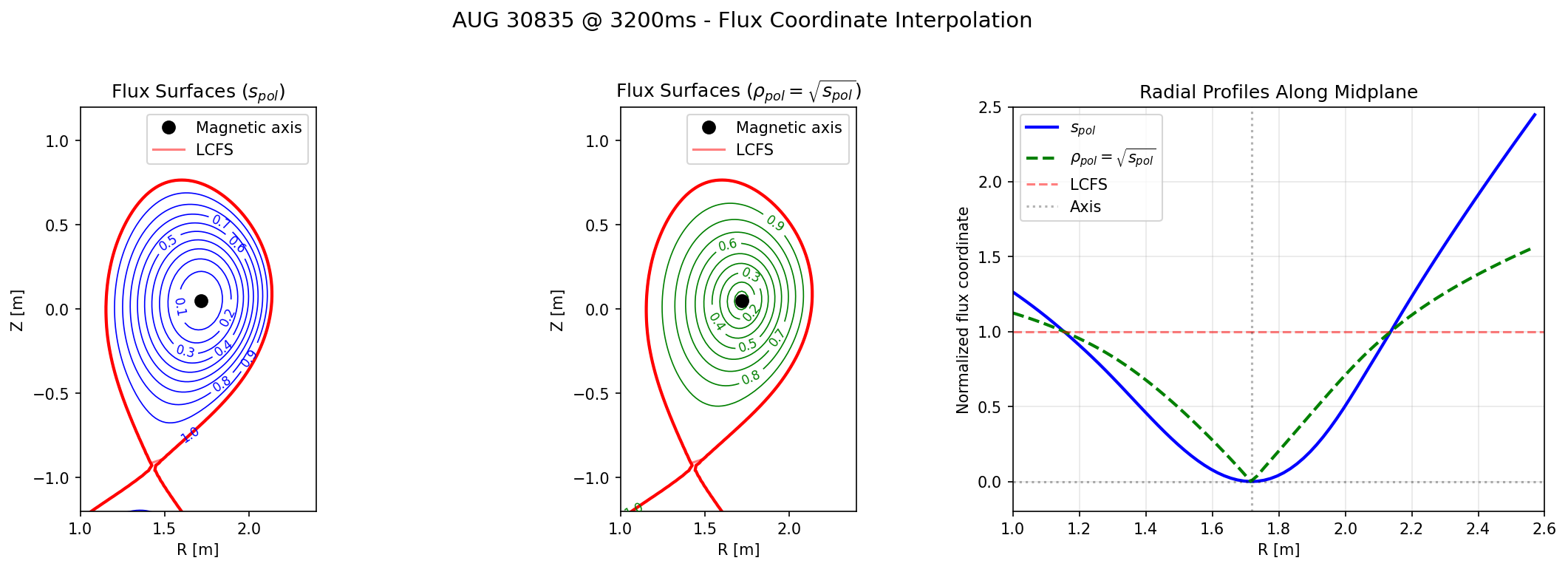

Visual Evidence: AUG 30835 @ 3200ms

Tested the flux coordinate interpolation with AUG shot 30835 at 3200ms.

Left: Flux surface contours (s_pol = 0 to 1) via spol_at_rz()

Middle: Same surfaces in rho_pol = sqrt(s_pol) - the commonly used radial coordinate

Right: Radial profiles along midplane (R = 1.0 to 2.6 m) comparing s_pol (blue) and rho_pol (green dashed)

Results:

s_pol at axis:   -0.0004 (expected: 0)
s_pol at LCFS:    1.0002 (expected: 1)
rho_pol at LCFS:  1.0001 (expected: 1)
Monotonicity:     True
