CSS Arrow Mixin

A mixin to generate CSS arrows with borders. Flexible direction and positioning of the arrow.

Options

Here are the options you pass to the mixin in order.

Height

size default: 10px

Define the height of the arrow itself, this does not include the border size.

Border

size default: 2px

Define the width of the border on top of the arrow. To not have a border set this to 0.

Color

hex or rgb/rgba default: #efefef

Define the color of the arrow itself.

Border Color

hex or rgb/rgba default: #999

Define color of the border. If you have no borders the color wouldn't matter but you can use none if you want.

Direction

top,left,right,bottom default: bottom

The direction you want the arrow to be relative to the parent element.

Outside

boolean default: true

By default the arrow is outside of the box and pointing away from its container. Setting this to false would set the arrow inside its container pointing to the center of the container.

Note

When adding this mixing to an element the parent element will be set to position: relative to position the arrow. If you need to use anything other than relative you should create another wrapper around the arrow container.

Example

CodePen Examples

All examples are based off of a div with the class .arrow:

<div class="arrow">Lorem Ipsum</div>

.arrow {
  border: 3px solid #97d4e8;
  border-radius: 4px;
  background: #c8e7f1;
  color: #2d7187;
  margin: 0 auto 40px;
  padding: 20px;
  text-align: center;
  width: 200px;
}

Outside

/* Top */
.arrow {
  @include css-arrow(10px, 3px, #c8e7f1, #97d4e8, top);
}

/* Right */
.arrow {
  @include css-arrow(10px, 3px, #c8e7f1, #97d4e8, right);
}

/* Bottom */
.arrow {
  @include css-arrow(10px, 3px, #c8e7f1, #97d4e8, bottom);
}

/* Left */
.arrow {
  @include css-arrow(10px, 3px, #c8e7f1, #97d4e8, left);
}

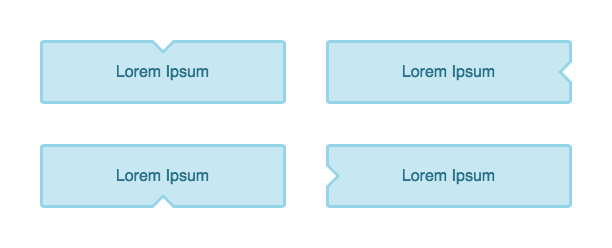

Inside

/* Top */
.arrow {
  @include css-arrow(10px, 3px, #c8e7f1, #97d4e8, top, false);
}

/* Right */
.arrow {
  @include css-arrow(10px, 3px, #c8e7f1, #97d4e8, false);
}

/* Bottom */
.arrow {
  @include css-arrow(10px, 3px, #c8e7f1, #97d4e8, false);
}

/* Left */
.arrow {
  @include css-arrow(10px, 3px, #c8e7f1, #97d4e8, false);
}

No Borders

/* No Borders Outside */
.arrow {
  @include css-arrow(10px, 0, #c8e7f1);
  border: none;
}

/* No Borders Inside */
.arrow {
  @include css-arrow(10px, 0, white, none, bottom, false);
  border: none;
}
