WLED Draw Something

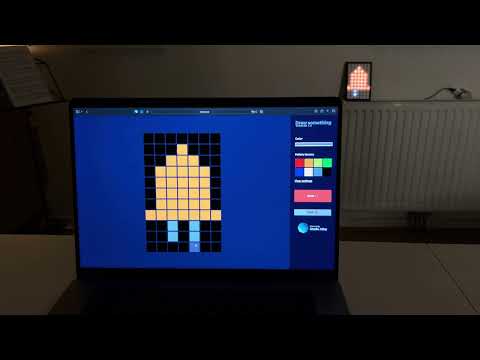

Draw and send pixel art direcly to your WLED 2D Matrix.

Try the demo 🚀

Note: the demo page can't access your API due to HTTPS Mixed Content

Use the tool

You can open the drawsomething.html file into any browser set the correct API endpoint, this looks like this http://[device_ip_address]/json or upload the drawsomething.html to your WLED environment, see below.

Install into your WLED environment

Go to releases and download the latest released file drawsomething.html. Within your

Steps

1. Download the drawsomething.html from releases
2. Go to the URL http://[device_ip_address]/edit
3. Upload the drawsomething.html file using the UI
4. Go to http://[device_ip_address]/drawsomething.html

About

I've made this tool so I could send pixel art to my SO, just as a fun way to leave a digital note at a at a random time in the day.

Road map

• Version 1 🎉
• Drag on mobile
• minify .html file
• Setup proper JSON object
• Load current image
• Undo/redo
• Propper build step, complile scss, setup local server and run node build.js on changes (was looking in to Vite.js)

Tools used

This tool is build using Vue.js and there is some SCSS to easily write CSS

Build process

I use Live Server and Live Sass Compiler to work on the app localy.

And there is a build.js file which creates a drawsomething.html with inline CSS and JS. Use Yarn or NPM to install the dependencies and then use node build.js to genrate the file in the /dist folder
