Online UK Voting System

UK-style election simulator demonstrating a first-past-the-post voting system. Features voter registration, candidate management, vote casting, and result tallying. Built with Spring Boot, this project highlights backend architecture, data handling, application logic, and system workflow implementation.

Technologies

• Java, MySQL
• Spring Boot 3 (Web)
• Spring Data JPA
• JUnit, Mockito, MockMVC
• Swagger (OpenAPI)
• Api documentation
• SLF4J (logging)
• Postman (API & performance testing)
• SonarQube (code quality analysis)
• Maven

---

Architectural Design

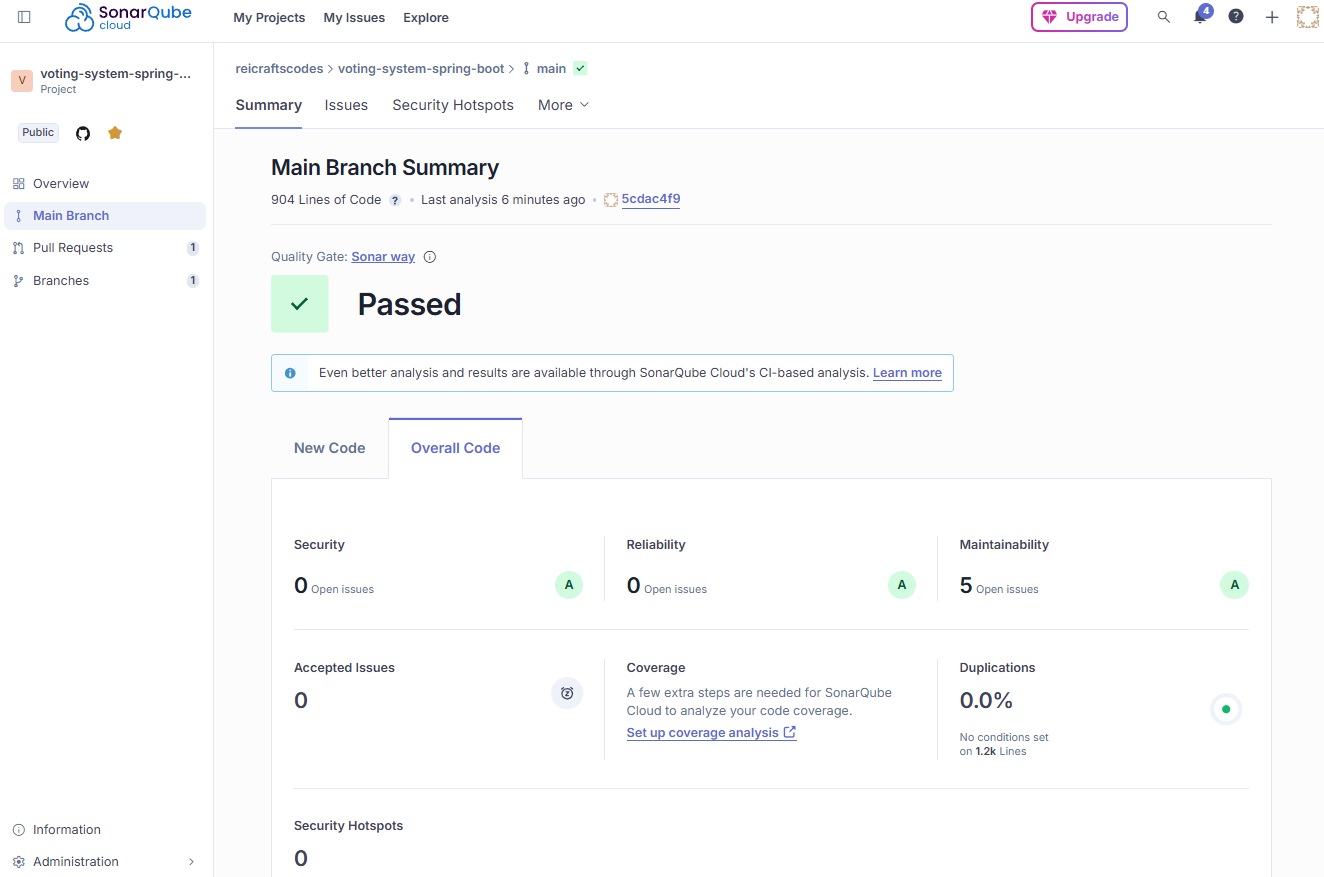

This project is also being actively checked with Sonarqube integrated in the developer's IDE. An analysis with SonarQube to would reveal the following:

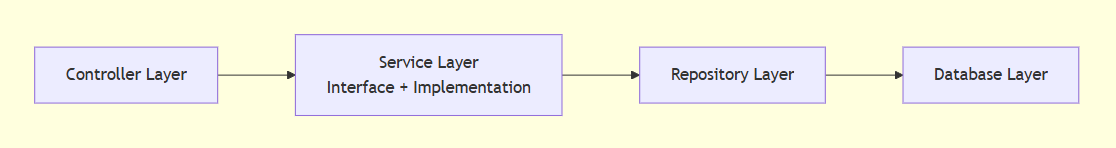

The backend follows a layered architecture:

Layers

1. Controller Layer

   • Handles HTTP requests/responses
   • Delegates business logic to the service layer
   • Examples: VotingController, UserDetailsController, PartyListController

2. Service Layer (Interface + Implementation)

   • Interfaces define available operations (VotingService, UserDetailsService, PartyListService)
   • Implementations (VotingServiceImpl, etc.) contain business logic, validation, and repository calls
   • Benefits: abstraction, testability, and flexibility for future extensions

3. Repository Layer

   • Handles database interactions via Spring Data JPA
   • Examples: VotingRepository, UserDetailsRepository, PartyListRepository
   • Custom queries used for aggregate functions, like total votes per party

---

Key Backend Design Decisions

Idempotent Vote Casting

• Each user can vote only once (user_details_id is unique in voting table)
• Application and database validation prevent duplicates
• Guarantees safe concurrent operations

Voter Eligibility & Validation

• Only users 18+ can vote
• Validated against National Insurance Number and Last Name
• Custom exceptions for meaningful feedback

Vote Counting & Data Types

• Vote counts use Long to safely support large-scale elections
• Aggregation handled efficiently in the service layer

REST API Design

• /api/v1/voting → cast votes, get receipts, retrieve totals
• /api/v1/users → manage voters (CRUD)
• /api/v1/uk/parties → manage party lists

Logging & Observability

• Critical actions logged with SLF4J
• Supports debugging, auditing, and transparency

---

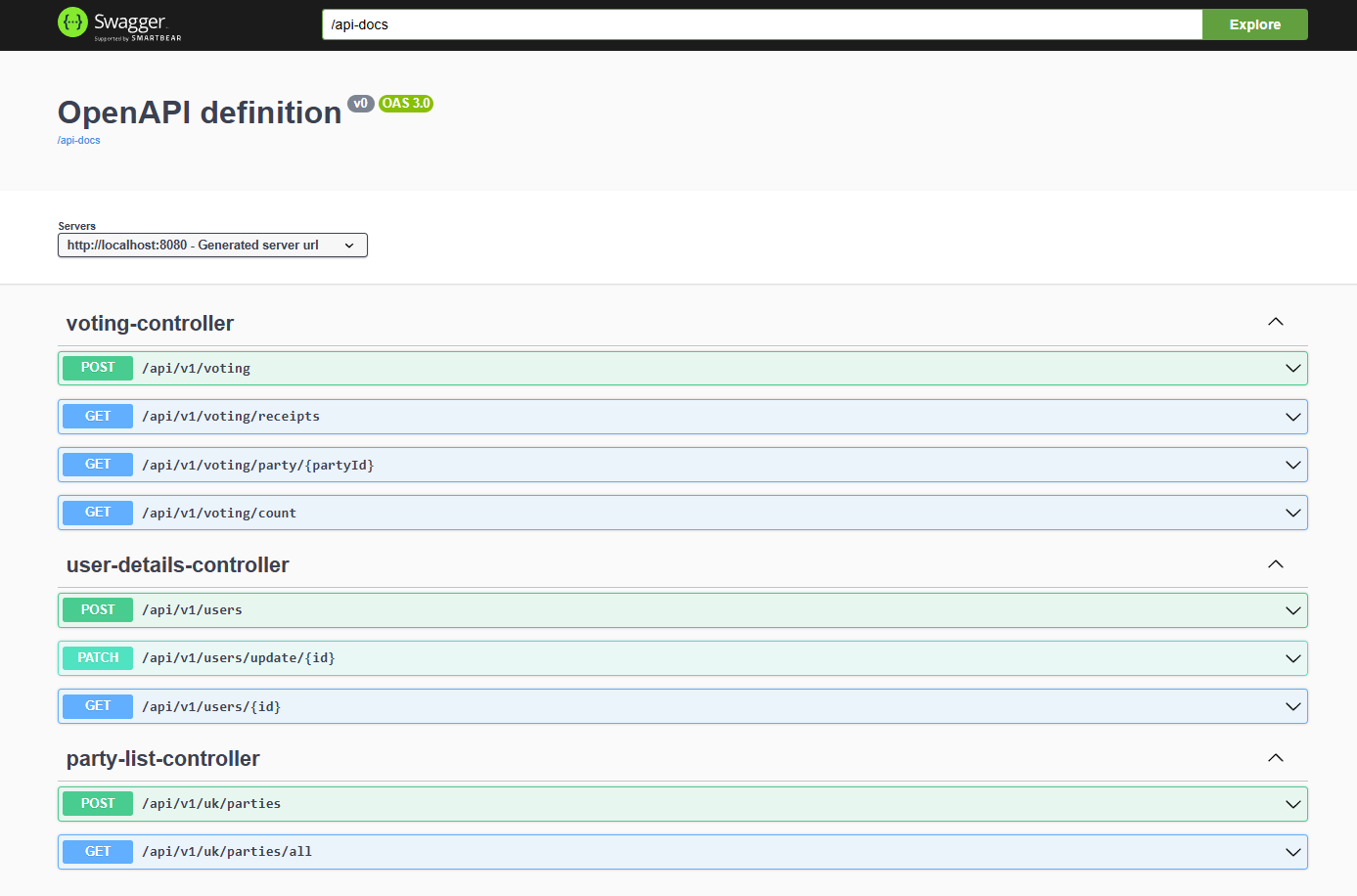

API Documentation

The services below have their own Swagger OpenAPI specifications, in order access the API Docs locally copy and paste the following url http://localhost:8080/swagger-ui/index.html

Base URL

http://localhost:8080/api/v1

User Details API

Endpoint	Method	Parameter	Type	Description
/users	POST	userDetails	Object (JSON)	Create a new user with personal details
/users/{id}	GET	id	Integer	Retrieve a user’s personal details
/users/update/{id}	PATCH	id	Integer	Update an existing user’s details
/users/update/{id}	PATCH	updateDetailsDto	Object (JSON)	Fields to update for the user

Example JSON for creating a user:

{
  "firstName": "John",
  "lastName": "Doe",
  "dateOfBirth": "1990-01-01",
  "nationalInsuranceNumber": "AB123456C"
}

---

UK Party List API

Endpoint	Method	Parameter	Type	Description
/uk/parties	POST	partyList	Object (JSON)	Create a new political party
/uk/parties/all	GET	—	—	Retrieve all party members

Example JSON for creating a party:

{
  "partyName": "Example Party",
  "position": "Leader"
}

---

Performance Testing

This is a simple test scenario to learn how APIs behave under load. We simulate multiple users casting votes at the same time to understand.

Note: focus is on understanding API performance basics rather than achieving high-scale testing.

Voting API

Endpoint	Method	Parameter	Type	Description
/voting	POST	request	Object (JSON)	Cast a vote for a party
/voting/receipts	GET	—	—	Fetch all voting receipts
/voting/count	GET	—	Long	Get total number of votes
/voting/party/{partyId}	GET	partyId	Integer	Get total votes for a specific party

Example JSON for casting a vote:

{
  "nationalInsuranceNumber": "AB123456C",
  "lastName": "Doe",
  "partyId": 1
}

---

Testing

This project is also being actively checked with Sonarqube integrated in the developer's IDE. An analysis with SonarQube to would reveal the following:

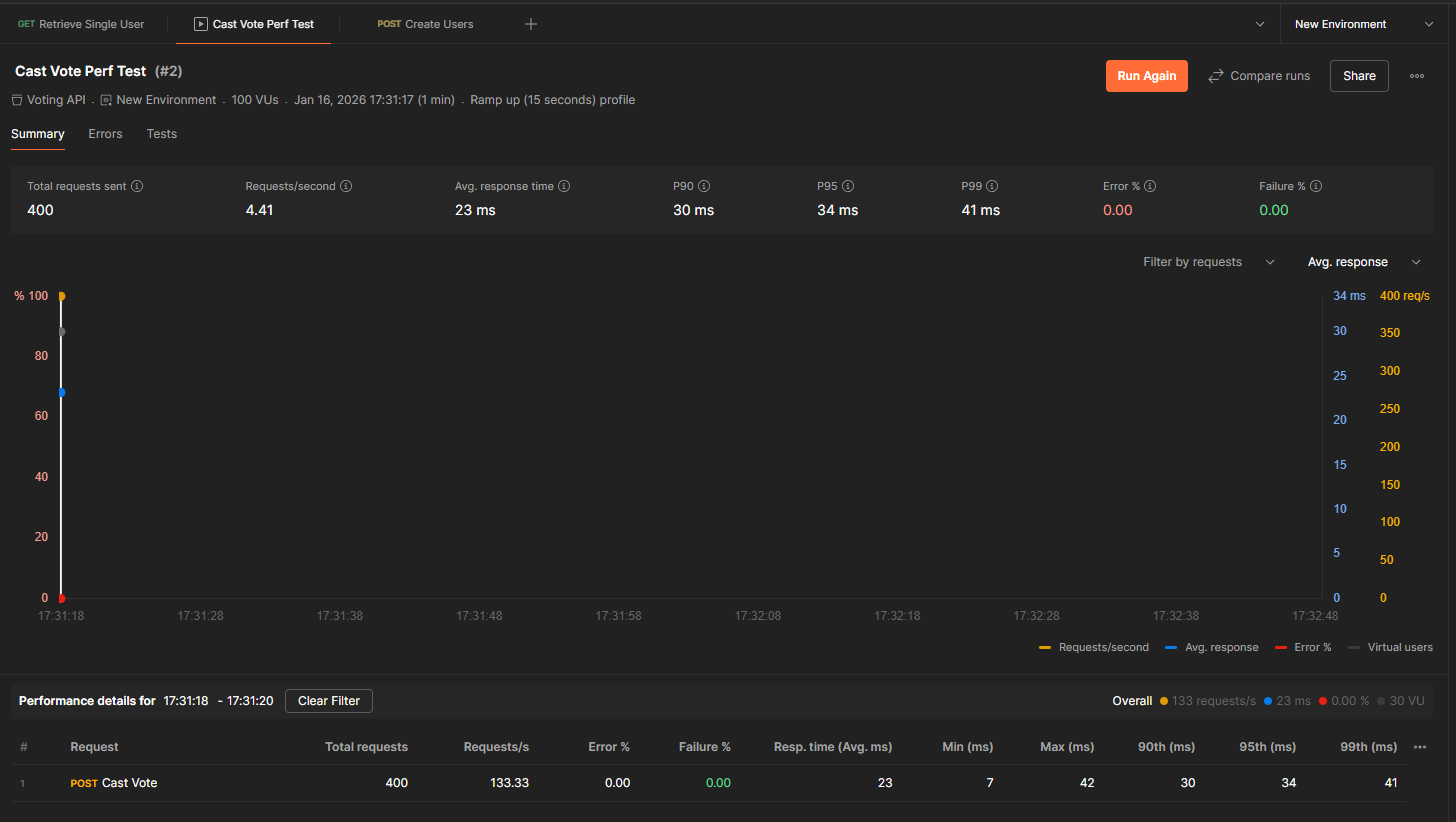

Performance Testing

• Simulated multiple users casting votes concurrently
• Monitored API response times and errors

Example Metrics:

• Requests/sec: 133.33
  • Average response time: 23 ms
  • P90 response time: 30 ms
  • Error %: 0.00%

Cloud & Deployment

• AWS RDS / Aurora for database
• AWS Elastic Beanstalk for deployment

Disclaimer

This project is not suitable for real elections.

Author

@reicraftscodes
