opm-draw.io

Draw.io template/diagram containing Object process methodology (OPM) (ISO 19450) shapes.

Object Process Methodology (OPM) is a way to model systems by showing how objects and processes interact. An OPM diagram describes a system's structure, behavior, and how everything works together, making complex ideas easy to understand.

Quick Start

Open draw.io online or desktop.

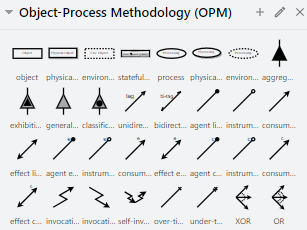

The file Object-Process Methodology (OPM).xml is a library definition that can be imported and provides the shapes as a library.

draw.io online

1. Download library file
2. File -> Open library from -> Device and select the XML file from your device.

or

1. File -> Open library from -> URL
2. Enter https://raw.githubusercontent.com/se3142/opm-draw.io/refs/heads/main/Object-Process%20Methodology%20(OPM).xml

draw.io Desktop

1. Download library file
2. File -> Open library.. -> select the XML file from your device

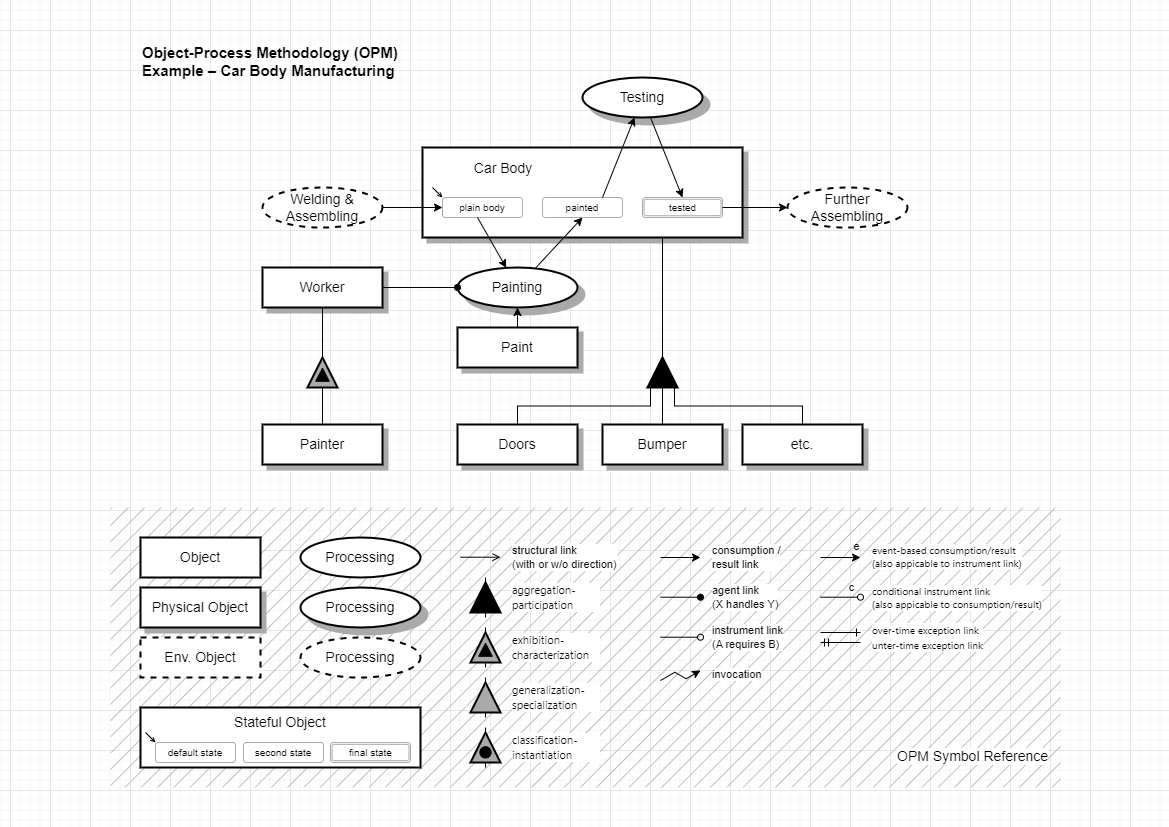

Example
