Pro Tools MCP Server

An MCP (Model Context Protocol) server that enables AI assistants like Claude to control Pro Tools via the PTSL (Pro Tools Scripting Library) gRPC API.

⚠️ Experimental Project: This is a work in progress and not all Pro Tools features are implemented yet. Use at your own risk!

Features

The server provides AI assistants with the following capabilities:

Session Management - Query session info, save sessions, get comprehensive session overview
Timeline Navigation - Browse tracks and clips with pagination, search by name, navigate the timeline (audio clips only)
Track Control - List, select, mute, solo, and manage tracks
Clip Management - Find and work with audio clips on the timeline
Editing Operations - Cut, copy, paste, clear, undo/redo with timeline selections
Markers - Create, list, and navigate session markers
Transport Control - Play, stop, record, and control playback
Visual Analysis - Generate waveform images and analyze audio content (onsets, peaks, silence detection)
Raw PTSL Access - Send custom PTSL commands for advanced use cases
Diagnostics - Test and verify PTSL connection status

Known Limitations

MIDI Clips: The timeline indexing only captures audio clips. MIDI clip positions cannot be queried due to PTSL API limitations. MIDI clips can be seen in the clip list but their timeline positions are not available.

Safety Features

The server uses a granular permission system to protect your Pro Tools sessions. By default, it runs in read-only mode with safe audio analysis enabled.

Default Permissions (No Configuration Needed)

Always allowed:

Read operations (queries, track lists, clip info, session info)
Playback control (play, stop, toggle)
UI state changes (mute/solo, timeline selection, edit tools)
Copy to clipboard (non-destructive)
Export audio to temp directories only (enables audio analysis)

Blocked by default (require ALLOW_WRITES to enable):

Creating/editing markers (memory)
Cut/paste/clear operations (clipboard)
Exporting to custom paths (export)
Creating/deleting tracks (track_structure)
Saving/opening sessions (session)
Recording (recording)

Enabling Write Operations

Use the ALLOW_WRITES environment variable to enable specific permission groups:

Claude Desktop (~/Library/Application Support/Claude/claude_desktop_config.json):

{
  "mcpServers": {
    "protools": {
      "command": "node",
      "args": ["/absolute/path/to/protools-mcp-server/dist/index.js"],
      "env": {
        "PTSL_PROTO_PATH": "/absolute/path/to/PTSL.proto",
        "ALLOW_WRITES": "memory,clipboard"
      }
    }
  }
}

Command Line:

# Allow markers and clipboard editing
ALLOW_WRITES=memory,clipboard PTSL_PROTO_PATH=/path/to/PTSL.proto node dist/index.js

# Allow everything (use with caution)
ALLOW_WRITES=all PTSL_PROTO_PATH=/path/to/PTSL.proto node dist/index.js

Permission Groups

Group	Operations	Risk Level
`memory`	Create/edit/delete markers	🟢 Safe
`export`	Export audio to any location	🟡 Moderate
`clipboard`	Cut/paste/clear audio	🟠 Destructive
`track_structure`	Create/delete tracks	🟠 Destructive
`session`	Save/open/close sessions	🔴 High
`recording`	Record audio	🔴 High

Audio Analysis for AI

Since AI models like Claude cannot directly listen to audio, this server provides several methods to help the AI "understand" audio content through visual and textual analysis. The analyze_audio tool can bounce any region of your Pro Tools session and analyze it in multiple ways:

Analysis Modes

Isolated Mode: Analyzes a single track by soloing it, bouncing the region, and generating analysis. Perfect for examining individual instruments or vocals.

Mix Mode: Analyzes the full mix as it currently sounds in Pro Tools, respecting all mute/solo states, automation, and plugin processing.

Analysis Types

1. Waveform Visualization

Generates a high-resolution waveform image with amplitude over time. The visualization includes:

Stereo channels displayed separately (top/bottom)
Time markers in Pro Tools timecode format (HH:MM:SS:FF)
Amplitude scale in dB (-24dB to 0dB reference)
Grid lines for visual orientation

Use cases: Identifying clip boundaries, seeing dynamics, spotting silence or loud sections, understanding rhythm patterns

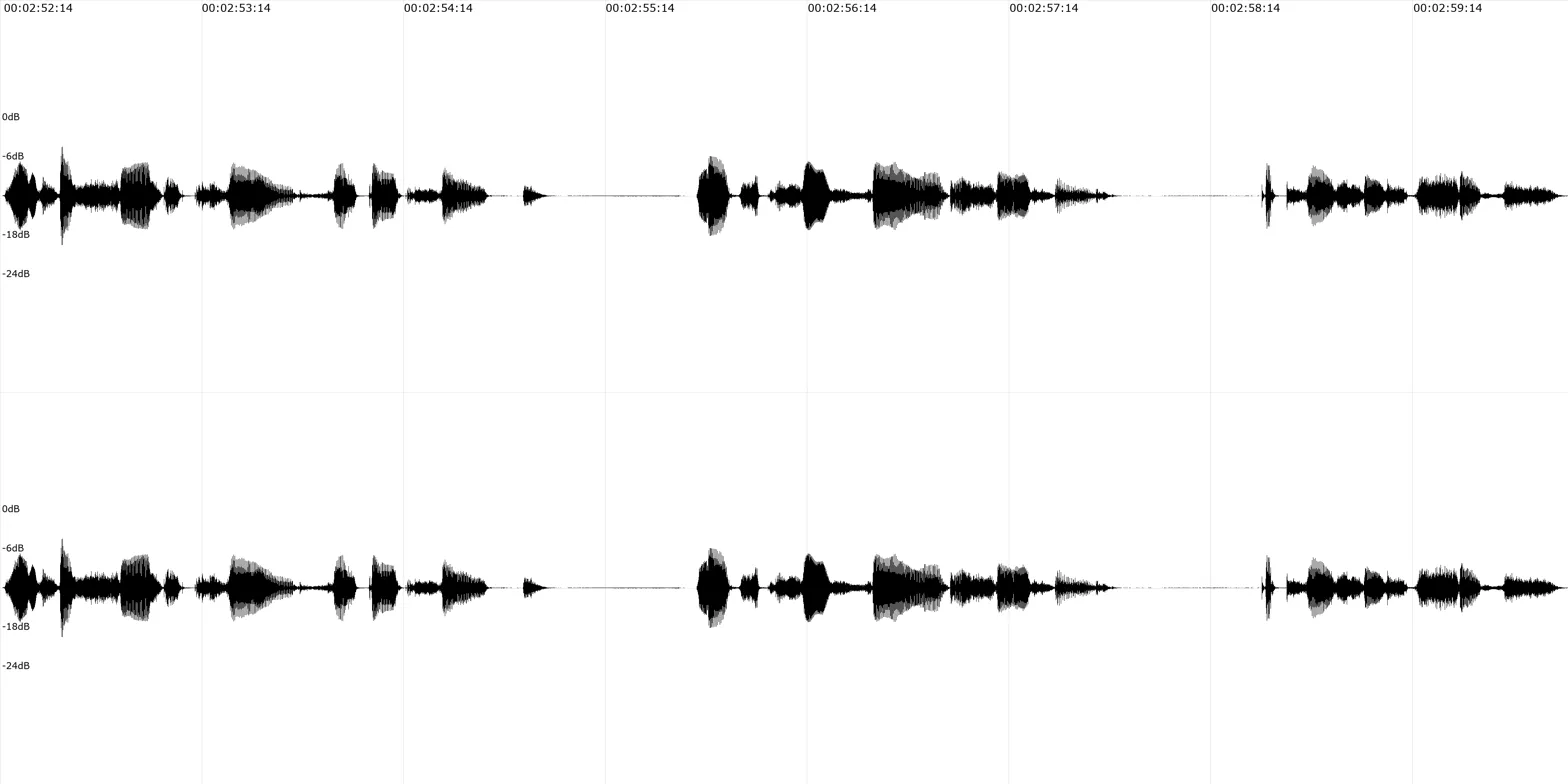

Example waveform output (4096x2048 pixels):

2. Spectrogram Visualization

Generates a frequency spectrum visualization showing frequency content over time. Colors represent amplitude at each frequency.

Use cases: Identifying frequency ranges, spotting harmonics, seeing tonal vs percussive content, detecting resonances

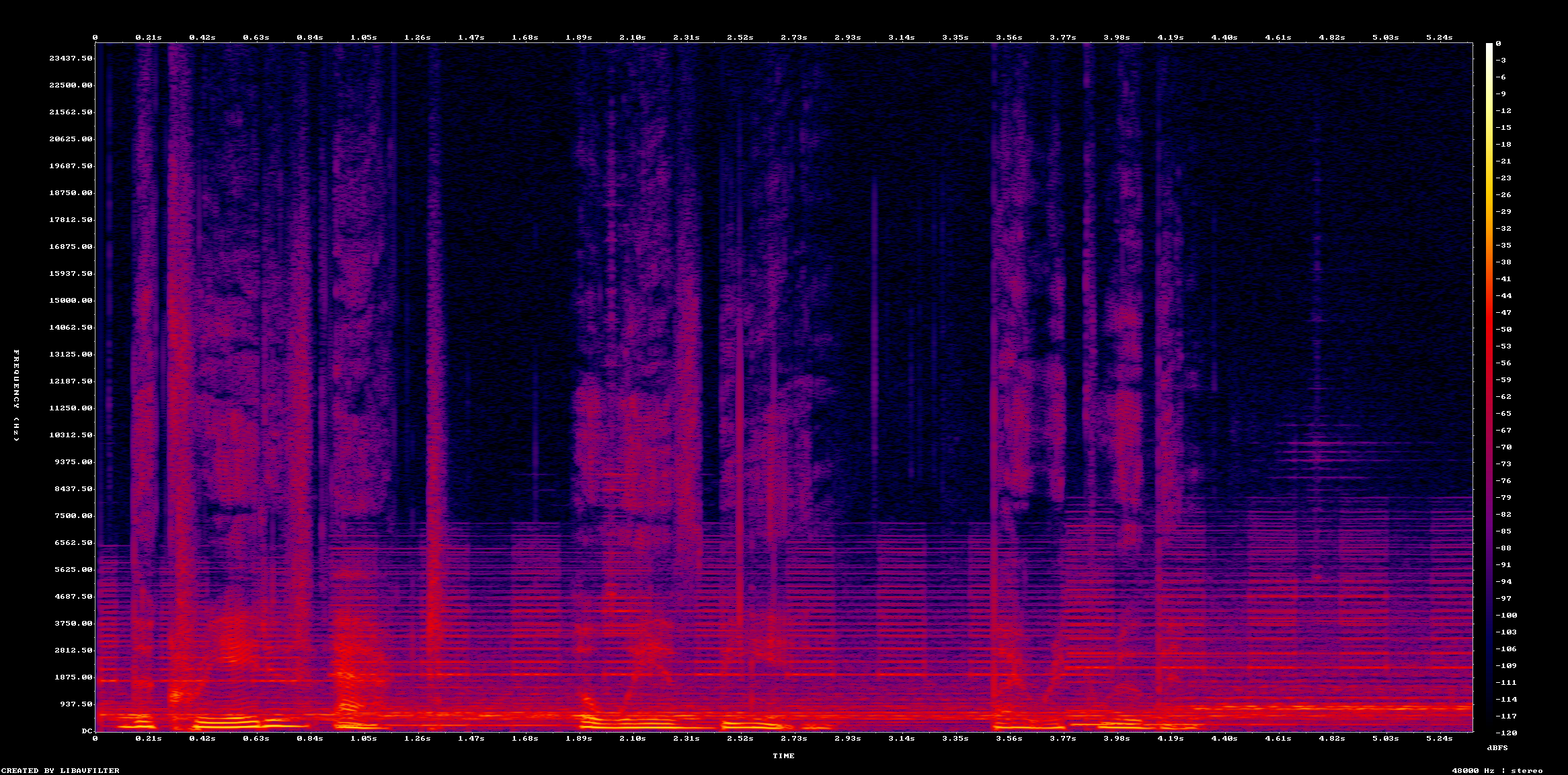

Example spectrogram output (2048x1024 pixels):

3. Peak/RMS Analysis

Provides overall amplitude statistics for the selected audio region.

Use cases: Checking overall levels, understanding average loudness, verifying headroom

Example peak analysis output:

**Overall Audio Statistics:**
RMS Level: -27.46 dB
Peak Level: -12.09 dB

This represents the average loudness (RMS) and maximum peak across the entire selected region.

4. Event/Onset Detection

Uses the Aubio library to detect transients and rhythmic events (drum hits, note attacks, etc.).

Use cases: Finding hit points for editing, understanding rhythm, identifying beats for marker placement

Example event detection output:

**Event/Onset Analysis**

Mode: mix
Time range: 00:00:10:00 - 00:00:15:00
Detected events: 24

**Onset Times:**
1. 00:00:10:02 (sample 480,960)
2. 00:00:10:17 (sample 488,160)
3. 00:00:11:02 (sample 495,360)
4. 00:00:11:17 (sample 502,560)
...

5. Silence Detection

Detects periods of silence or low-level audio based on configurable threshold and duration.

Use cases: Finding gaps between takes, identifying cleanup opportunities, detecting section boundaries

Parameters:

silence_threshold_db: Amplitude threshold (default: -40dB)
silence_min_duration: Minimum duration in seconds (default: 0.3s)

Example silence detection output:

**Silence Analysis**

Mode: isolated (track: Verse Lead Vocal)
Time range: 00:00:00:00 - 00:01:00:00
Threshold: -40dB, Min duration: 0.3s
Silent periods detected: 8

**Silent Periods:**
1. 00:00:05:12 - 00:00:08:23 (3.37s)
   Samples: 259,200 - 421,440
2. 00:00:19:04 - 00:00:20:15 (1.50s)
   Samples: 915,840 - 988,800
...

6. Combined Analysis

Runs all available text-based analyses (peaks, events, and silence) in one operation, providing a comprehensive overview of the audio content.

Use cases: Initial exploration of unfamiliar audio, getting complete context before making editing decisions

7. Raw Audio Delivery

Bounces a region to WAV format and returns it as base64-encoded data (limited to 10 seconds due to MCP message size limits).

Use cases: Archival, external processing, or future use with audio-capable AI models

Note: Claude and most current AI models cannot directly analyze audio files. This mode is included for future compatibility and external tool integration.

Requirements

ffmpeg: Required for waveform, spectrogram, peaks, and silence detection
- Install: brew install ffmpeg (macOS) or apt-get install ffmpeg (Linux)
aubio: Required for event/onset detection
- Install: brew install aubio (macOS) or apt-get install aubio (Linux)

The server will automatically detect which tools are available and provide appropriate error messages if required dependencies are missing.

⚠️ Legal Notice

This project does NOT include the PTSL.proto file from Avid's SDK.

Due to licensing restrictions, users must download the Pro Tools Scripting Library SDK from Avid and provide their own PTSL.proto file. The SDK is available for registered Avid developers.

To obtain the SDK:

Register for an Avid developer account at avid.com
Download the Pro Tools Scripting Library SDK
Extract PTSL.proto from the SDK

Prerequisites

Node.js >= 18
Pro Tools 2024.10 or later
Pro Tools Scripting Library SDK (for PTSL.proto)
Pro Tools must be running

PTSL Server

According to Avid's documentation, the PTSL server should be automatically available when Pro Tools is running - no special configuration is needed. The server runs on localhost:31416 by default.

Note: Make sure Pro Tools is actually running before attempting to connect!

Quick Start

Get up and running in 5 minutes:

Get the PTSL SDK - Download from Avid and extract PTSL.proto

Clone and build:

git clone <repository-url>
cd protools-mcp-server
npm install
npm run build

Test the connection:
```
npm run test-cli -- /path/to/PTSL.proto
```

Configure Claude Desktop - Add to claude_desktop_config.json:

{
  "mcpServers": {
    "protools": {
      "command": "node",
      "args": ["/absolute/path/to/protools-mcp-server/dist/index.js"],
      "env": {
        "PTSL_PROTO_PATH": "/absolute/path/to/PTSL.proto"
      }
    }
  }
}

Restart Claude Desktop and start using Pro Tools with AI!

Note: The server starts in read-only mode by default, which prevents any modifications to your session. This is perfect for exploring and learning. See the Safety Features section to enable write operations when ready.

Installation

npm install
npm run build

Testing the Connection

Before using the MCP server, test that you can connect to Pro Tools:

# Run the test CLI with path to your PTSL.proto file
npm run test-cli -- /path/to/PTSL.proto

# Example (if SDK is in ptsl_sdk directory):
npm run test-cli -- ptsl_sdk/Source/PTSL.proto

The test CLI will:

Connect to the PTSL server on localhost:31416
Register a connection
Query session information
List tracks

If Pro Tools is not running or PTSL is not enabled, you'll see connection errors.

Usage

Claude Desktop (Recommended)

To use the MCP server with Claude Desktop, add it to your Claude Desktop configuration file:

macOS: ~/Library/Application Support/Claude/claude_desktop_config.json Windows: %APPDATA%\Claude\claude_desktop_config.json

{
  "mcpServers": {
    "protools": {
      "command": "node",
      "args": ["/absolute/path/to/protools-mcp-server/dist/index.js"],
      "env": {
        "PTSL_PROTO_PATH": "/absolute/path/to/PTSL.proto"
      }
    }
  }
}

Example (macOS):

{
  "mcpServers": {
    "protools": {
      "command": "node",
      "args": ["/Users/username/protools-mcp-server/dist/index.js"],
      "env": {
        "PTSL_PROTO_PATH": "/Users/username/protools-mcp-server/ptsl_sdk/Source/PTSL.proto"
      }
    }
  }
}

After adding the configuration:

Restart Claude Desktop
Make sure Pro Tools is running
Ask Claude to help you with Pro Tools tasks!

Claude Cowork (Experimental/Untested)

⚠️ Note: The Cowork connector has not been extensively tested. Claude Desktop is the recommended approach.

Claude Cowork requires HTTPS. The server will use self-signed SSL certificates for local development.

Start the HTTPS server:

export PTSL_PROTO_PATH=/path/to/PTSL.proto
./start-cowork.sh

In Claude Cowork:
- Click "Add custom connector"
- Name: Pro Tools
- Remote MCP server URL: https://localhost:3000/sse
- Click "Add"
- Accept the security warning (self-signed certificate is safe for localhost)

Custom port:

PORT=3443 PTSL_PROTO_PATH=/path/to/PTSL.proto npm run start:http
# Then use: https://localhost:3443/sse

Example Use Cases

Here are some things you can ask Claude to do with your Pro Tools session:

Analysis & Navigation:

"Show me a waveform of the vocal track from 1 minute to 1:30"
"Find all the silent parts in the lead vocal track longer than 1 second"
"Where are the drum hits in the kick track between bars 8 and 16?"
"What clips are on the timeline between 30 seconds and 1 minute?"

Editing & Organization:

"Create markers at every vocal phrase in the lead vocal track"
"Find the clip named 'Guitar Solo 3' and select it"
"Mute all the drum tracks"
"Copy the selection and paste it at 2 minutes"

Session Management:

"What's the current session name and sample rate?"
"List all the tracks in my session"
"Save the session"

Playback Control:

"Play from 1 minute to 1:30"
"Stop playback"
"Start recording"

Available Tools

The MCP server provides 36 tools across multiple categories:

Session Management

get_session_info - Get current session name, path, and sample rate
get_session_length - Get total session duration
get_session_overview - Comprehensive session information
save_session - Save the current session

Track Management

get_track_list - List all tracks with their properties
select_tracks - Select tracks by name or pattern
set_track_mute - Mute/unmute tracks
set_track_solo - Solo/unsolo tracks

Timeline & Clips

refresh_pro_tools_index - Sync timeline cache with Pro Tools session
get_timeline_tracks - Browse tracks with pagination
get_timeline_clips - Browse clips with pagination
search_timeline - Search for tracks/clips by name
get_clip_list - List clips in the clip bin
select_clip_on_timeline - Select a specific clip on the timeline
get_timeline_selection - Get current timeline selection range
set_timeline_selection - Set timeline selection to specific time range

Transport Control

play - Start playback
stop - Stop playback/recording
toggle_play - Toggle play/stop
record - Start recording
set_playback_mode - Configure loop/dynamic transport mode

Editing Operations

cut - Cut selected audio
copy - Copy selected audio
paste - Paste from clipboard
clear - Clear/delete selected audio
undo - Undo last operation
redo - Redo last undone operation

Markers

get_markers - List all memory locations/markers
create_marker - Create a new marker at specified time
edit_marker - Modify existing marker name/time
delete_marker - Delete a specific marker
delete_all_markers - Remove all markers
select_marker - Navigate to and select a marker

Audio Analysis

analyze_audio - Analyze audio regions with multiple analysis types:
- Waveform visualization
- Spectrogram (frequency analysis)
- Peak/RMS amplitude data
- Event/onset detection (requires aubio)
- Silence detection
- Combined analysis
- Raw audio delivery

Advanced/Diagnostics

ptsl_command - Send raw PTSL commands directly
sample_ptsl_responses - View example PTSL API responses

Development

# Install dependencies
npm install

# Build TypeScript
npm run build

# Test PTSL connection
npm run test-cli -- /path/to/PTSL.proto

# Test MCP server
export PTSL_PROTO_PATH=/path/to/PTSL.proto
./test-mcp.sh
./test-tools.sh

# Test write protection safety mechanism
node test-write-protection.js                           # Test read-only mode
ALLOW_WRITE_OPERATIONS=true node test-write-protection.js  # Test with writes enabled

Project Structure

protools-mcp-server/
├── src/
│   ├── index.ts              # MCP server entry point
│   ├── test-cli.ts           # Test CLI for PTSL connection
│   ├── grpc/
│   │   ├── client.ts         # PTSL gRPC client wrapper
│   │   └── commands.ts       # CommandId enum
│   ├── tools/                # MCP tools (TBD)
│   └── resources/            # MCP resources (TBD)
├── package.json
├── tsconfig.json
└── README.md

Architecture

User Request (Claude/AI)
    ↓
MCP Server (TypeScript - this project)
    ↓
gRPC Client (generated from user's PTSL.proto)
    ↓
Pro Tools PTSL Server (localhost:31416)
    ↓
Pro Tools Application

Project Status & Roadmap

What Works Well

✅ Basic session management (info, save, navigation)
✅ Track control (list, select, mute, solo)
✅ Timeline navigation and search (audio clips only)
✅ Transport control (play, stop, record)
✅ Basic editing operations (cut, copy, paste, clear, undo/redo)
✅ Marker management (create, list, edit, delete, navigate)
✅ Audio analysis (waveforms, spectrograms, peaks, events, silence detection)
✅ Timeline selection management

Known Issues & Limitations

⚠️ MIDI clip timeline positions cannot be indexed (PTSL API limitation)
⚠️ Some advanced Pro Tools features not yet exposed via PTSL
⚠️ Audio analysis requires external dependencies (ffmpeg, aubio)
⚠️ Raw audio delivery limited to 10 seconds due to MCP message size constraints

Potential Future Enhancements

🔮 Plugin parameter control
🔮 Automation read/write
🔮 Send/aux routing management
🔮 I/O configuration
🔮 Mixer snapshots
🔮 Batch processing operations
🔮 Session template creation
🔮 Extended MIDI support (if PTSL API expands)

Troubleshooting

"Failed to connect to PTSL server"

Make sure Pro Tools is running
Verify PTSL is enabled in Pro Tools Preferences
Check that nothing else is using port 31416

"Request refused. Use the RegisterConnection command first"

This usually means Pro Tools is not running
Try restarting Pro Tools

"SDK_VersionMismatch: The client and host interface versions are incompatible"

Make sure you're using the correct PTSL.proto version
The proto version should match your Pro Tools version
Download the matching SDK from Avid if needed

Proto file errors

Make sure you're using the correct PTSL.proto version
The proto file should match your Pro Tools version
Download the latest SDK from Avid if needed

Contributing

Contributions are welcome! Here's how you can help:

Reporting Issues

Use GitHub Issues to report bugs or request features
Include Pro Tools version, PTSL SDK version, and OS details
Provide session details if reporting behavior issues
Include error messages and logs when applicable

Contributing Code

Fork the repository
Create a feature branch (git checkout -b feature/amazing-feature)
Make your changes and test thoroughly
Follow the existing code style (TypeScript, ESLint)
Update documentation as needed
Commit your changes (git commit -m 'Add amazing feature')
Push to your branch (git push origin feature/amazing-feature)
Open a Pull Request

Development Guidelines

All new tools should follow the existing tool structure in src/tools/
Add appropriate error handling and validation
Include JSDoc comments for public APIs
Test with a real Pro Tools session when possible
Update the README if adding new capabilities

Testing

Before submitting a PR, ensure:

npm run build          # Build succeeds
npm run test-cli       # PTSL connection works
./test-mcp.sh          # MCP server initializes
./test-tools.sh        # Tool registration works

License

MIT License - see LICENSE file

Acknowledgments

Pro Tools and PTSL are trademarks of Avid Technology, Inc. This is an independent open-source project and is not affiliated with or endorsed by Avid.

Support & Community

Issues: Report bugs and request features via GitHub Issues
Discussions: Ask questions and share workflows in GitHub Discussions
PTSL Documentation: Refer to Avid's official PTSL documentation from the SDK

This project is experimental and community-driven. Help make it better by contributing code, reporting issues, or sharing your use cases!

Name		Name	Last commit message	Last commit date
Latest commit History 7 Commits
docs		docs
examples		examples
scripts		scripts
src		src
.gitignore		.gitignore
LICENSE		LICENSE
README.md		README.md
generate-certs.sh		generate-certs.sh
package-lock.json		package-lock.json
package.json		package.json
start-cowork.sh		start-cowork.sh
test-mcp.sh		test-mcp.sh
test-tools.sh		test-tools.sh
tsconfig.json		tsconfig.json

License

skrul/protools-mcp-server

Folders and files

Latest commit

History

Repository files navigation

Pro Tools MCP Server

Features

Known Limitations

Safety Features

Default Permissions (No Configuration Needed)

Enabling Write Operations

Permission Groups

Audio Analysis for AI

Analysis Modes

Analysis Types

1. Waveform Visualization

2. Spectrogram Visualization

3. Peak/RMS Analysis

4. Event/Onset Detection

5. Silence Detection

6. Combined Analysis

7. Raw Audio Delivery

Requirements

⚠️ Legal Notice

Prerequisites

PTSL Server

Quick Start

Installation

Testing the Connection

Usage

Claude Desktop (Recommended)

Claude Cowork (Experimental/Untested)

Example Use Cases

Available Tools

Session Management

Track Management

Timeline & Clips

Transport Control

Editing Operations

Markers

Audio Analysis

Advanced/Diagnostics

Development

Project Structure

Architecture

Project Status & Roadmap

What Works Well

Known Issues & Limitations

Potential Future Enhancements

Troubleshooting

"Failed to connect to PTSL server"

"Request refused. Use the RegisterConnection command first"

"SDK_VersionMismatch: The client and host interface versions are incompatible"

Proto file errors

Contributing

Reporting Issues

Contributing Code

Development Guidelines

Testing

License

Acknowledgments

Support & Community

About

Resources

License

Uh oh!

Stars

Watchers

Forks

Releases

Packages 0

Languages

Packages
