myEcomShop

A sample e-commerce reference application built with ASP.NET Core (.NET 9) demonstrating a microservices architecture. The solution is fully containerized with Docker Compose and showcases common patterns such as API gateway communication, event-driven messaging, hybrid caching, and structured logging.

---

Architecture Overview

+----------------+          +--------------------+          +--------------------+
|                | -------> |   Catalog API      | -------> |                    |
|   Web App      |          |  (Controllers)     |          |                    |
| (Razor Pages   |          +--------------------+          |    SQL Server      |
|   + MVC)       | -------> |   Orders API       | -------> |                    |
|                |          |  (Minimal APIs)    |          |                    |
+----------------+          +--------------------+          +--------------------+
                                     |
                                     | Publish
                                     v
                            +--------------------+
                            |     RabbitMQ       |
                            +--------------------+
                                     |
                                     | Consume
                                     v
                            +--------------------+
                            |  Queue Processor   |
                            | (Worker Service)   |
                            +--------------------+

The application is composed of the following services:

Service	Project	Description
Web	Ecom.Web	Customer-facing storefront built with ASP.NET Core MVC and Razor Pages. Communicates with backend APIs via HttpClient with Microsoft resilience (Polly) policies.
Catalog API	Ecom.Catalog.Api	REST API serving product catalog data (products, categories, recommendations). Uses controller-based routing.
Orders API	Ecom.Orders.Api	REST API handling shopping cart and checkout operations. Uses Minimal APIs with endpoint groups. Publishes order events to RabbitMQ.
Queue Processor	Ecom.QueueProcessor	.NET Worker Service (BackgroundService) that consumes order.received messages from RabbitMQ for downstream processing (e.g., fulfillment, email notifications).

Shared Libraries

Project	Purpose
Ecom.Core	Domain entities, caching abstractions (HybridCache + Redis), event publishing infrastructure, and custom middleware.
Ecom.Data	Entity Framework Core DbContext, generic repository pattern, and database migrations.

---

Tech Stack

Category	Technology
Framework	.NET 9 / C#
Web UI	ASP.NET Core MVC + Razor Pages
APIs	ASP.NET Core Web API (Controllers & Minimal APIs)
Database	SQL Server 2022
ORM	Entity Framework Core + Dapper
Messaging	RabbitMQ
Caching	Redis + HybridCache
Resilience	Microsoft.Extensions.Http.Resilience (Polly)
Logging	Serilog -> Seq
Containers	Docker & Docker Compose

---

Prerequisites

• .NET 9 SDK
• Docker Desktop (for containerized run)

---

Getting Started

Option 1 -- Docker Compose (recommended)

Run all services with a single command from the repository root (where the .sln file is located):

docker-compose build
docker-compose up

Option 2 -- Visual Studio

Open the solution in Visual Studio and press F5. The docker-compose project is configured as the startup project.

Accessing the Services

Once the containers are running, the following endpoints are available:

Service	URL
Web App	https://localhost:5201
Catalog API (Swagger)	http://localhost:5011/swagger/index.html
Orders API (Swagger)	http://localhost:5012/swagger/index.html
RabbitMQ Management	http://localhost:8088 (guest / guest)
Seq (Structured Logs)	http://localhost:5342

---

Key Patterns & Features

• Microservice Communication -- The Web app calls backend APIs through typed HttpClient instances registered with IHttpClientFactory.
• Resilience -- All outbound HTTP calls use AddStandardResilienceHandler() (retry, circuit breaker, timeout) powered by Polly via Microsoft.Extensions.Http.Resilience.
• Event-Driven Messaging -- When an order is placed, the Orders API publishes an order.received message to RabbitMQ. The Queue Processor worker service consumes these messages asynchronously.
• Hybrid Caching -- The Catalog API and Web app leverage HybridCache (in-memory + Redis L2) for scalable, tag-based cache invalidation.
• Health Checks -- Each API exposes a /health endpoint; Docker Compose uses these for container health monitoring.
• Structured Logging -- All services ship structured logs to Seq via Serilog, enriched with request host and user-agent metadata.
• Global Exception Handling -- A custom CustomExceptionHandlingMiddleware provides consistent error responses across APIs.
• Repository Pattern -- A generic IRepository<T> abstraction backed by EF Core, complemented by Dapper for performance-sensitive queries.

---

Screenshots

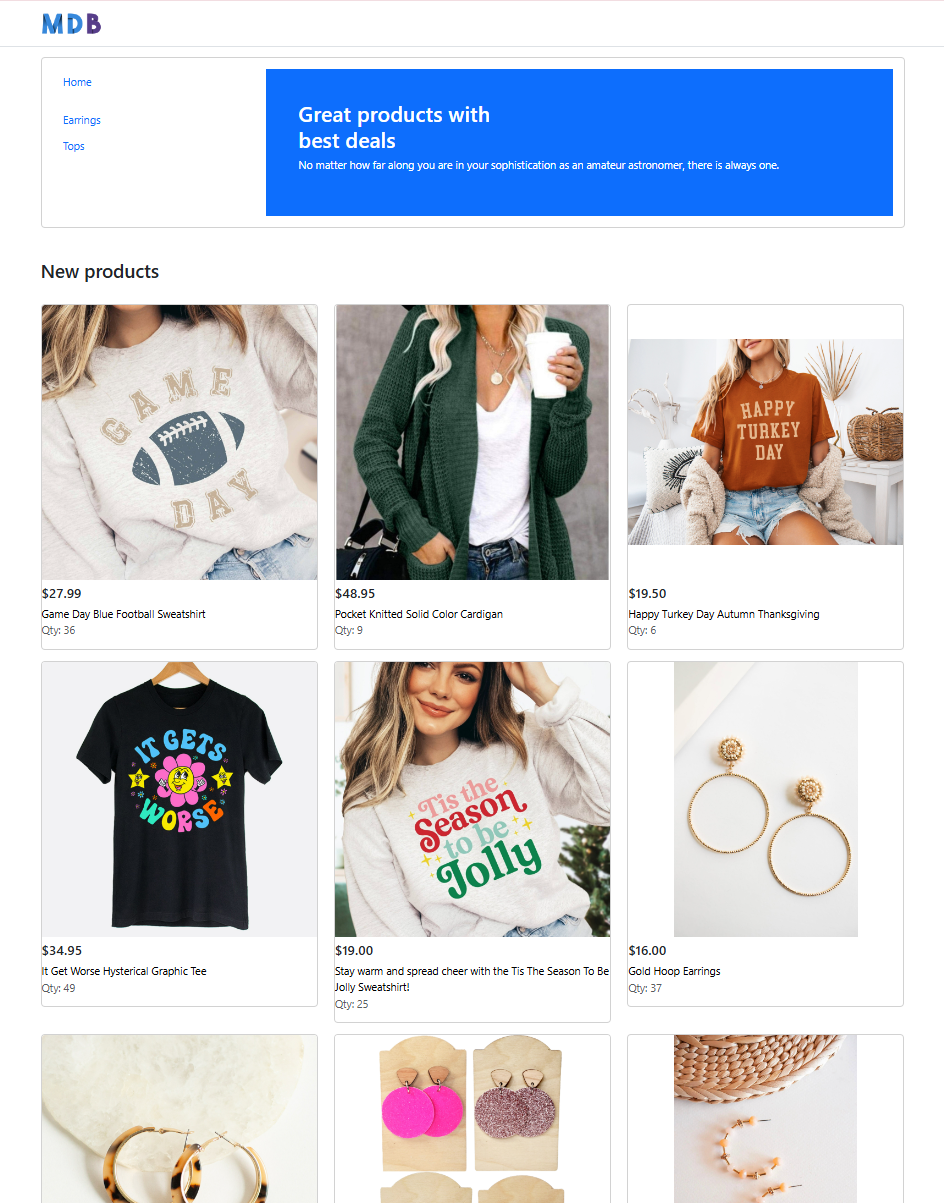

Home Page

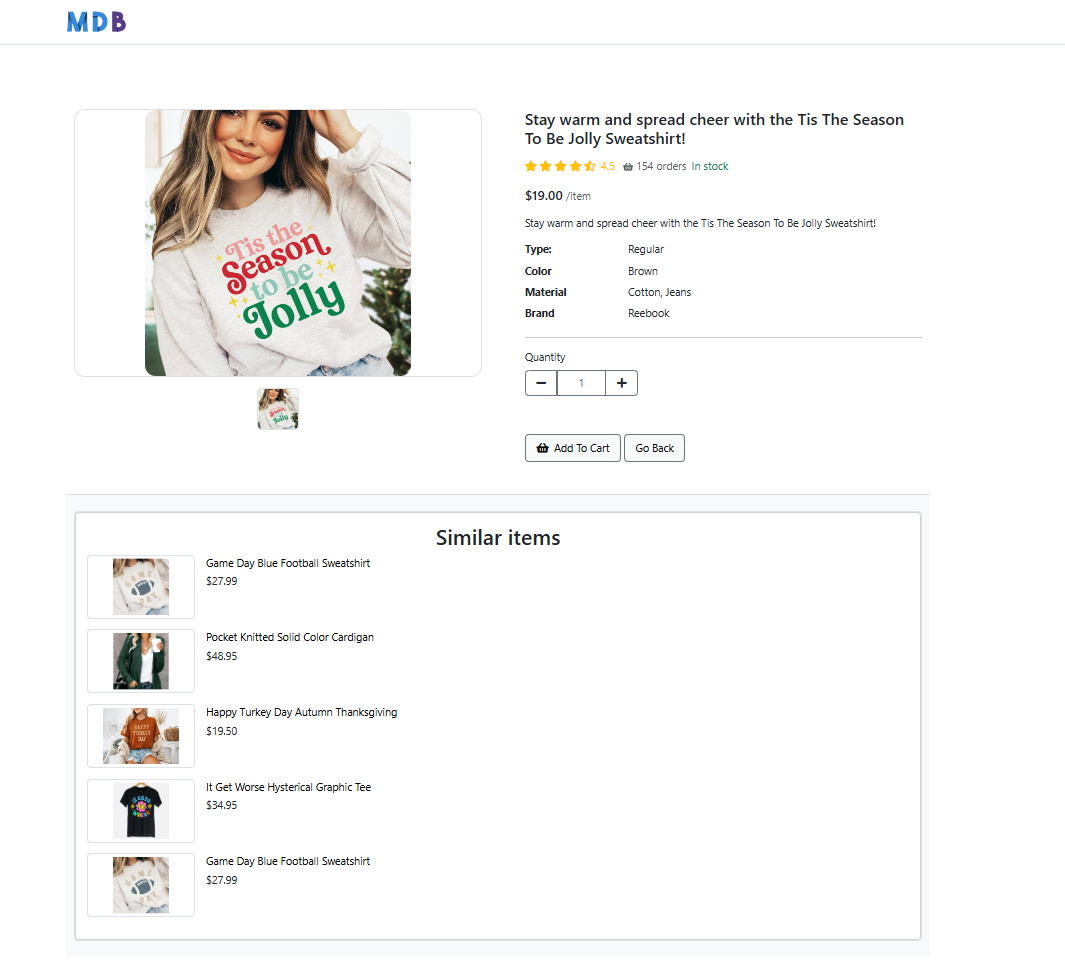

Product Details

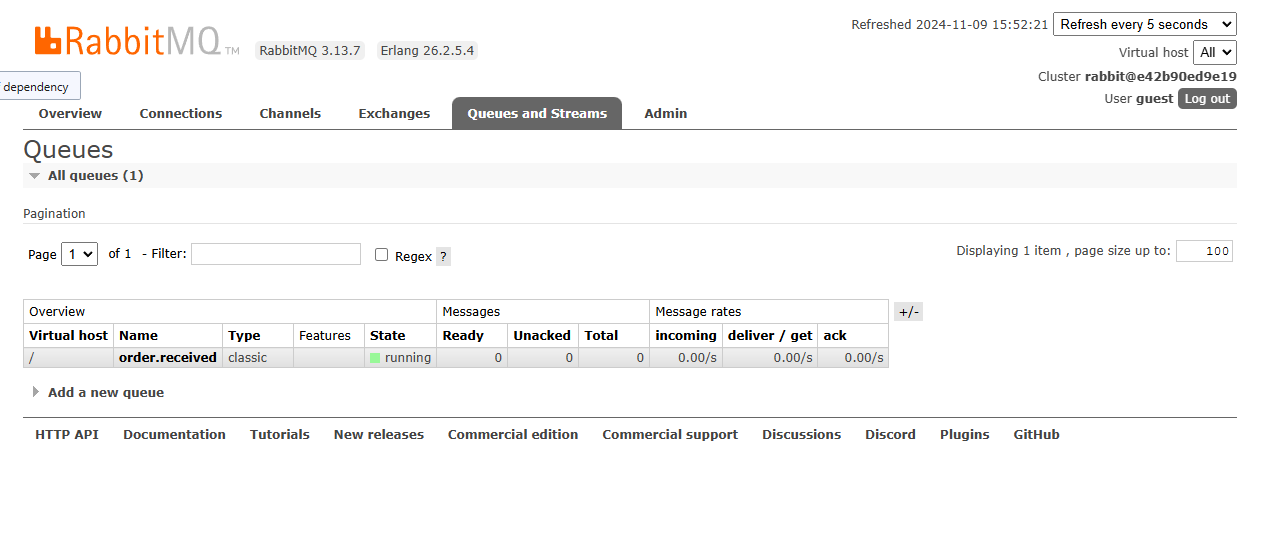

RabbitMQ Management

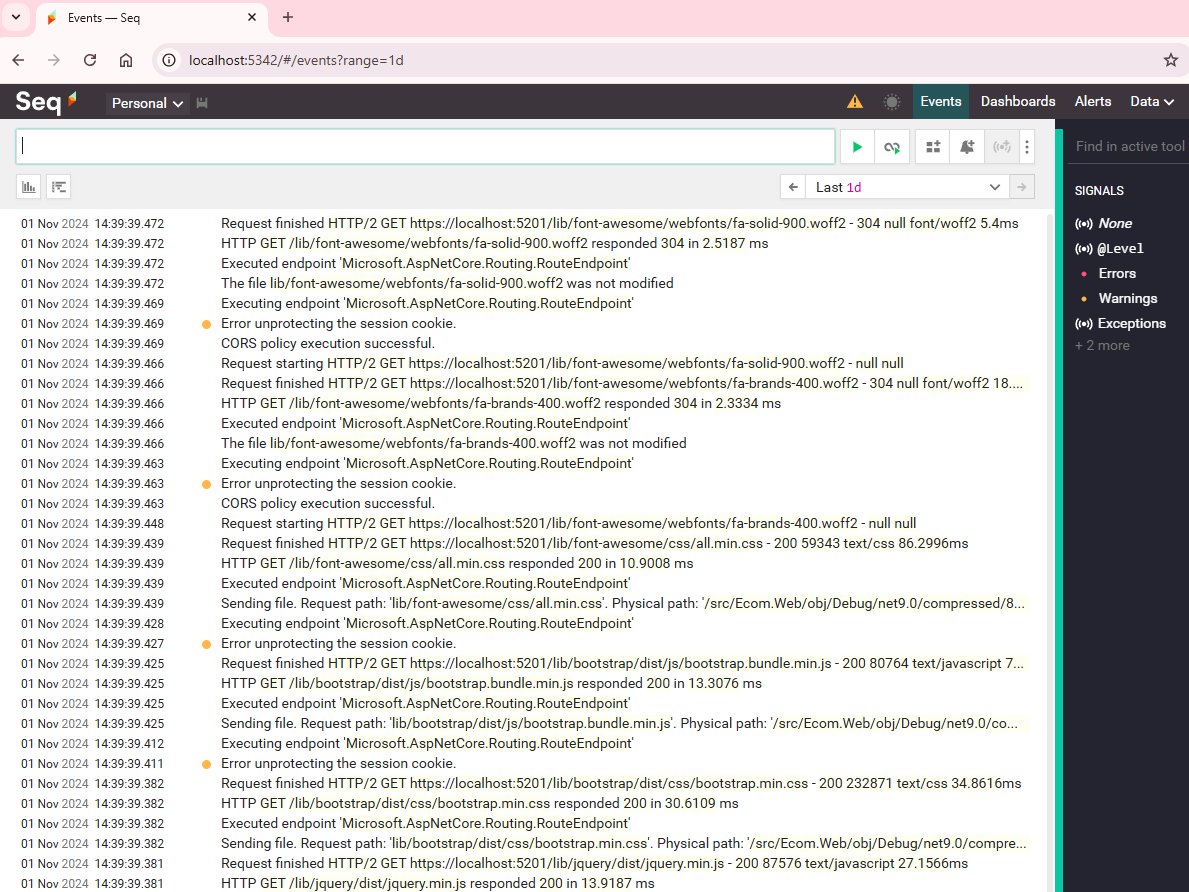

Seq Structured Logs
