PowerFlow Bar

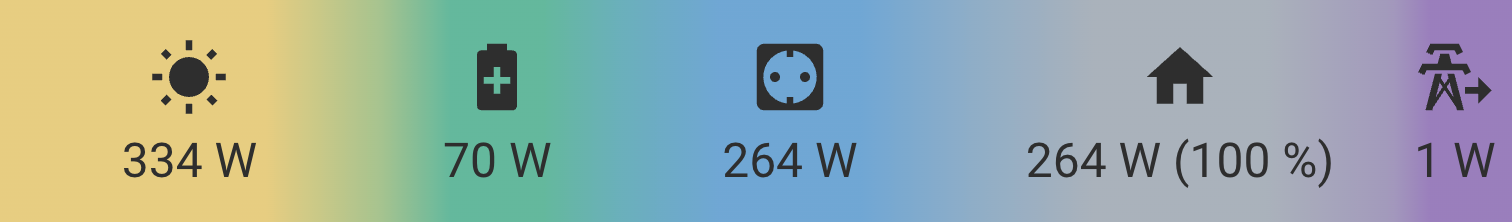

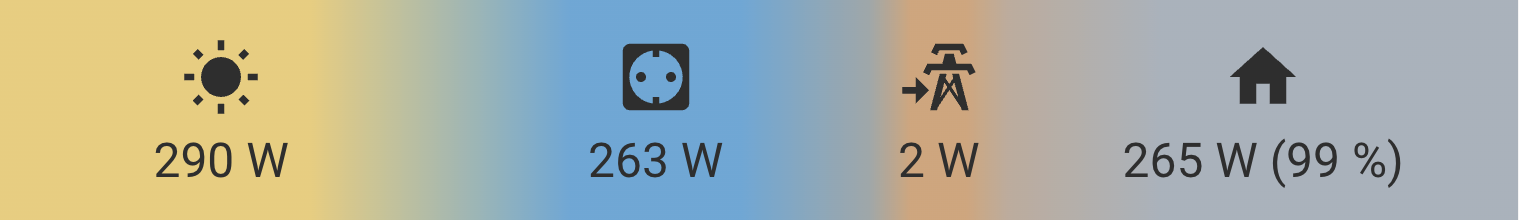

PowerFlow Bar is a custom Home Assistant Lovelace card that shows live power flow in a single animated segmented bar.

Features

• Single-row power-flow layout for PV, battery, home, and grid
• Separate Grid Import and Grid Export segments with configurable ordering
• Per-segment visibility thresholds and hysteresis to avoid flicker around zero
• Shared preset-based color themes with optional manual overrides
• Smooth width/value transitions for live power updates
• Built-in visual editor for layout, colors, entities, and visibility thresholds
• Clickable segment values that open Home Assistant more-info
• Missing or unavailable configured entities stay visible as — instead of collapsing the full card
• Uses Home Assistant's native localized state formatting
• Adjustable height, radius, spacing, and background behavior for dashboard integration
• Adjustable height and corner radius to match Bubble Card layouts cleanly

Combined Setup

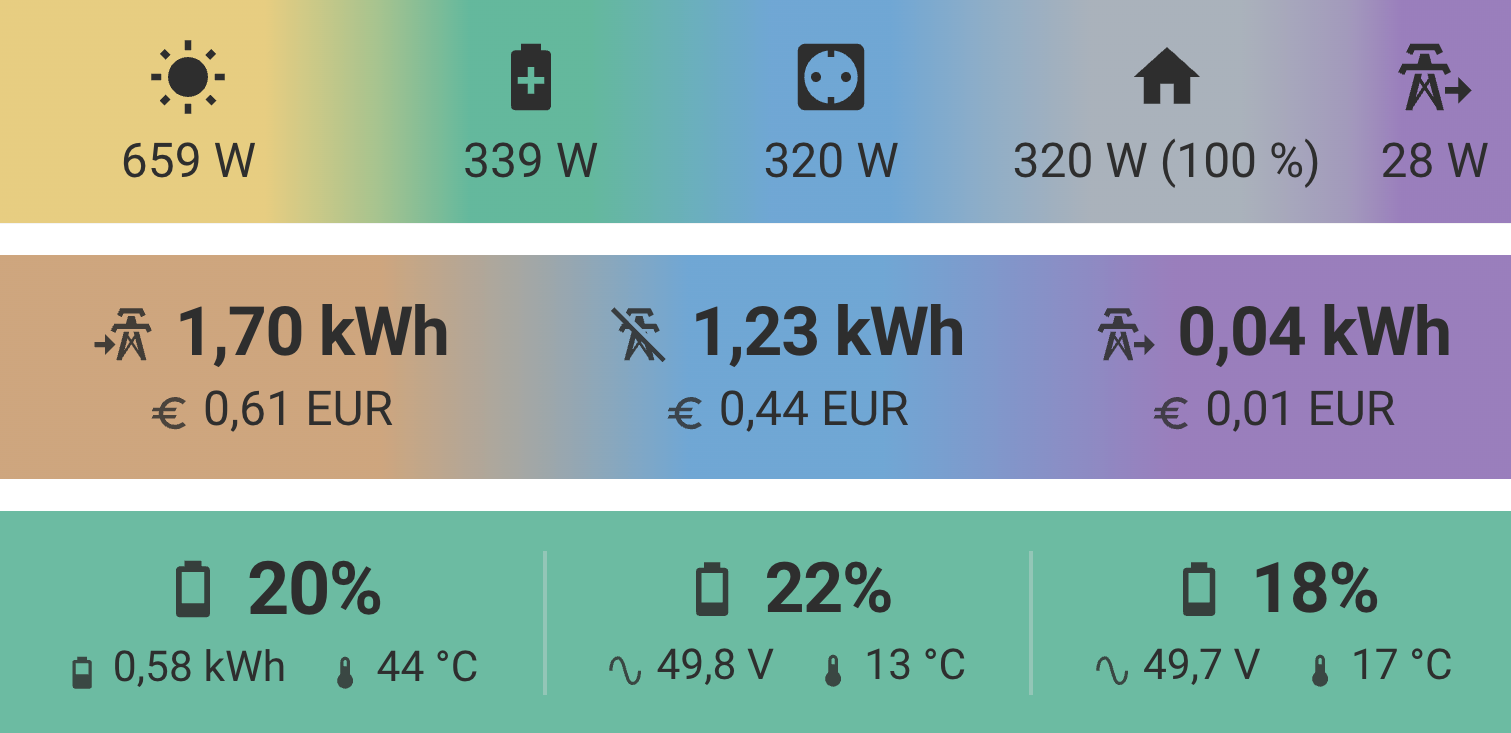

PowerFlow Bar is designed to pair with Battery Bar and House Energy Bar when you want a compact 3-card energy stack.

For the complete setup, also see:

• Battery Bar for per-battery SoC, voltage, and temperature details.
• House Energy Bar for daily consumed/saved/returned totals.

Installation

HACS (Recommended)

• Add this repository via the link in Home Assistant.

• PowerFlow Bar should now be available in HACS. Click INSTALL.
• The Lovelace resource is usually added automatically.
• Reload the Home Assistant frontend if prompted.

HACS (manual)

1. Ensure HACS is installed.
2. Open HACS and add https://github.com/uwebaierl/powerflow_bar as a custom repository.
3. Select category Dashboard.
4. Search for PowerFlow Bar and install it.
5. Reload resources if prompted.

If HACS does not add the resource automatically, add this Dashboard resource manually:

url: /hacsfiles/powerflow_bar/powerflow_bar.js
type: module

Manual Installation

1. Download powerflow_bar.js from the Releases page.
2. Upload it to www/community/powerflow_bar/ in your Home Assistant config directory.
3. Add this resource in Dashboard configuration:

url: /local/community/powerflow_bar/powerflow_bar.js
type: module

Card YAML

type: custom:powerflow-bar
bar_height: 56
corner_radius: 28
row_gap: 0
order_mode: auto
color_preset: preset_1
# Optional: only set this when overriding the preset-driven track blend
track_blend: 0.15
fade_between_segments: false
spring_stiffness: 210
spring_damping: 26
value_tween_ms: 180
background_transparent: true
# Optional: add this block only when customizing segment visibility thresholds
hysteresis:
  pv:
    show_threshold: 0
    hide_threshold: 0
  battery:
    show_threshold: 0
    hide_threshold: 0
  battery_output:
    show_threshold: 0
    hide_threshold: 0
  grid_import:
    show_threshold: 0
    hide_threshold: 0
  grid_export:
    show_threshold: 0
    hide_threshold: 0
# Optional: add this block only when using manual color overrides
colors:
  energy_source: "#E6C86E"
  energy_storage_in: "#4CAF8E"
  energy_storage_out: "#2E8B75"
  energy_storage_supply: "#5B9BCF"
  home_load: "#9FA8B2"
  grid_import: "#C99A6A"
  grid_export: "#8C6BB3"
  background: "#000000"
  track: "#EAECEF"
  text_light: "#F4F7FA"
  text_dark: "#2E2E2E"
entities:
  pv: sensor.pv_w
  battery_charge: sensor.battery_charge_w
  battery_discharge: sensor.battery_discharge_w
  battery_output: sensor.battery_output_w
  home_consumption: sensor.home_consumption_w
  grid_import: sensor.grid_import_w
  grid_export: sensor.grid_export_w
  home_coverage: sensor.home_coverage_percent

Configuration options

Top-level options

Option	Type	Default	Notes
type	string	required	Must be custom:powerflow-bar
bar_height	number	56	Range: 24..72
corner_radius	number	28	Range: 0..30
row_gap	number	0	Range: 0..4
order_mode	string	auto	auto uses `PV
color_preset	string	preset_1	Global semantic preset baseline shared across all three cards
track_blend	number	preset-dependent	Range: 0.10..0.40; optional manual override for track/color mixing
fade_between_segments	boolean	false	If true, visible segments fade into neighboring colors; default is solid segment boundaries
spring_stiffness	number	210	Range: 80..420
spring_damping	number	26	Range: 10..60
value_tween_ms	number	180	Range: 150..250
background_transparent	boolean	true	If true, card background is transparent
hysteresis	object	optional	Per-segment hysteresis for pv, battery, battery_output, grid_import, and grid_export
colors	object	optional	Segment and card colors
entities	object	required	Sensor mapping

Required entities

Entity key	Required
entities.pv	yes
entities.home_consumption	yes
entities.grid_import	yes
entities.grid_export	yes

Battery/system requirement:

• Provide entities.battery_output
• Or provide both entities.battery_charge and entities.battery_discharge

Optional entities

Entity key	Purpose
entities.home_coverage	Optional suffix shown after home value if > 0
entities.battery_charge	Battery charging power
entities.battery_discharge	Battery discharging power

Color keys

energy_source, energy_storage_in, energy_storage_out, energy_storage_supply, home_load, grid_import, grid_export, background, track, text_light, text_dark

Color resolution priority for preset-controlled colors: selected color_preset < manual colors.* overrides.

The card picks whichever of text_light or text_dark gives better contrast for the active segment background. Legacy colors.text is still accepted and is migrated to both text tokens.

colors.background stays separate from presets and controls only the outer card background. In the visual editor it is only written to YAML when you explicitly set a non-default background override.

In the visual editor, fade_between_segments is always available in Colors, while Use custom color overrides turns manual semantic colors and track_blend on or off. Background stays independent in Layout & Motion, so changing the card background does not activate manual color overrides or block presets.

Preset styles: preset_1 Classic, preset_2 Industrial, preset_3 Coffee, preset_4 Ocean, preset_5 Forest.

Visible segment icons always come from the configured Home Assistant entities. There is no separate icon override block.

The card and visual editor no longer prefill entity ids.

Visibility keys

• hysteresis.pv.show_threshold / hysteresis.pv.hide_threshold
• hysteresis.battery.show_threshold / hysteresis.battery.hide_threshold
• hysteresis.battery_output.show_threshold / hysteresis.battery_output.hide_threshold
• hysteresis.grid_import.show_threshold / hysteresis.grid_import.hide_threshold
• hysteresis.grid_export.show_threshold / hysteresis.grid_export.hide_threshold

Defaults are 0 / 0, which means a segment becomes visible when its value is above 0 W. The battery hysteresis applies to the shared Battery segment that represents charge or discharge activity.

Notes

• Use instantaneous power sensors in W.
• Energy units (Wh, kWh, MWh, GWh) are rejected.
• Import and export are treated as mutually exclusive, so only one grid direction is active at a time.
• order_mode: auto uses dedicated Grid Import and Grid Export slots on opposite sides of Home. order_mode: fixed keeps both grid directions on the right side of Home.
• A missing, unavailable, or invalid sensor now affects only its own segment instead of collapsing the full card to an all-zero fallback.
