A3TG

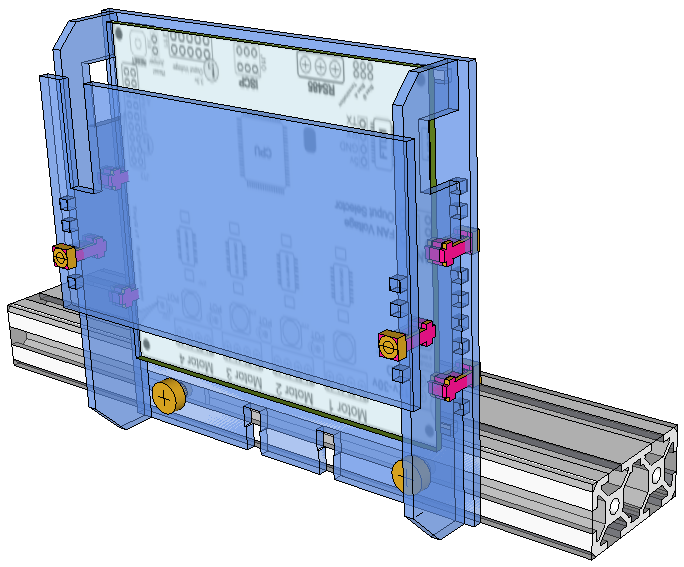

TinyG convective cooling case for M5 extrusions ...

Function

Protective case for TinyG board. Intended for vertical mounting to maximize cooling via convection. Includes strain relief for 5mm cable used in Lenovo laptop power adaptors.

Bill of Materials

NOTE: The current case does not fit the current TinyG board, which is not yet finalized. You may need to use cable ties to mount your TinyG.

@Sources

• Anti-static acrylic (1/8)

@Requires

• https://synthetos.myshopify.com/products/tinyg

See Also

• [Laser cut your own parts from anti-static acrylic] (https://github.com/firepick1/FirePick/blob/master/src/main/resources/svg/A3TG.svg)
